Pyle PMSA126BU - Speaker Connection Configurations; Two Speakers in Series and Parallel

www.PyleUSA.com
7

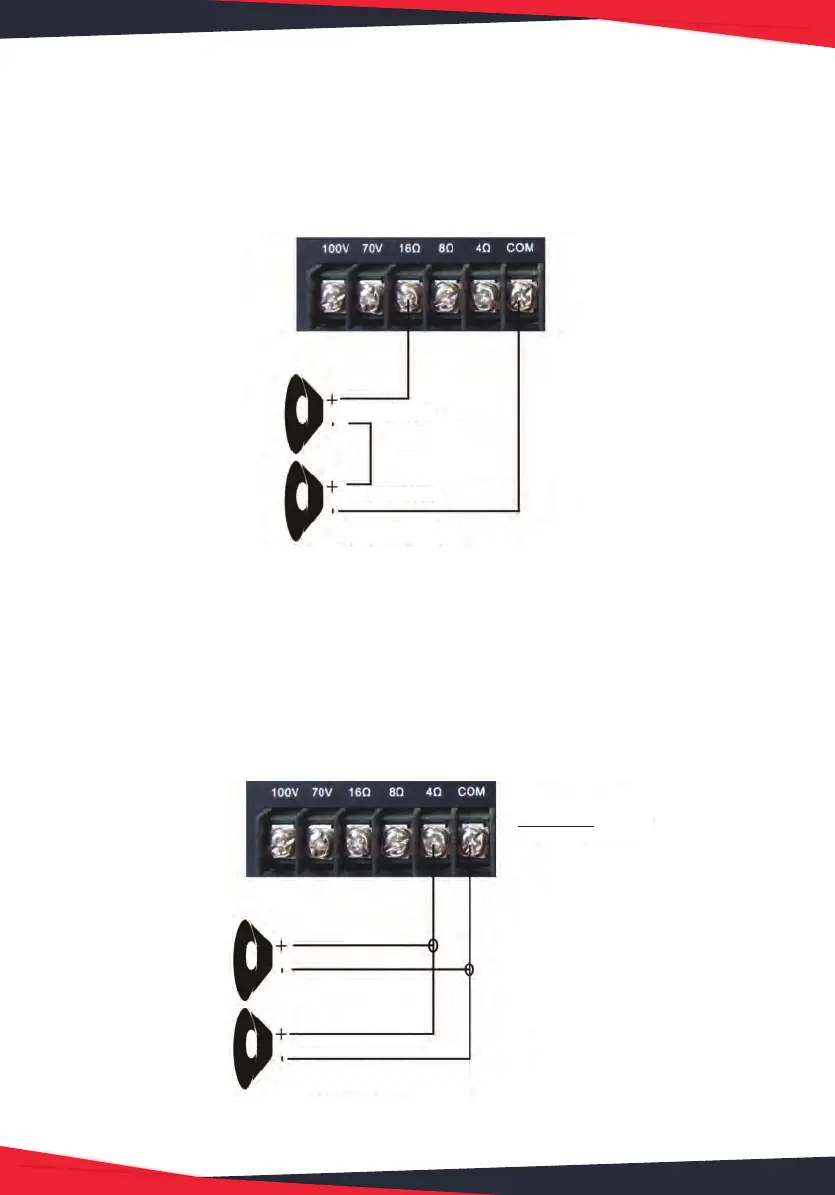

SYSTEM 2: Two (or more) Speakers in Series
NOTE: Connect the speaker (+) to the amplier’s 4-Ohm, 8-Ohm or 16 -Ohm
terminal, depending on the TOTAL IMPEDANCE of the two speakers.
If each speaker has an impedance of 8-Ohm, the total speaker impedance in this
series conguration is 16 ohms.
SYSTEM 3: Two (or more) Speakers in Parallel
NOTE: Connect the speaker (+) to the amplier’s 4-Ohm, 8-Ohm or 16 -Ohm
terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each
speaker has an impedance of 8-Ohm, the total speaker impedance in this series
conguration is 4 ohms.
Two 8 ohm speaker
LEFT SPEAKER
RIGHT SPEAKER
TWO SPEAKER S IN SERIES
8ohm
2 Speaker
= 4ohm
Two 8 ohm speaker
TWO SPEAKERS IN PARALLEL
