3. Connect the two pairs of speakers in PARALLEL. If you connect 8-ohm speakers,
the total impedance of both pairs is 8 ohms.
Note:
If each of the four speakers is 8 ohms, the total speaker impedance of the combined
series/parallel connection described above is also 8 ohms. Likewise, the total
speaker impedance is 4 or 16 ohms, if the speakers are 4 or 16 ohms respectively.
4. Connect the speakers' (-) terminals to the amplier's COMMON terminal.
5. Connect the speakers' (+) terminals to the amplier's 4-Ohm, 8-Ohm, or 16-Ohm
terminal, depending on the TOTAL IMPEDANCE of the FOUR SPEAKERS.

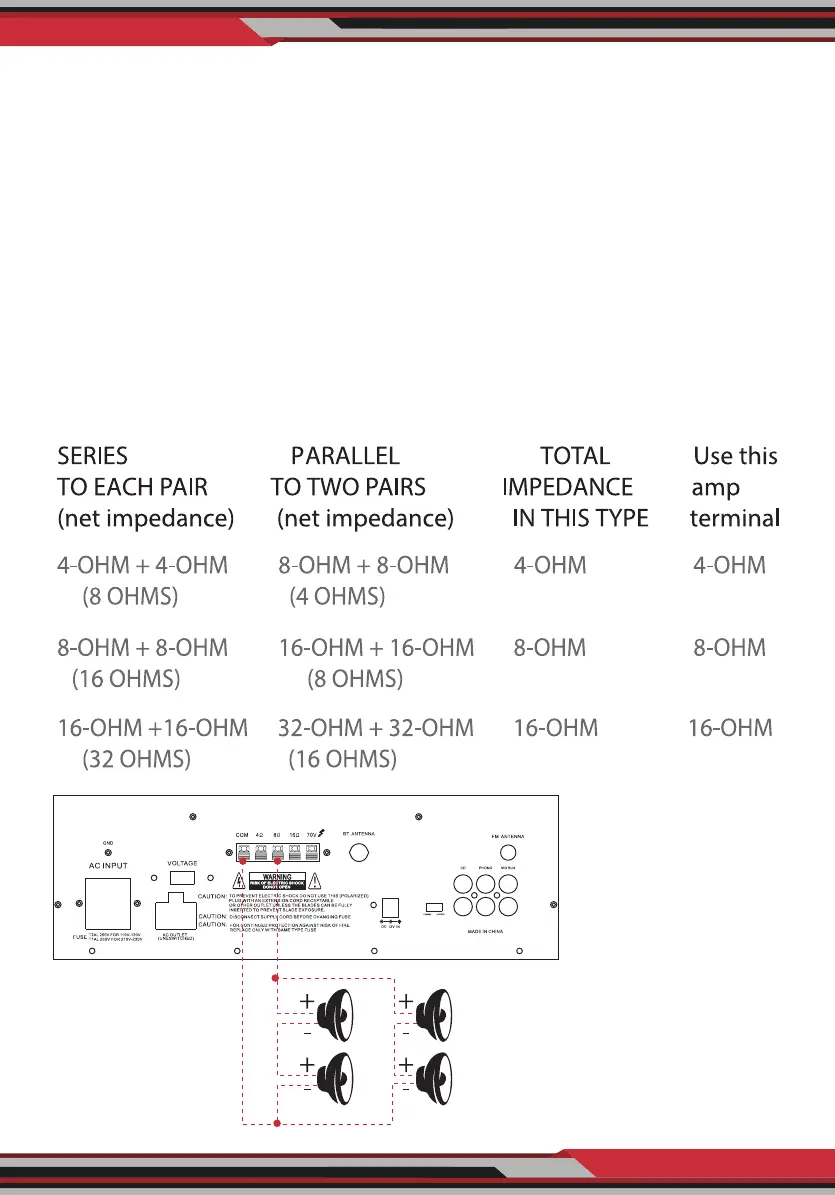

See the chart below for some samples system suggestions:
This example shows four 8 Ohm
Speakers, the total impedance is
8 ohms.
