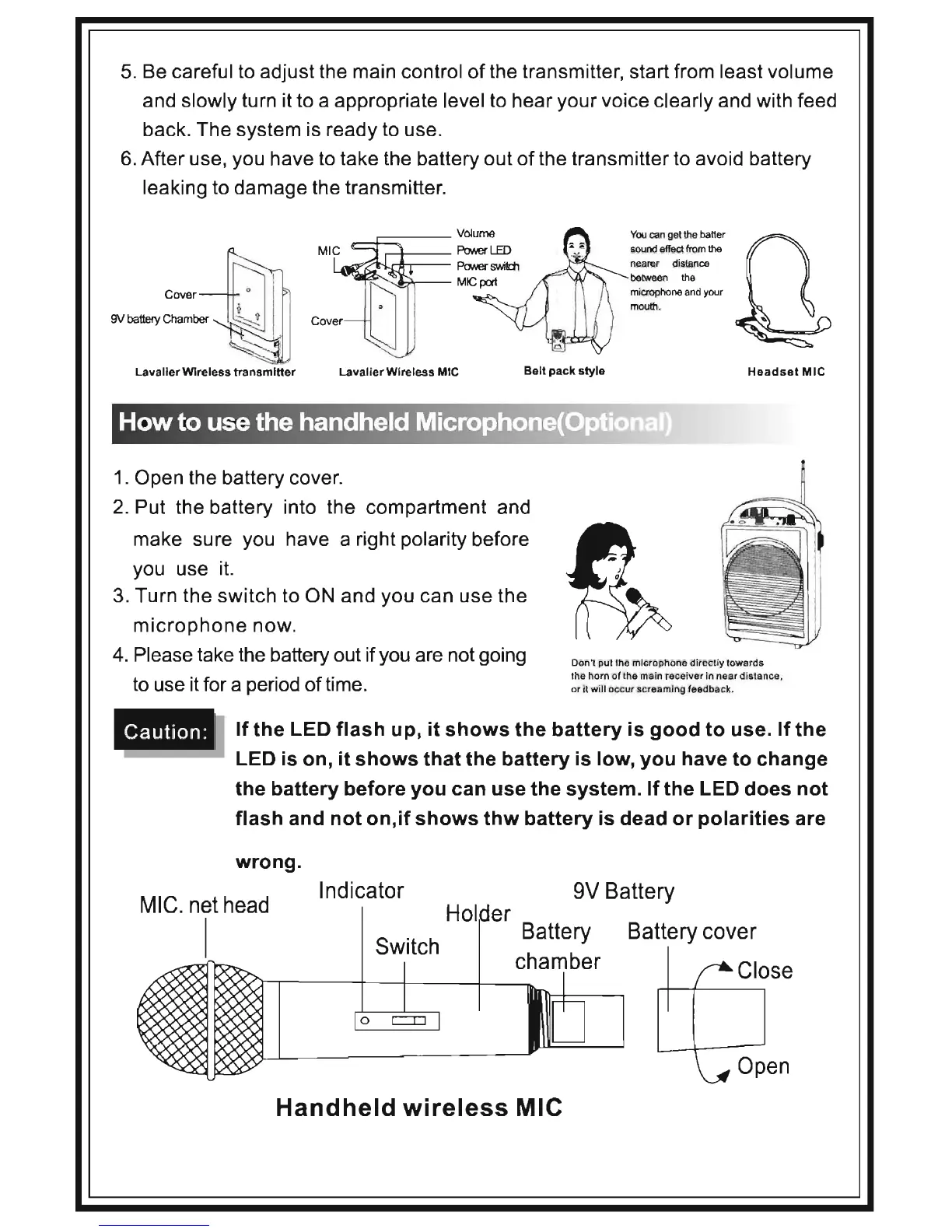

Pyle PWMA200 User Manual

5. Be careful to adjust the main control of the transmitter, start from least volume
and slowly turn it to a appropriate level to hear your voice clearly and with feed
back. The system is ready to use.
6. After use, you have to take the battery out of the transmitter to avoid battery
leaking to damage the transmitter.
~
VOI~me ..•. --~ YO" "'" ,etthe batte, U
MIG PoNerLED. ":~... sound effect from the
PoNer SVJilch nearer distance
MIC pat between the
microphone and your
o 'mouth.
Cover ~
cover4)0 ·
• i
9V batteIy Chamber ~ I
Lavalier Wireless transmitter Lavalier Wireless MIC
Belt pack style
Headset MIC
1 . Open the battery cover.
2. Put the battery into the compartment and
make sure you have a right polarity before
you use
it.
3. Turn the switch to ON and you can use the
microphone now.
4. Please take the battery out if you are not going
to use it for a period of time.
Don't putthe microphone directiy towards
the horn of the main receiver in near distance,
or it
will occur screaming feedback.
If the LED flash up, it shows the battery is good to use. If the
LED is on, it shows that the battery is low, you have to change
the battery before you can use the system. If the LED does not
flash and not on,if shows thw battery is dead or polarities are
wrong.
Indicator
9V Battery
MIC. net head
I
Hoi er
Ba~se
52-L ______ ....JJl="---' ~en
Battery
Switch
Handheld wireless MIC

Pyle PWMA200 Specifications

General

Type	Stage/performance microphone
Microphone in	Yes
Operating frequency	160 - 270 MHz
Connectivity technology	Wireless
Maximum operating distance	30 m
Operating voltage	12 V
Power consumption	1200 mA
Power supply type	DC
Depth (imperial)	4.3 \
Width (imperial)	7.1 \
Height (imperial)	11.8 \
Power requirements	12 V, 1.2A
Product color	Black
AC input voltage	110 V
AC input frequency	60 Hz
Weight	4400 g

Weight and Dimensions

Depth	109 mm
Width	180 mm
Height	300 mm
