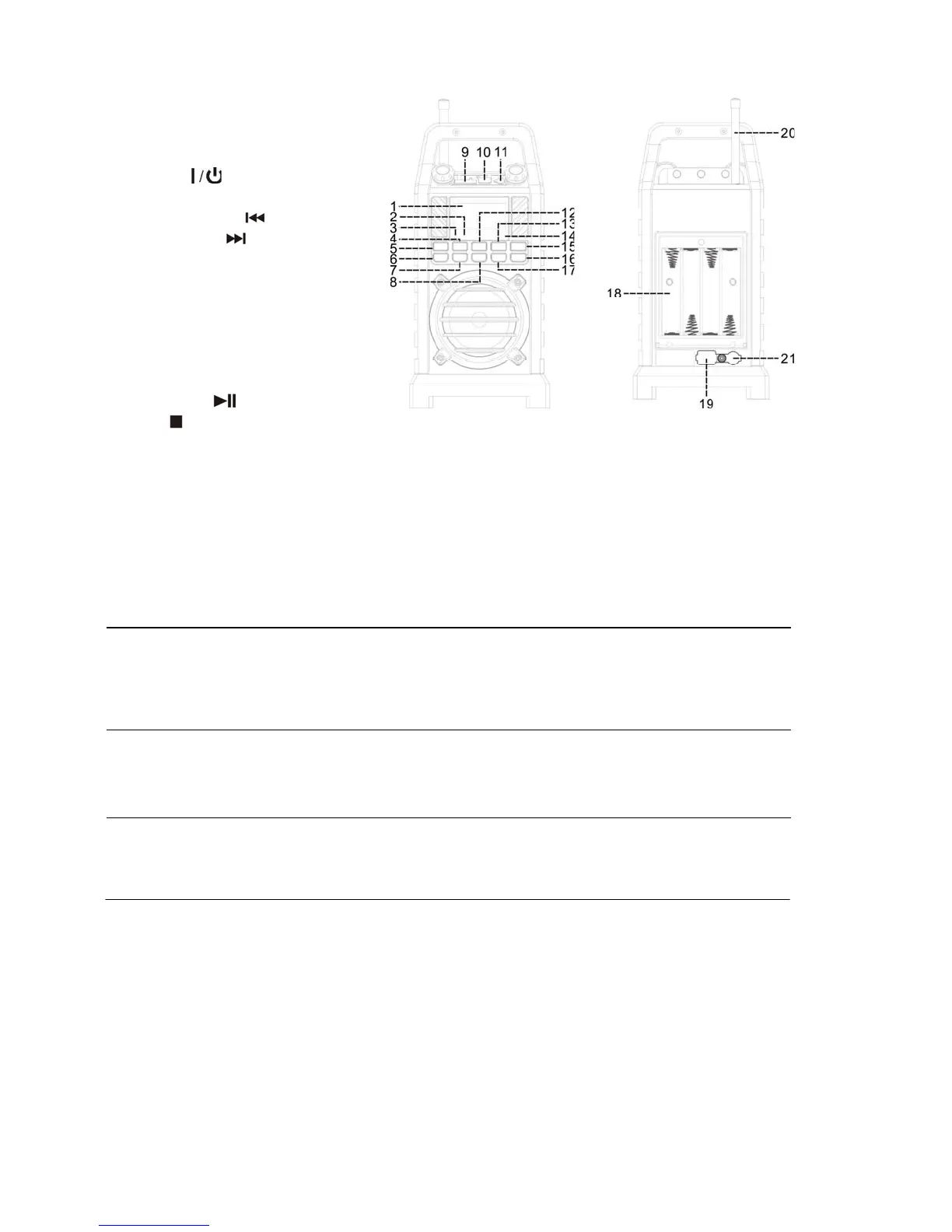

LOCATION OF CONTROLS
1) LCD display
2) Standby LED indicator
3) Internal battery charging indicator
4) Function button
5) On / Off
button
6) Repeat/random play button
7) Tune/Skip down
button
8) Tune/Skip up
button
9) SD card slot
10) USB socket
11) 3.5mm Aux-in jack
12) Pre up/+10/Pro button
13) Volume down
14) Bluetooth LED indicator
15) Volume up button
16) Play/pause
button
17) Stop
button
18) Battery compartment
19) Charging/Battery selector
20) FM wire antenna
21) DC in jack
Caution:
Usage of controls or adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service personnel.
Precautions for use
Installation
x Unpack all parts and remove protective material.
x Do not connect the unit to the mains before checking the main voltage and before all other connections have been
made.
x Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation.
AC connection
1. Connect the DC plug of AC/DC adaptor (included) to the DC jack (21) of the main unit. Then, connect the AC/DC
adaptor to the AC outlet. The Standby LED indicator (2) will light up.
2. Turn on the unit by On/Off (5). If the LCD display (1) is on with backlighting, it means the power supply is normal.
Now your system is ready to play the music.
DC connection (external battery)
For DC operation, please insert 8 pcs size C (UM-2) battery to the battery compartment (18) according to the indication in
battery compartment and remove the DC plug of AC/DC adaptor from the DC jack (21) and switch the Charging/Battery
selector (19) to ‘Ext’ position
Internal battery operation/charging
This device can be operated with built in rechargeable battery which can be charged during AC/DC adaptor plug in.
Please refer below operation.
1. Plug in the AC/DC adaptor and switch the Charging/Battery selector (19) at ‘ON’ position, device will operate by
AC/DC adaptor and charging the internal battery at the same time. The Internal charging indicator (3) will light up in
RED and will become GREEN once internal battery was fully charged.
2. If AC/DC adaptor did not plug in, unit will operate with DC, switch the Charging/Battery selector (19) to ‘EXT’ position
for ‘C’ size battery operation or ‘INT’ position for internal battery operation. When the internal battery runs to low level,
the low battery icon will show on LCD display. Please resume charging at this moment.
Remark : To avoid over charge the internal battery, please switch the Charging/Battery selector (19) to ‘OFF’ position
once the charging indictor show in GREEN.
Due to charging circuitry will affect to Tuner performance, please do not charging during in Tuner mode.
Charging feature only design for charge internal battery.
