19P1FL0801

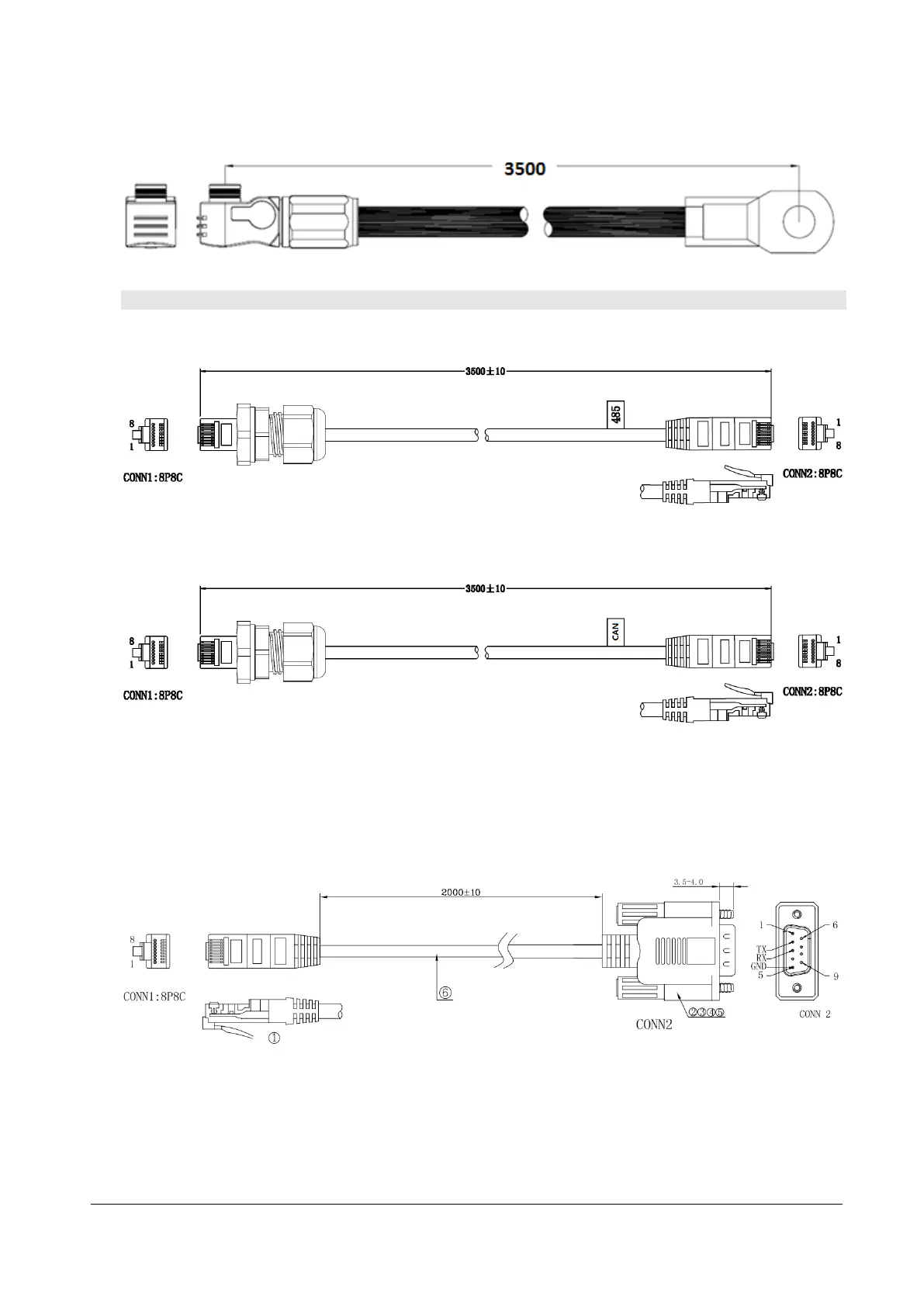

Communication Terminal (RS485 / CAN / RS232 / Link Port 0 / Link Port 1)
RS485 Communication Terminal: (RJ45 port) follow RS485 protocol, for communication between
battery system and inverter.
CAN Communication Terminal: (RJ45 port) follow CAN protocol, for communication between
battery system and inverter.
CAN Communication Terminal: (RJ45 port) follow CAN protocol,
Link port0/1 for communication between battery piles.
RS232 Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or
professional engineer to debug or service.
