4

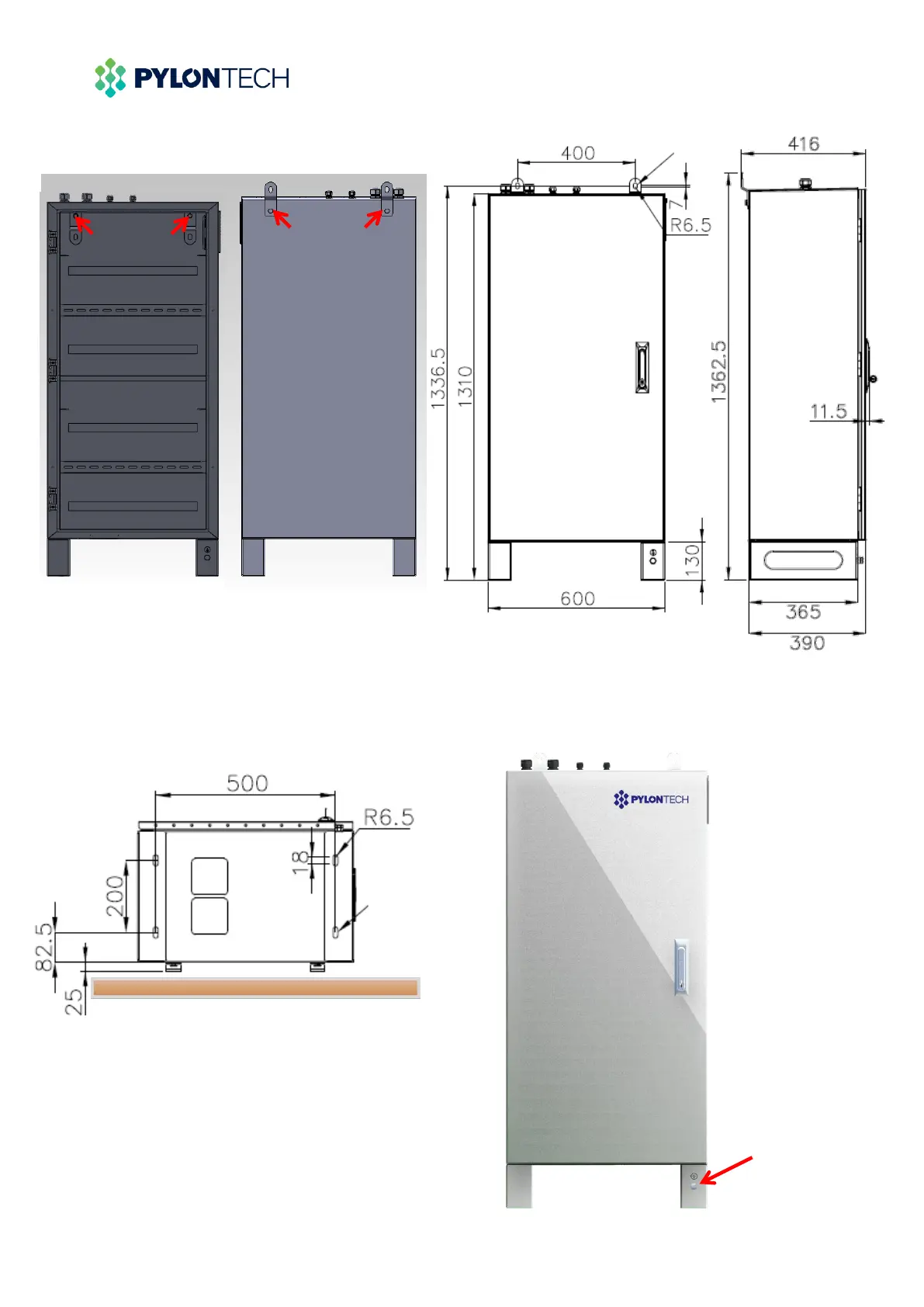

Fix with the hangers (recommend)
Move the 2 hangers from inside to outside.
M12
foundation
bolt
Or fix the cabinet with the cabinet feet.
M12
foundation
bolt
Connect the grounding cable from basement.
Grounding
Point
Wall
