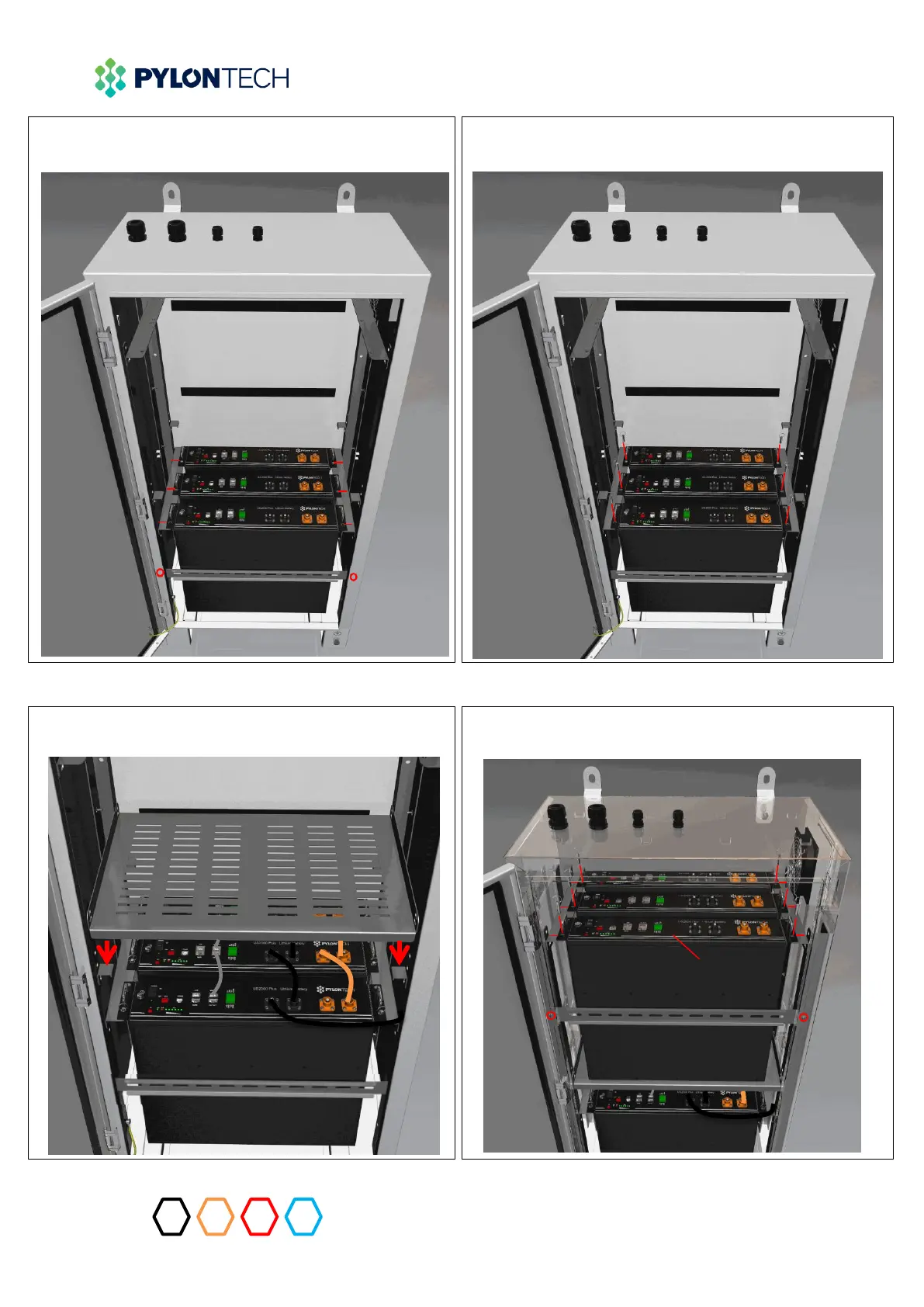

• Connect the cables of lower layer 3 batteries. Please see < Cabinet OD Cable Connection >.
Put the separate board on the 4 stop blocks. Install 3 batteries on the upper layer just like under layer.
And lock the blade bolt.
• Connect the cables of lower layer 3 batteries. Please see < Cabinet OD Cable Connection >.
• Connect the cable terminals to the inverter.
1 2 4 3
• Turn on each battery’s power switch.
• Press Master Battery’s soft start button. Please see the product menu (capital 4.2 B).
Lock the 6 dowels for these 3 batteries.
Take away the 4 shield sleeves on the rails. Put 3
batteries on the under layer. And lock the blade bolt.
Align the calibration and the battery’s hole.
Master Battery
