Pylontech US3000C Product Manual

9

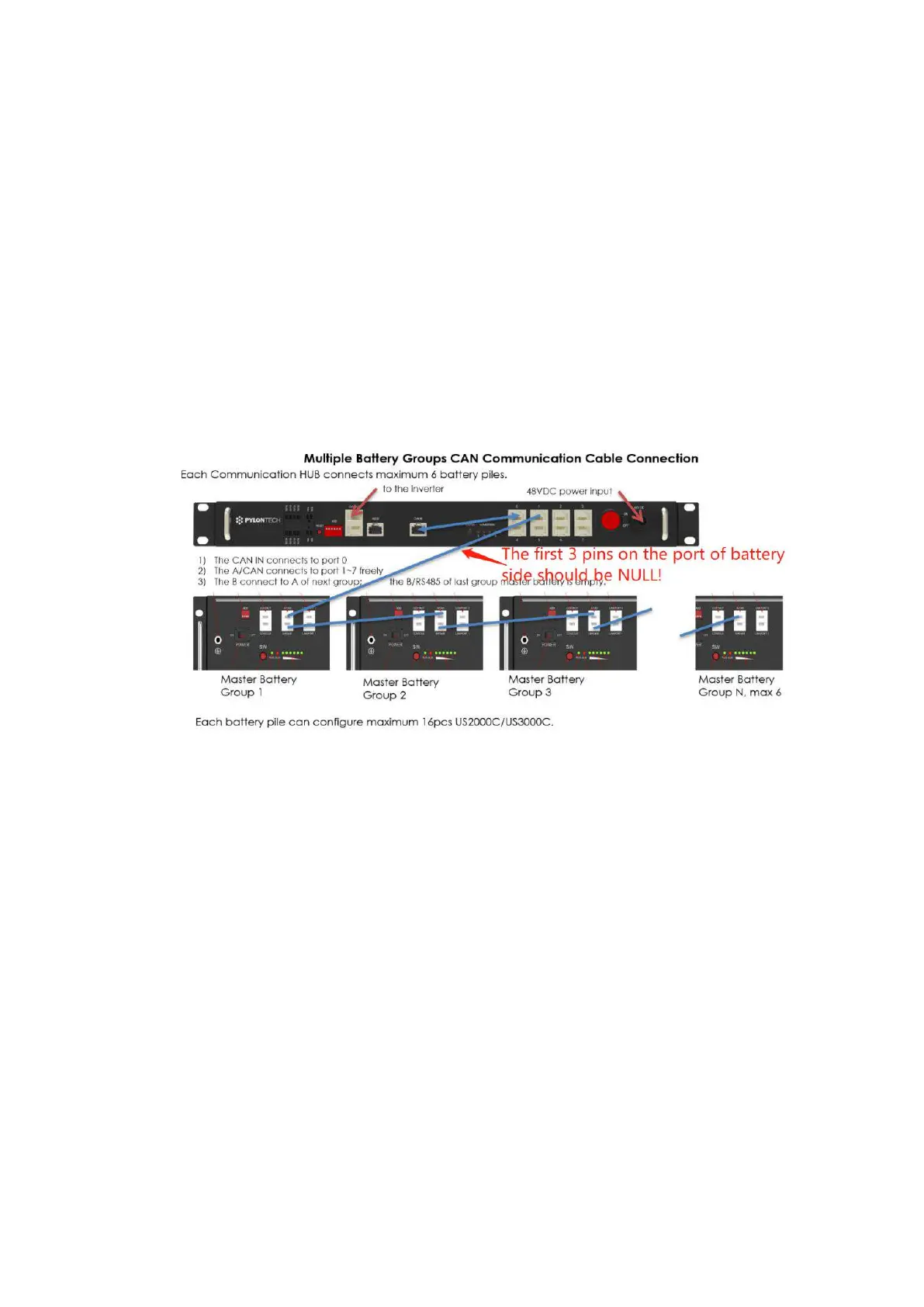

*Below communication cable shall be 8 pin direct-pin cable:
a. Between battery modules
b. Between LV-HUB Port 0 to LV-HUB CAN IN
*Below communication cable shall has first 3 pin NULL or use WI0SCAN30RJ1 cable inside external cable
kits:
a. Between Group 1 Master Battery A/CAN to LV-HUB Port 1.
Note: When using US2000C/US3000C/UP5000/US5000, the multiple group connection under RS485
communication DONOT require a LV-HUB. The wiring diagram please refer to the corresponding
battery model operation manual.

Pylontech US3000C Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	48V
Capacity	74Ah
Discharge Current (Recommended)	37A
Discharge Current (Maximum)	74A
Communication	CAN, RS485
Cycle Life	6000 Cycles @ 25°C
Operating Temperature	-10°C to 50°C
Scalability	Up to 16 units in parallel
Certification	CE, UN38.3
