AUTO TOTALING TIME CLOCK INSTRUCTIONS
Model 5000
+
/5000
+
HD
SET EVENT USING BUZZER/BELLS
Add up to 15 bells and/or horns & schedule up to 50 events using Pyramid Time System’s
TimeTrax™ Model 5300 Bell Ringer (sold separately).
The time clock has an internal buzzer & bell ringer interface option to alert workers (or
students) of start times, breaks, lunch and dismissal times. The internal buzzer will also
sound when the time clock sends a BCD signal to ring a bell.
Locate volume dial inside front cover to
left of display.
Turn dial clockwise to increase volume &
counterclockwise to decrease. NOTE:
Buzzer is intended for use in quiet
settings.
Sound the buzzer by scheduling an event
(See Event Menu on page 8).

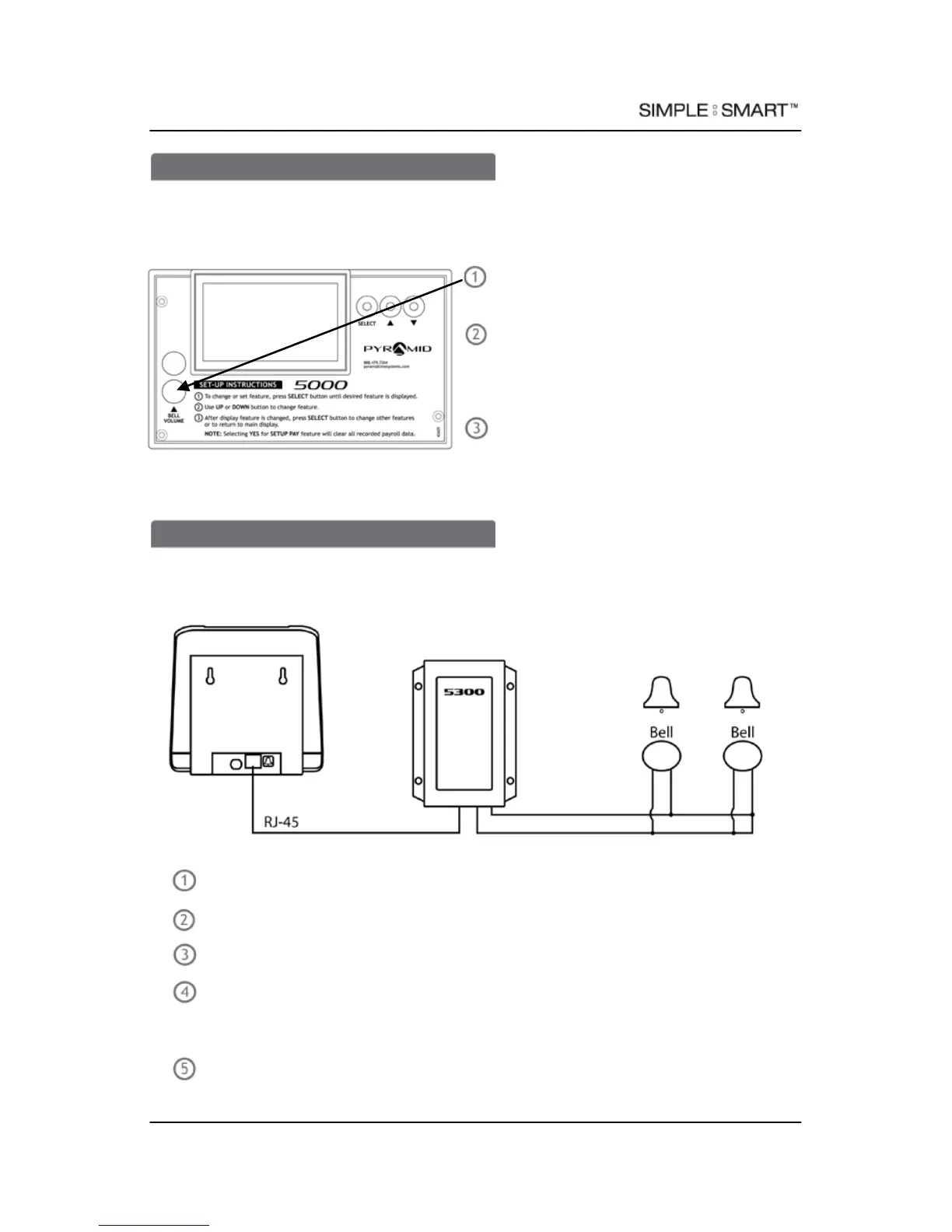

CONNECTING EXTERNAL BELLS
Locate RJ-45 jack at back
of time clock & connect cable.
Connect other end of cable to Pyramid Time System TimeTrax™ 5300 Bell Ringer.
Connect 5300 transformer to receptacle labeled POWER.
Wire bells and/or horns in parallel to labeled terminals on the 5300. See
Pyramid Time Systems TimeTrax™ 5300 Instructions for detailed installation
instructions
Sound bell or horn by scheduling an event (see page 8)
