Pyramid PB1045X - 4-Channel High Level Input Connections; 4 CH Floating Ground Wiring; 4 CH Common Ground Wiring

1 9
pb645X
pb845X
pb1045X
pb1845X
high level input connections
4 ch amp PB645X • PB845X • PB1045X• PB1845X
CH 1/2

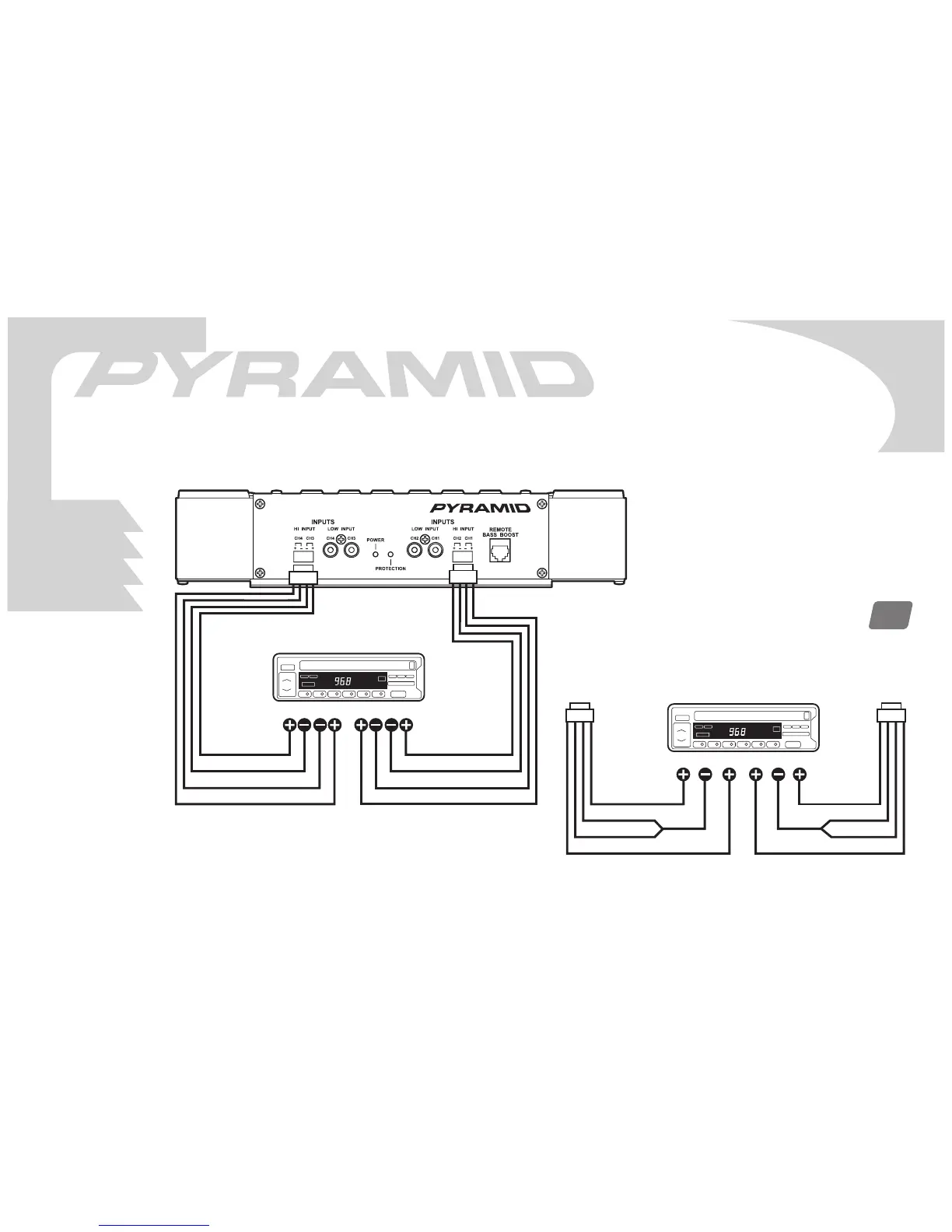

4 CH floating ground connections
4 CH harness wiring for common ground connections
from speaker terminals
LRFRONT L R REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK
BLACK
BLACK
from speaker terminals
LRFRONT RL REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK
BLACK
BLACK
CH 3/4
PLEASE NOTE! If using high level
inputs, do not use the low level
RCA inputs at the same time!
