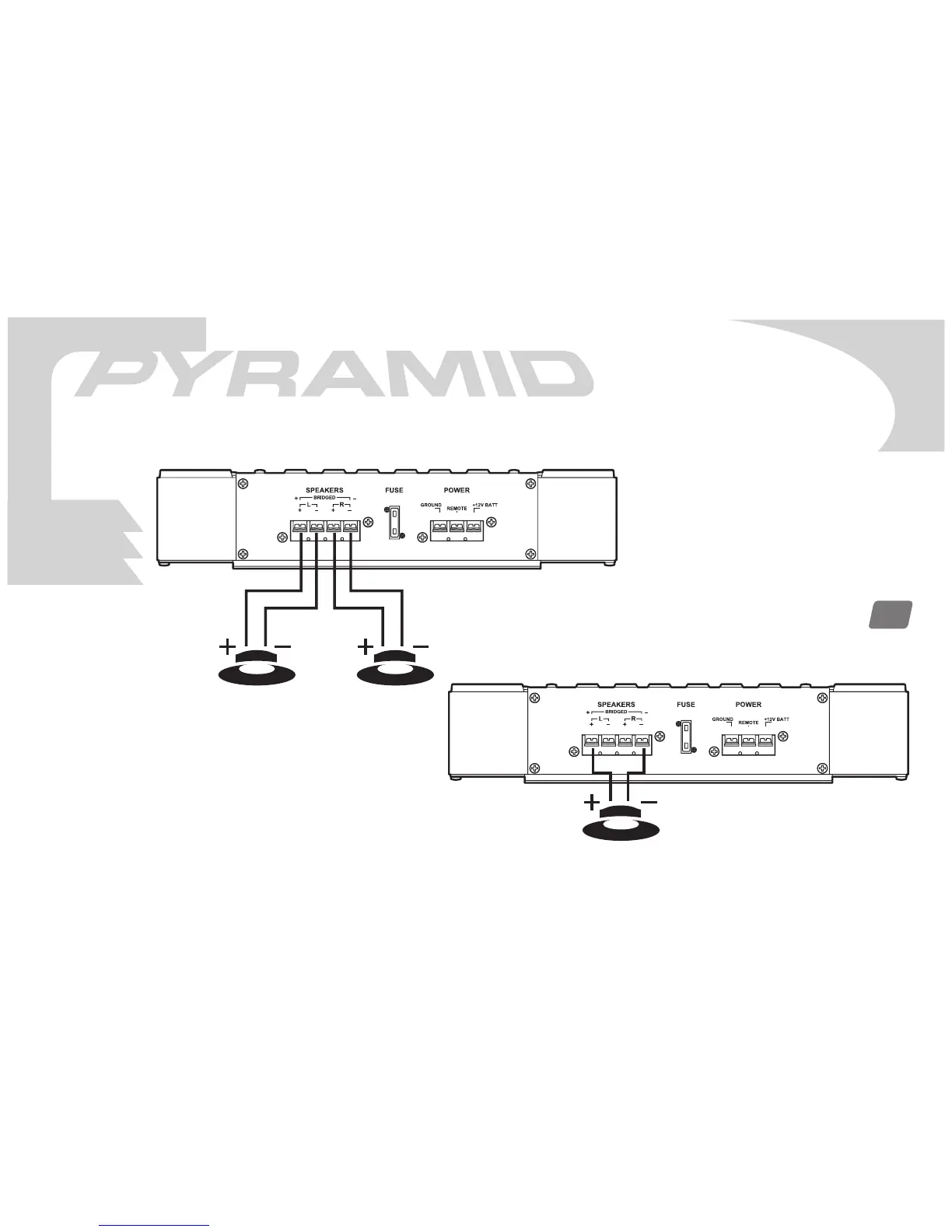

speaker connections
2 ch amp PB445X • PB545X • PB945X
pb445X
pb545X
pb945X
Stereo Output Mode
Bridged Mono Output Mode
LEFT speaker
RIGHT speaker
speaker
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
