Pyramid PB444X - 2;4 Channel Input Connections (PB448 X)

hi level input connections2/4 channel input connections
4 ch amp PB448X
14
owner’s manual

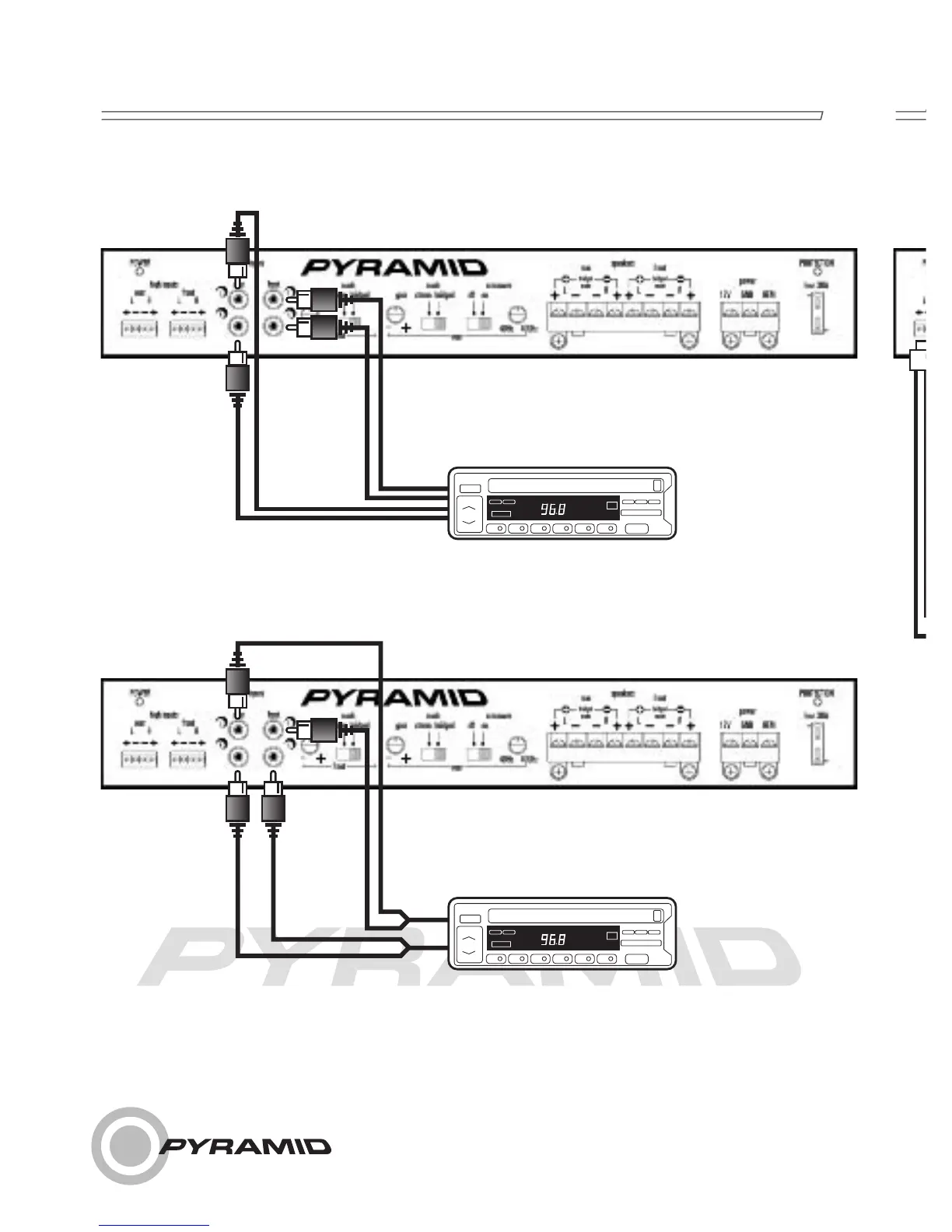

4CHinput connections
using
low level inputs
2CH
input connections
using low level inputs
4
4
for
L/R rear
audio outputs
head unit
PLEASE NOTE! If using
high level inputs, do not
use the low level RCA
inputs at the same time!
left output
L/R front
audio outputs
head unit
Y adaptors
right output
