Q'STRAINT QRT-1 Series Use And Care Manual

12

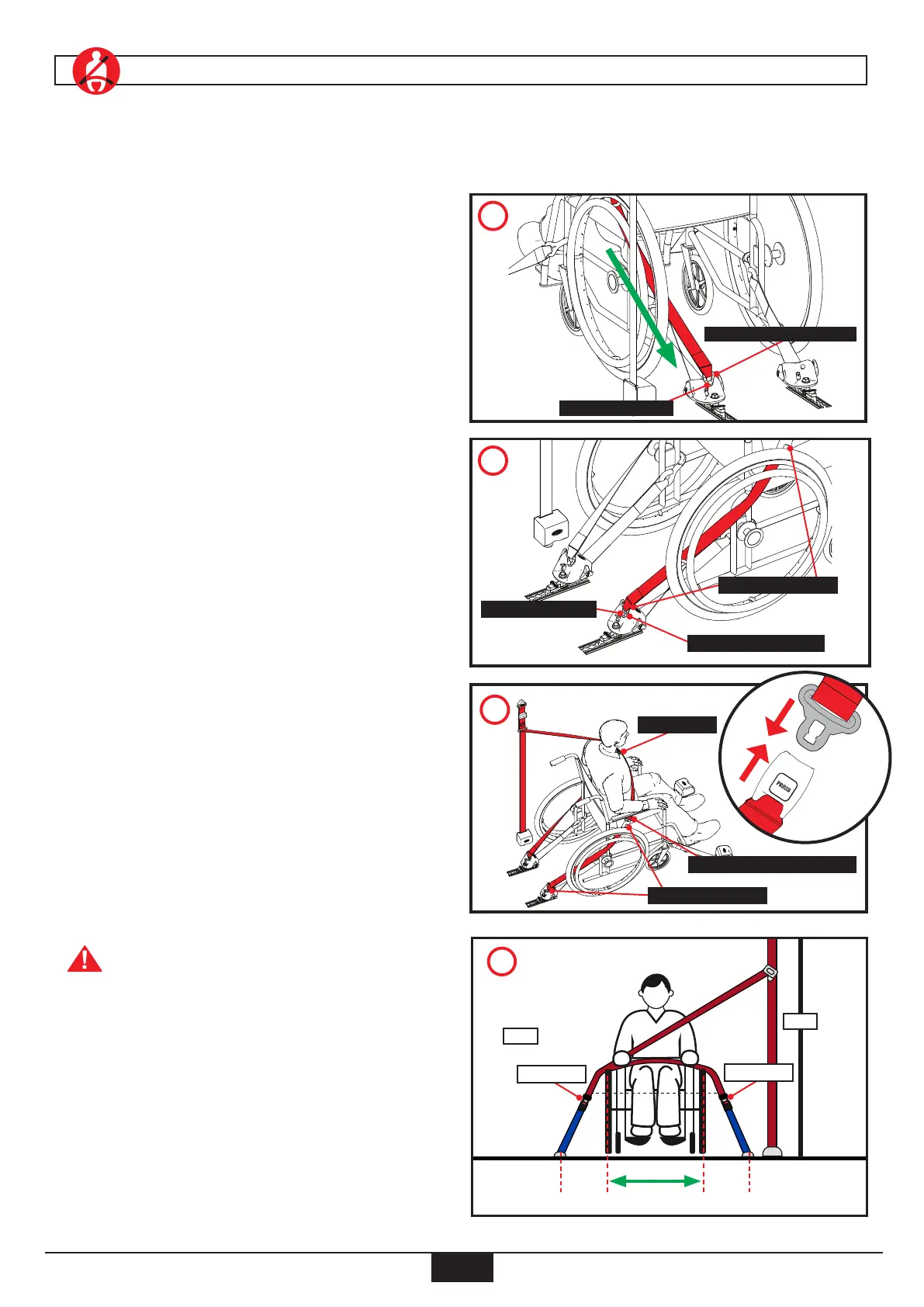

SECURING PASSENGER
M
N
O
RETRACTABLE COMBINATION LAP/SHOULDER BELT
SYSTEMS
11. Attach Shoulder belt Pin Connector to Pin on Rear
Retractor closest to the Wall (M)
12. Attach remoevable pelvic belt to pin on rear retractor
closest to the aisle (N).
13. Pull the Shoulder Belt over occupant’s chest and
buckle Shoulder Belt Pelvic Connector to Removable
Pelvic Belt (O).
Go to step 19.
RETRACTABLE COMBINATION LAP/SHOULDER
BELT SYSTEMS WITH K12 BUCKLE STALKS
14. Attach tongue (2) on end of shoulder belt to Buckle Stalk
closest to the Wall (P)
15. Pull the Shoulder belt over Occupant chest and insert
tongue (1) into the Buckle stalk closest to the Aisle.
Go to step 19.
Pin on Rear Retractor
Shoulder Belt Pin Connector
Removable Pelvic Belt
Pelvic Belt Pin Connector
Pin on Rear Retractor
Shoulder Belt
Removable Pelvic Belt
Shoulder Belt Pelvic Connector
RETRACTABLE COMBINATION LAP/SHOULDER BELT SYSTEMS- Steps 11+
RETRACTABLE COMBINATION LAP/SHOULDER BELT SYSTEMS with BUCKLE STALKS - Steps 14+
SEPARATE SHOULDER AND PELVIC BELTS – Steps 16+
P
AISLE
WALL
TONGUE 1
Wheelchair Width
0-25mm 0-25mm
TONGUE 2
