Manual for Advance 6T series
Award BIOS Description
PC Health Status

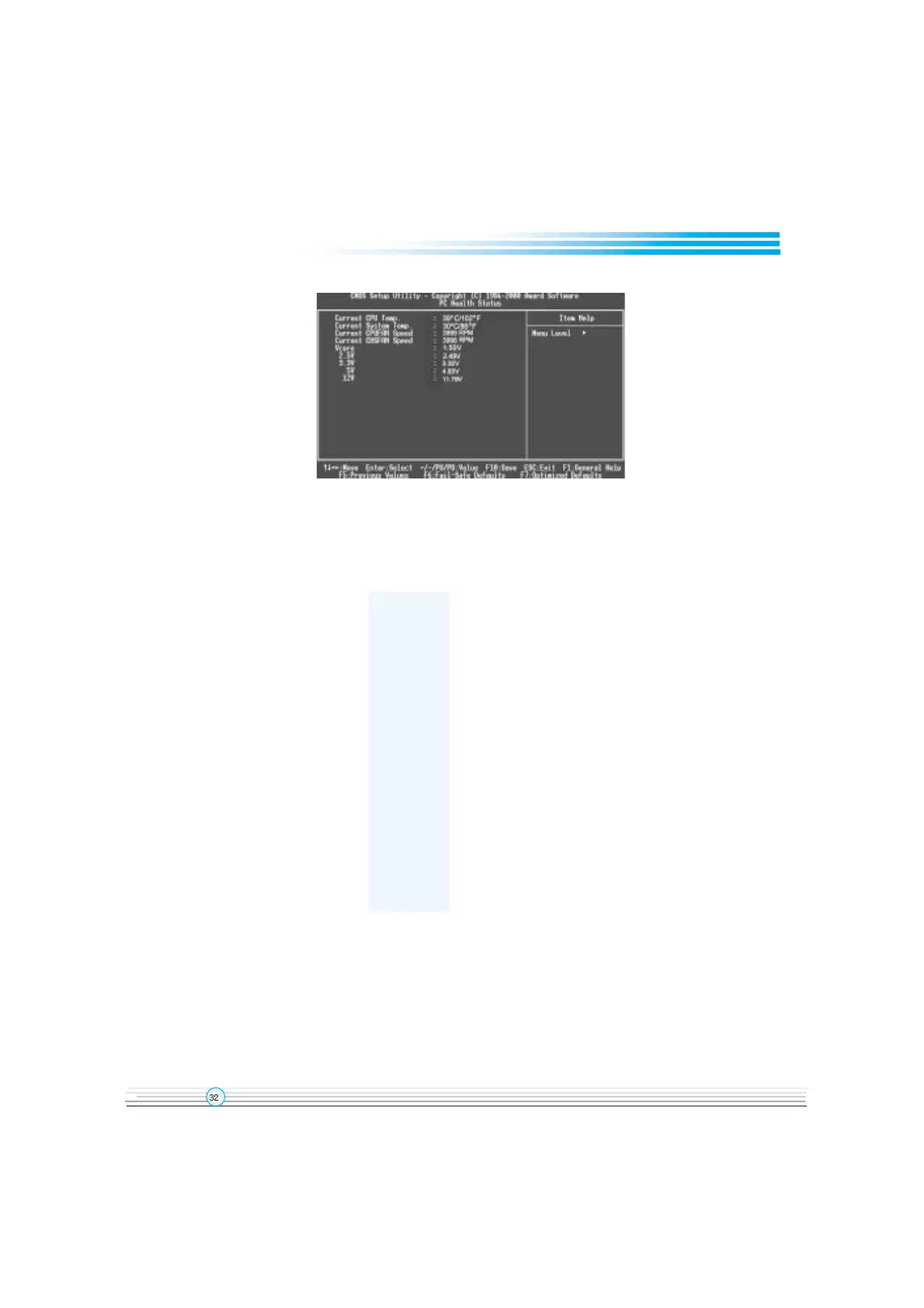

Figure-8 PC Health Status Menu
The following describes the meaning of each item.
Item Current Description
Data Shown
# Current CPU Temp. 39
C/102
F Temperature of the CPU.
# Current System Temp. 30
C/ 86
F Temperature inside the chassis.
# Current CPUFAN Speed 3999RPM Speed of fan(RPM:Revolution Per Minute)
connected to the fan header CPUFAN or
# Current CHSFAN Speed 3998RPM CHSFAN. Fan speed value is based on an
assumption that tachometer signal is two
pulses per revolution. In other cases, you
should regard it relatively.
#" Vcore 1.50V Displays current Voltage values including all
2.5V 2.49V significant voltages of the mainboard. +3.3V,
3.3V 3.32V +12V and 5V are voltages from the
5V 4.83V ATX power supply. Vcore Voltage is the
12V 11.79V CPU core voltage from the onboard switching
power supply.
