5. PRODUCT INTERFACE
5.1. Interface Function Description

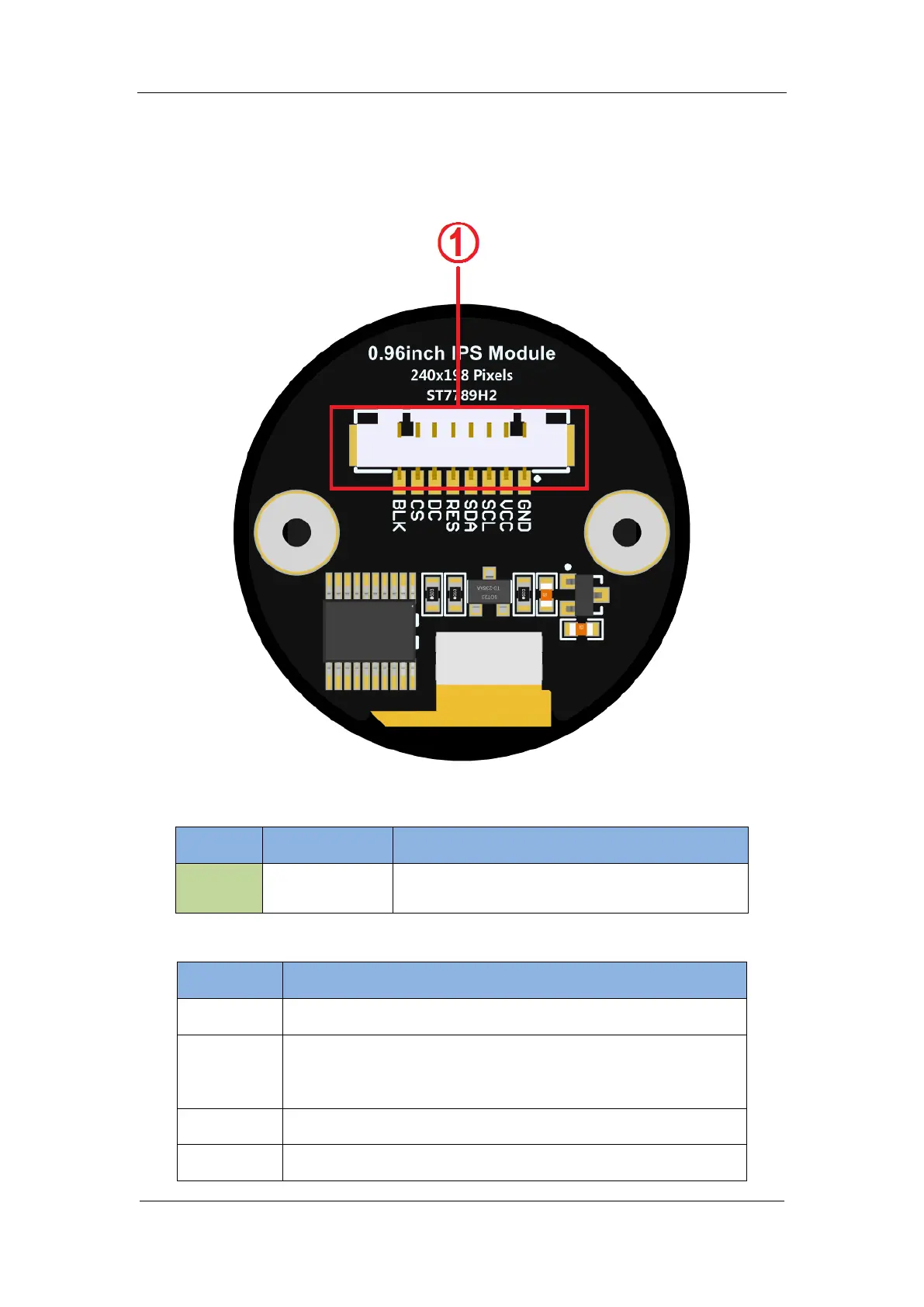

Picture 6 Product Interface
Number
Interface
Function Description
①
8P slot
1.25mm spacing slot, module signal input pins
5.2. Pin Function Description
Module Pin
Pin Function Description
GND
LCD Power ground
VCC
LCD power positive(It is recommended to connect to 5V.
When connected to 3.3V, the backlight brightness will be
slightly dim)
SCL
LCD SPI bus clock signal
SDA
LCD SPI bus write data signal
