2.1 Wiring of the control box
The following figure shows the wiring diagram of the whole system. The system wiring
can refer to the schematic diagram and refer to the relevant chapter for detailed
interface definition.

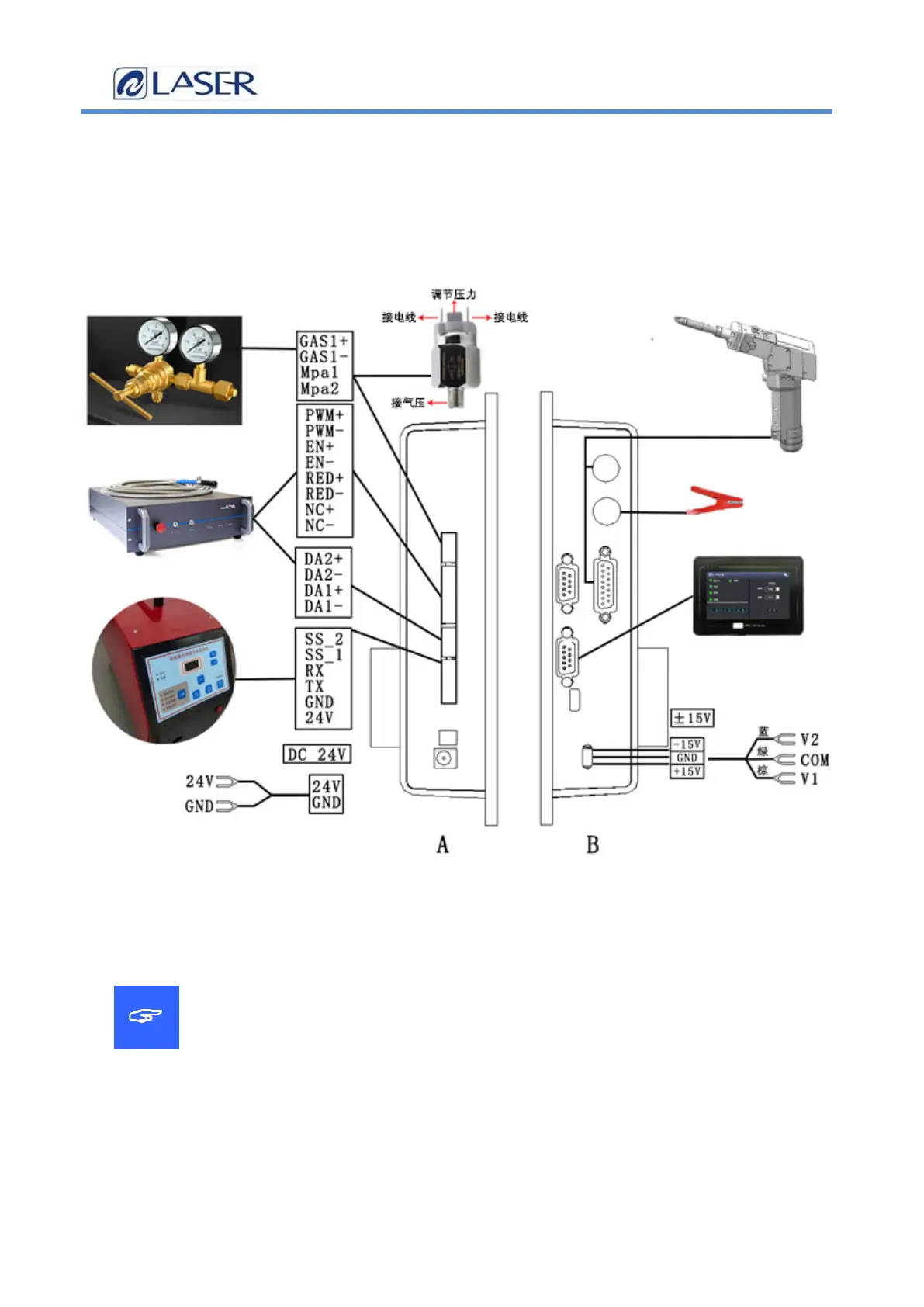

Figure 2.1 Schematic diagram of the system wiring
important:
Do not connect any instructions in the control box to other lines.
