BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
117/24
3 V2
Power supply input is
negative for 15V
-15 External power supply
input, external power supply
output
The current is
greater than 2A
The DC24V interface is the interface that provides the power supply for the
internal control system of the control box. The DC voltage is 24V (DC24V)
Table 2.32 defines the wiring of the POWER 2 power cord.

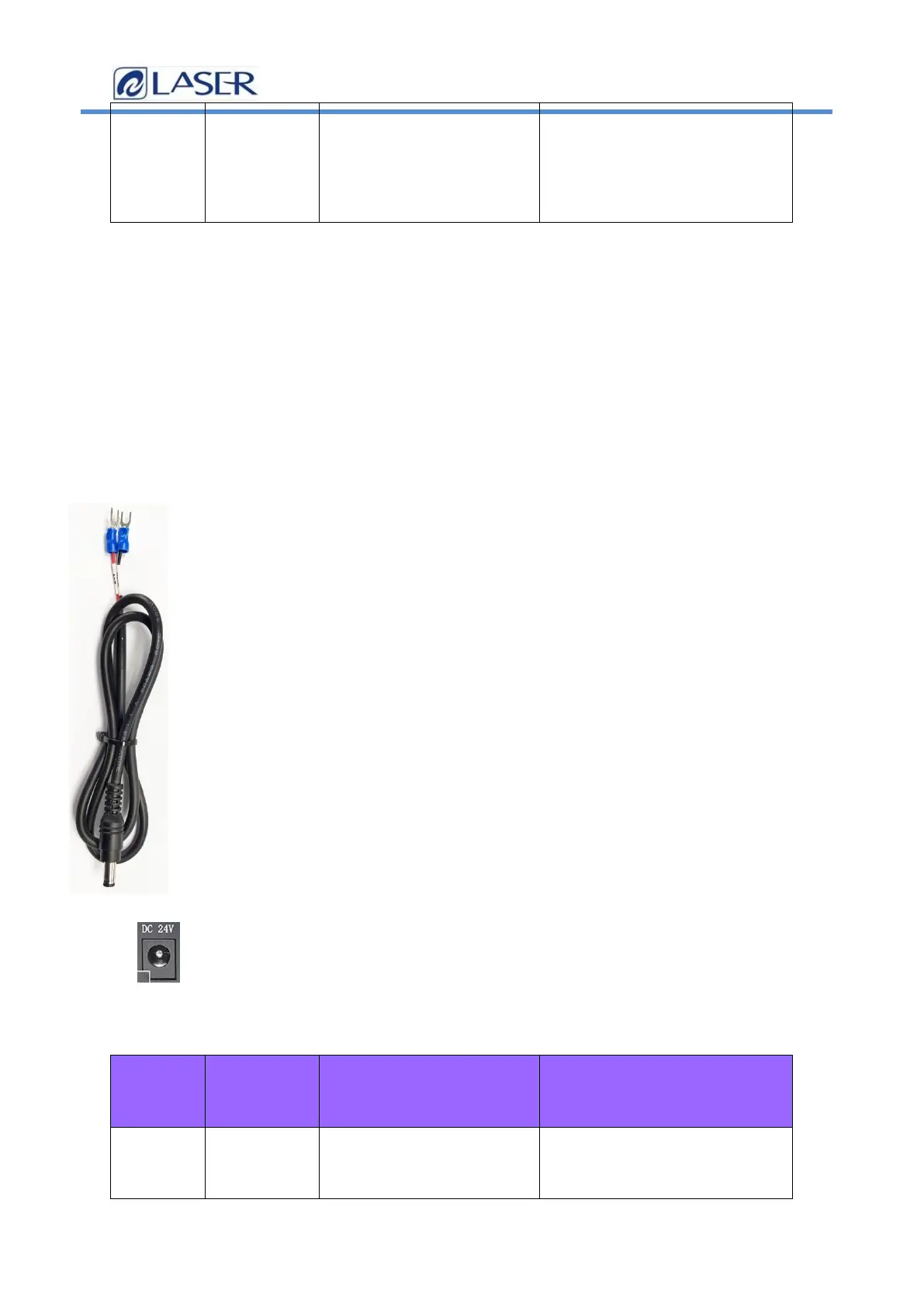

Figure 2.32 shows the schematic diagram of the POWER 2 power supply line
Table 2.32 shows the definition of the + 24V interface power line
Table 2.32
pin signal defi
niti
on
expl
ain
1 24V power input
+ 24V external power supply
input, the output power
requirements of the power
