Qilin Laser Application Technology BWT20 - Interface Settings and Controls; Light Output Mode Settings

BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
26

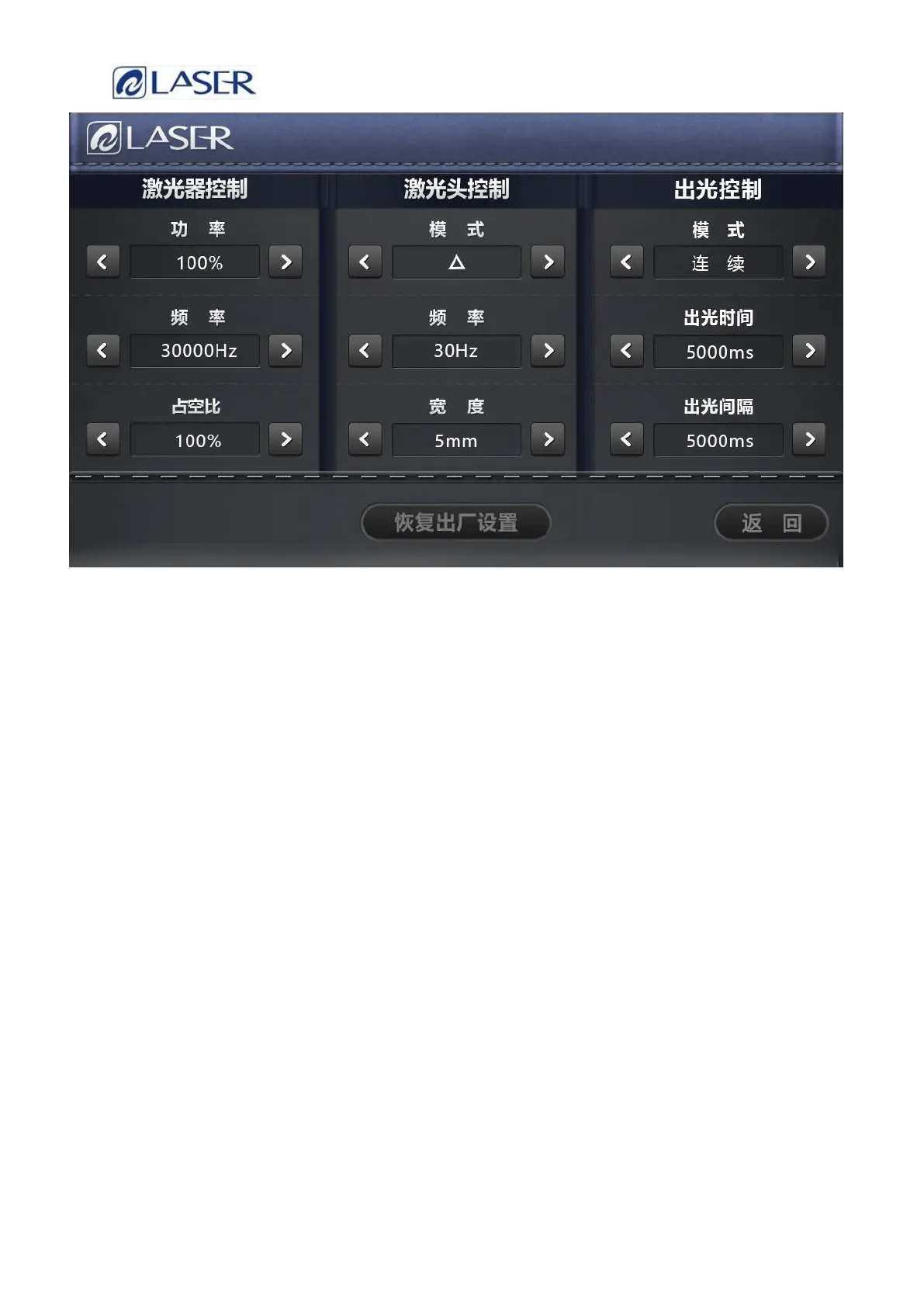

Schematic diagram of editing the main interface
Laser control:
Power: Set the peak power of the laser at
welding.
PWM frequency: Set the frequency of the
laser PWM modulation signal. Duty cycle:
Set the pulse width of the laser PWM
modulation signal.
Laser head control:
Mode: Set the motor swing mode.
Frequency: Set the speed of
the motor to swing.
Width: Set the width of the
motor to swing.
Out-of-light control:
Mode: Continuous light out
mode and pulsed light out mode.
