Multiple Chassis Fabrics
59265-02 B 2-9

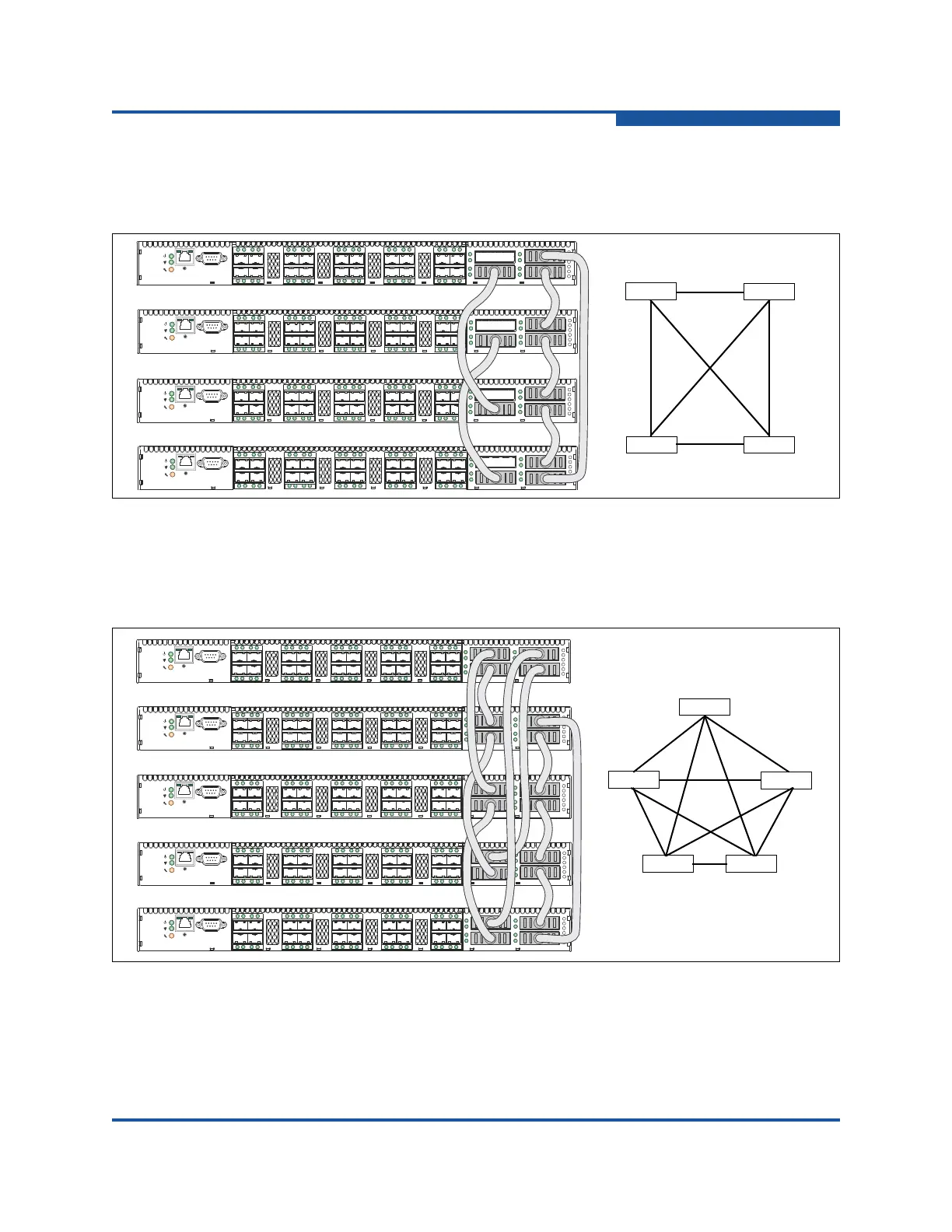

Figure 2-3 shows a four-switch stack of model 5800V Series switches using three
3-inch and three 9-inch XPAK switch stacking cables. Eighty SFP ports are
available for devices.
Figure 2-3. Four-Switch Stack
Figure 2-4 shows a five-switch stack of model 5800V Series switches using four
3-inch and six 9-inch XPAK switch stacking cables. One hundred SFP ports are
available for devices.
Figure 2-4. Five-Switch Stack
