3 – Planning
Multiple Chassis Fabrics
3-10 59096-04 A
S
Figure 3-3 shows a four-switch stack of model 5000 switches using three 3-inch
and three 9-inch XPAK switch stacking cables. 64 1/2/4-Gbps ports are available
for devices.

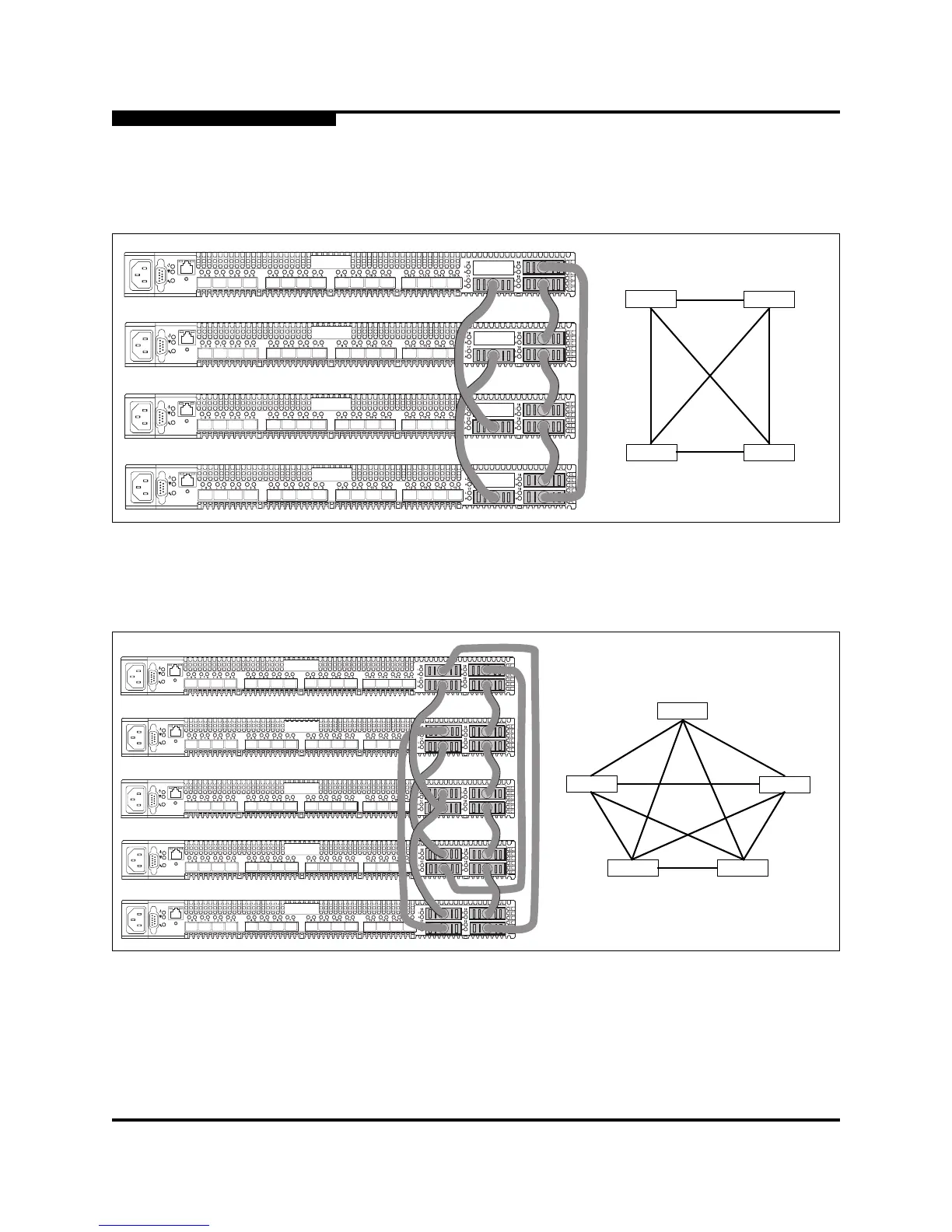

Figure 3-3. Four-Switch Stack
Figure 3-4 shows a five-switch stack of model 5000 switches using ten XPAK
switch stacking cables. Eighty 1/2/4-Gbps ports are available for devices.
Figure 3-4. Five Switch Stack
