3 – Planning
Multiple Chassis Fabrics
3-14 59096-04 A
S
3.5.4.3
MultiStage Topology
Each link contributes up to 425 MB of bandwidth between chassis.
Competition for this bandwidth is less than that of a cascade topology, but
greater than that of the mesh topology.
Latency between any two ports is no more than two chassis hops.
52 1/2/4-Gbps Fibre Channel ports are available for devices.

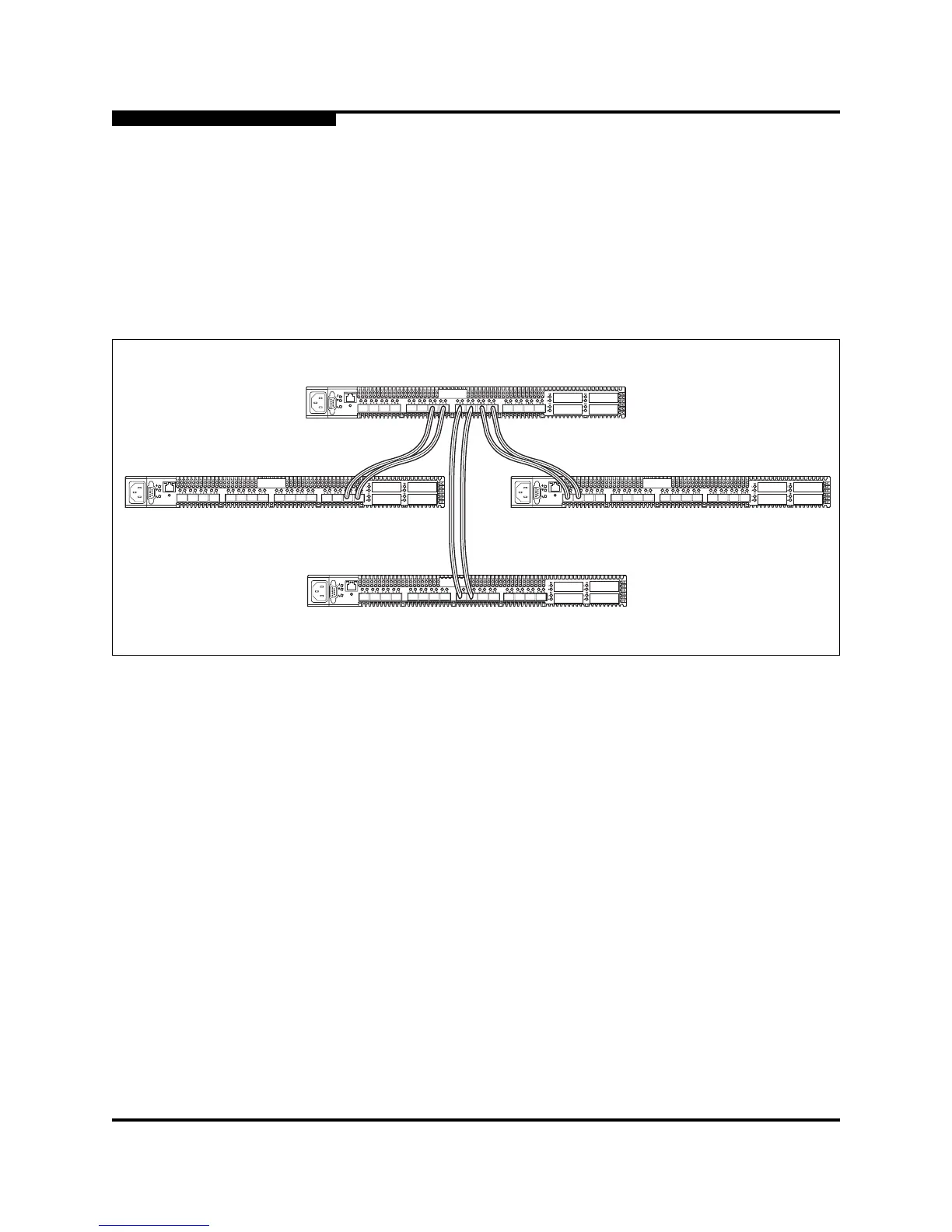

Figure 3-8. Multistage Topology
Edge Switch
Edge Switch Edge Switch
Core Switch
To Next Page
