2.2.1 QM_Spartan-7 3.3V Power Supply
The development board’s 3.3V power supply is using high efficiency DC/DC chip MP2359 provided by MPS
Inc. The MP2359 supports wide voltage input range from 4.5V to 24V. In normal use case, 5V DC power
supply is suggested to be applied on the board. Below image shows the MP2359 hardware design:

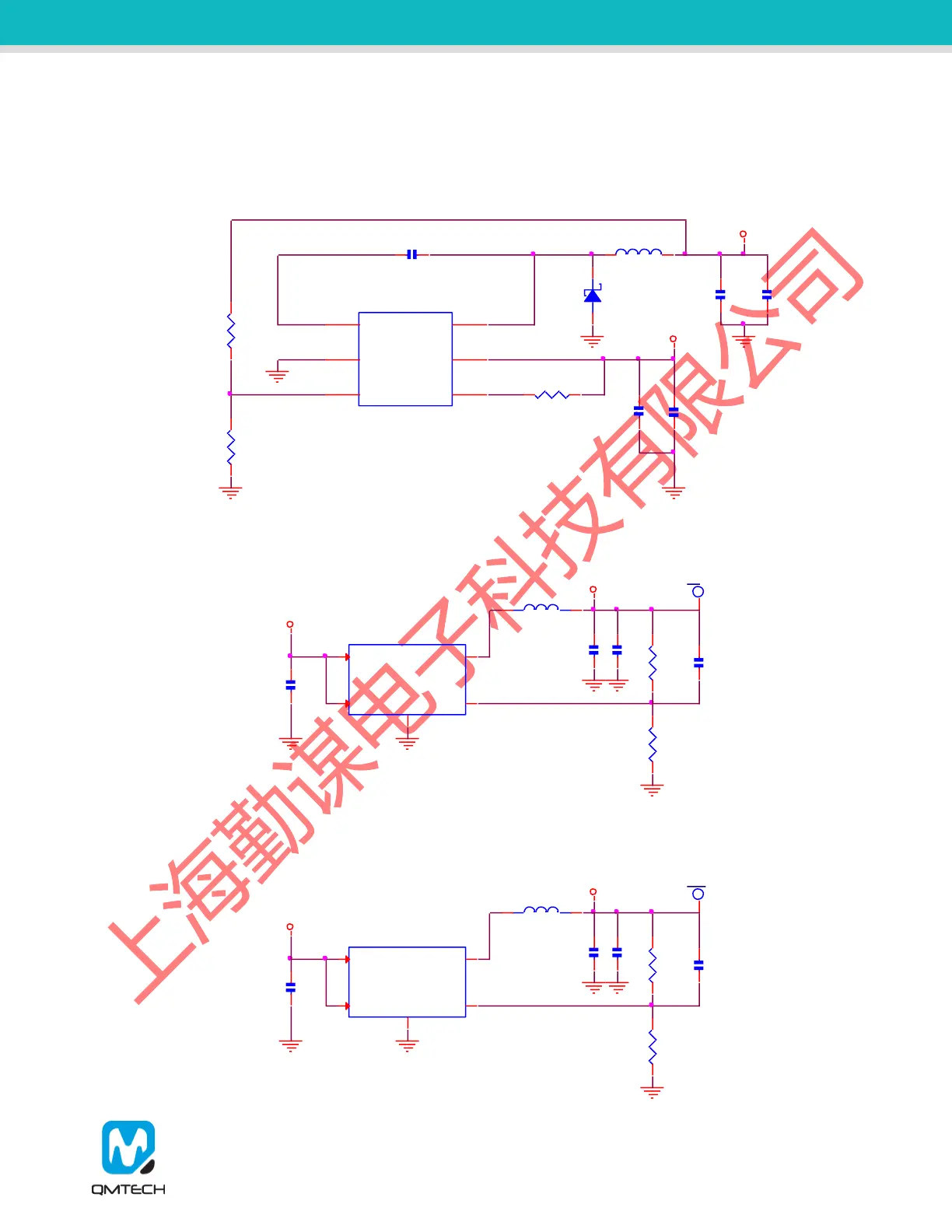

Figure 2-8. MP2359 Hardware Design
