QNAP TS-453E Repair Manual

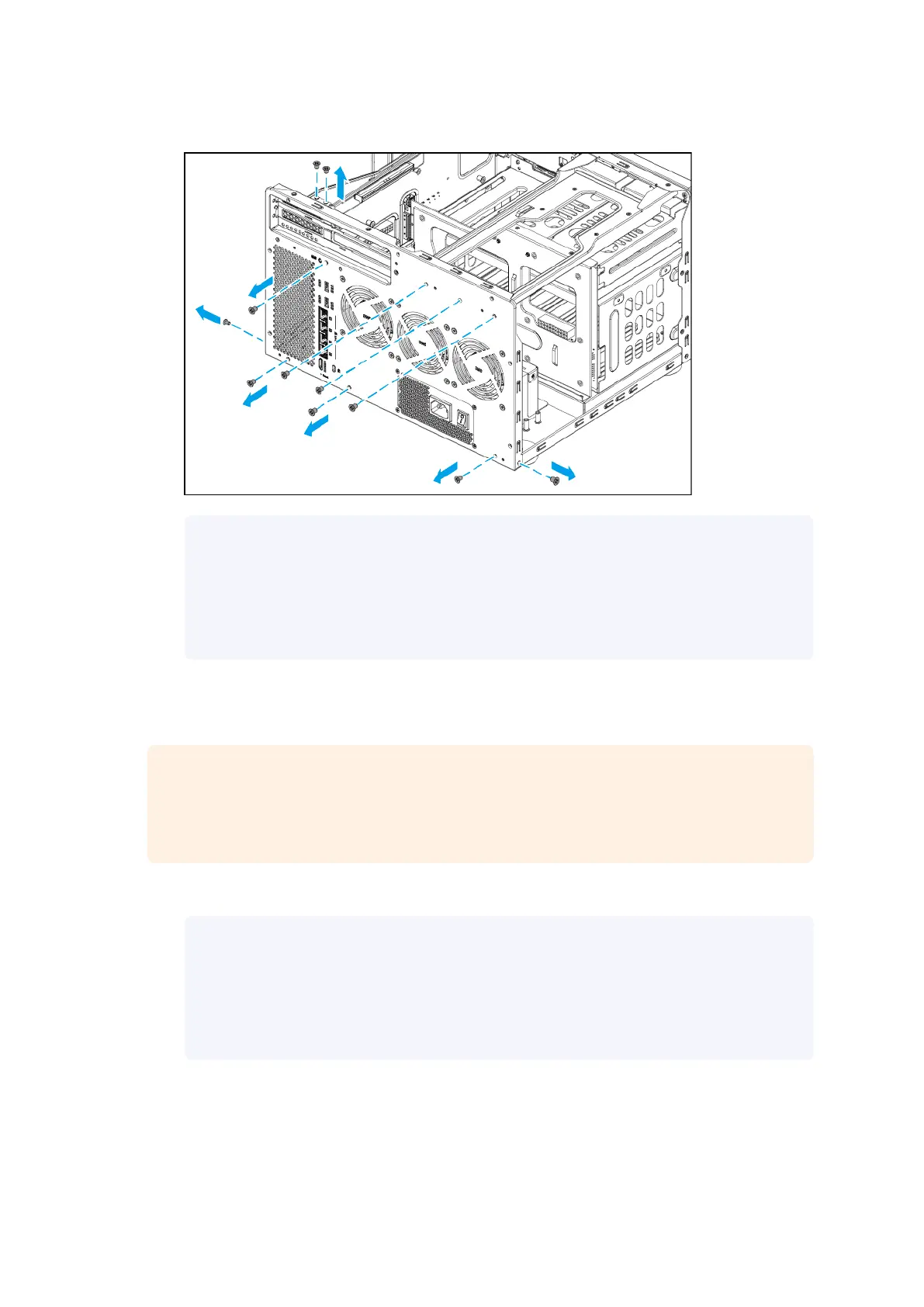

c. Remove the screws that secure the rear panel to the chassis.
Note
• The at head M3x4 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
d. Remove the rear panel.
12. Remove the system fans from the rear panel
Important
Remember which side of the fans is attached. To ensure proper cooling, the correct side
must be reattached so that the airow is directed out of the rear panel. There may be an
arrow on the side of the fans that indicates the airow direction.
a. Remove the screws that secure the fans to the rear panel.
Note
• The at head M5x10 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
| NAS Repair Manual
Category D NAS Models 105

QNAP TS-453E Specifications

General

GPU	Intel UHD Graphics
Flash Memory	4 GB (Dual boot OS protection)
Drive Bays	4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable	Yes
M.2 SSD Slot	2 x M.2 2280 PCIe Gen3 x1
SSD Cache Acceleration Support	Yes
Network Interface	2 x 2.5GbE RJ45
Form Factor	Tower
LED Indicators	Status, LAN, USB, HDD 1-4
Kensington Security Slot	Yes
Operating System	QTS 5.0
Processor	Intel Celeron J6412
CPU Architecture	64-bit x86
Memory	8 GB DDR4 (4 GB x 2)
Memory Slot	2 x SO-DIMM
Drive Compatibility	3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Maximum Internal Raw Capacity	64 TB (16 TB drive x 4)
Buttons	Power, Reset
Power Supply Unit	100-240V
Fan	1 x 120mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5% to 95% RH
