Note
The pan head M3x5 screws require a Phillips #2 screwdriver.
A torque of 7 kgf.cm (6.08 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.

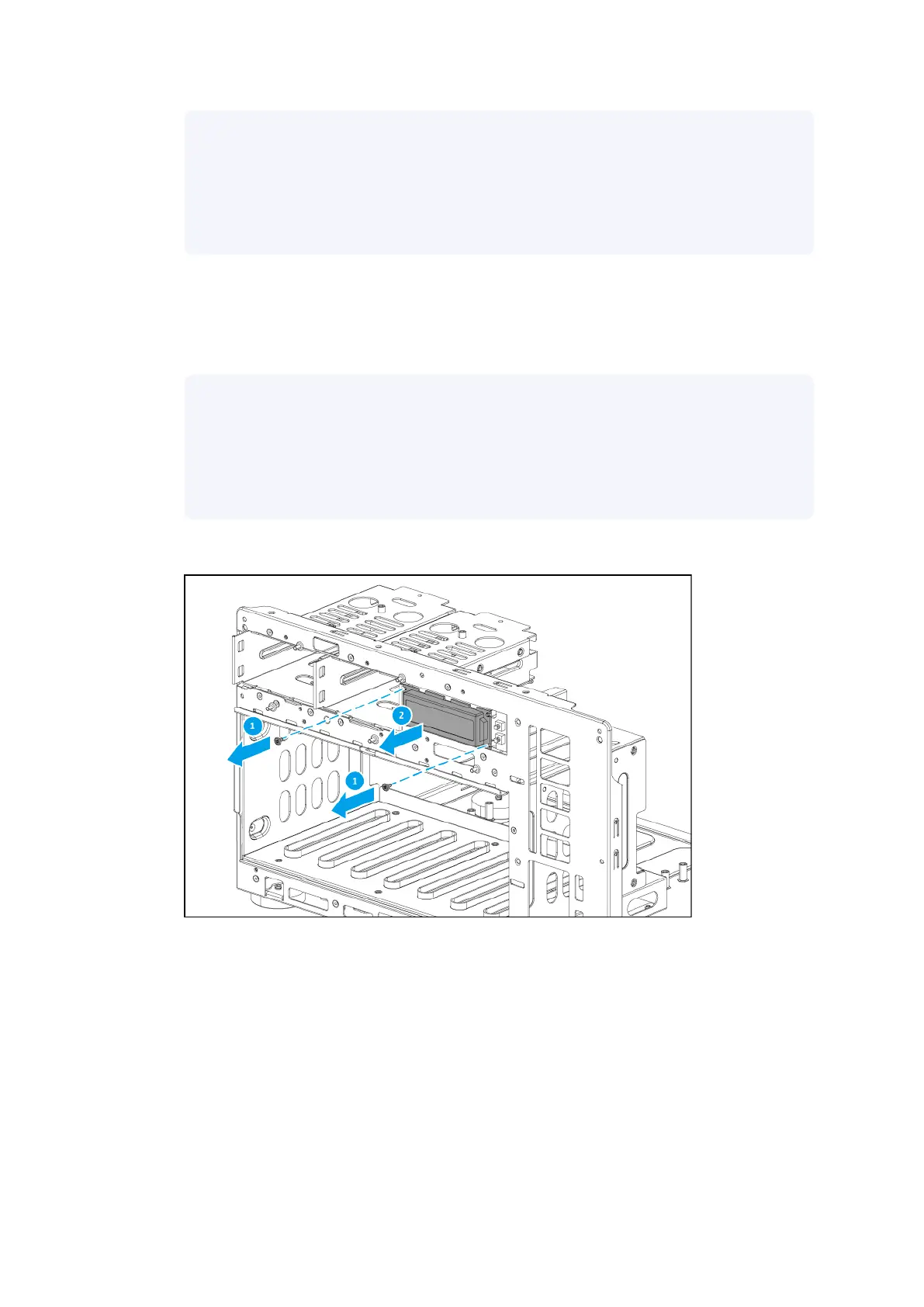

b. Remove the system board.
22. Remove the LCD display module from the front panel.
a. Remove the screws that secure the LCD display module to the front panel.
Note
The pan head M2.5x3 screws require a Phillips #1 screwdriver
A torque of 3 kgf.cm (2.60 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
b. Remove the LCD display module.
23. Remove the rubber feet from the bottom of the chassis.
a. Position the chassis on its left side.
| NAS Repair Manual
Category D NAS Models 116
