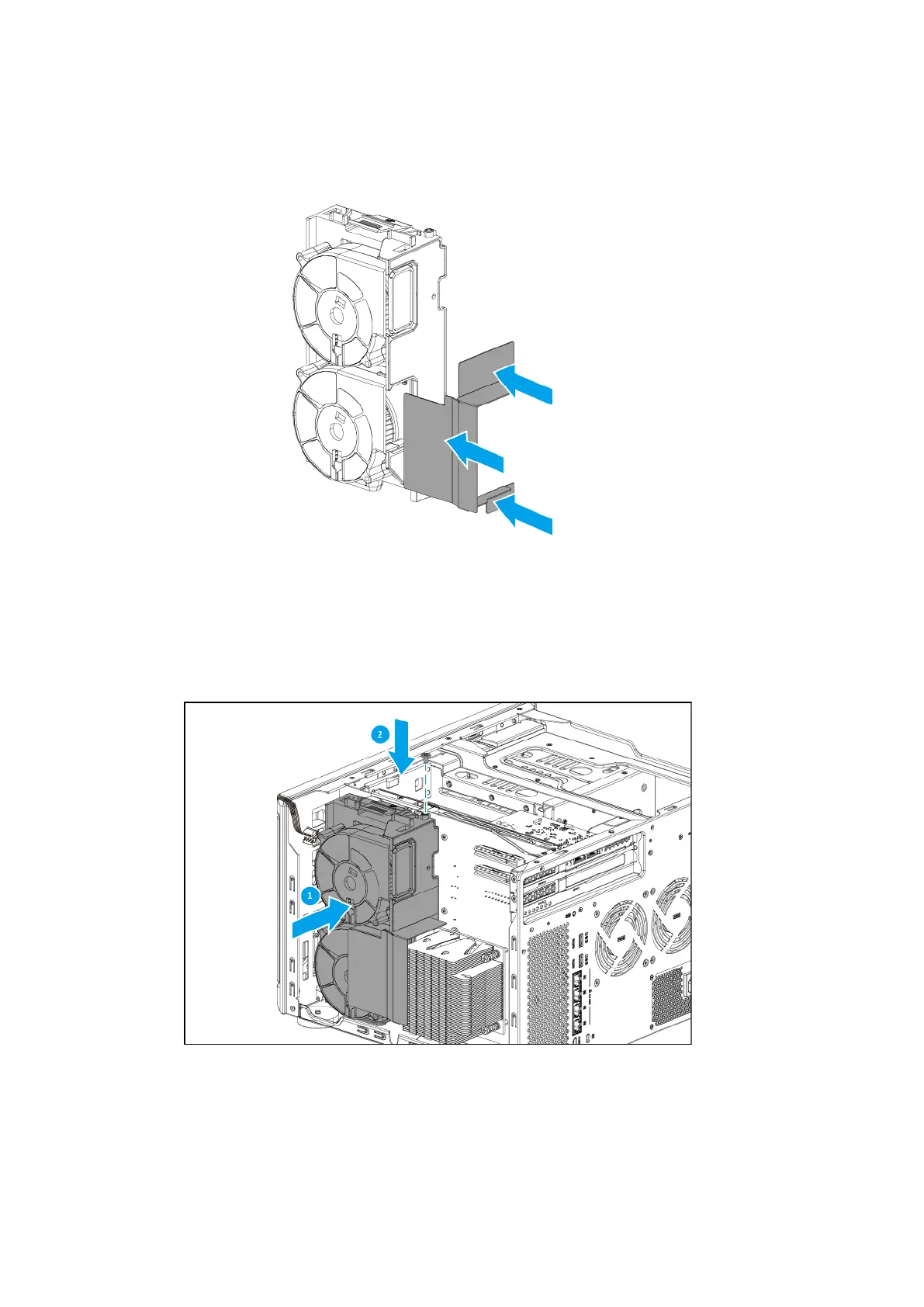

15. Attach the air shroud to the fan tray.
The air shroud has three adhesive surfaces: Two attach to the fan tray and one attaches to the
lower CPU fan.
16. Attach the fan tray to the chassis.
a. Insert the bottom of the fan tray into the chassis.
b. Push the module toward the system board until the latch locks the fan tray in place.
c. Attach the screw.
| NAS Repair Manual
Category D NAS Models 131

QNAP TS-453E Specifications

General

GPU	Intel UHD Graphics
Flash Memory	4 GB (Dual boot OS protection)
Drive Bays	4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable	Yes
M.2 SSD Slot	2 x M.2 2280 PCIe Gen3 x1
SSD Cache Acceleration Support	Yes
Network Interface	2 x 2.5GbE RJ45
Form Factor	Tower
LED Indicators	Status, LAN, USB, HDD 1-4
Kensington Security Slot	Yes
Operating System	QTS 5.0
Processor	Intel Celeron J6412
CPU Architecture	64-bit x86
Memory	8 GB DDR4 (4 GB x 2)
Memory Slot	2 x SO-DIMM
Drive Compatibility	3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Maximum Internal Raw Capacity	64 TB (16 TB drive x 4)
Buttons	Power, Reset
Power Supply Unit	100-240V
Fan	1 x 120mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5% to 95% RH
