QNAP TS-453E Repair Manual

8. Attach the CPU fan duct.

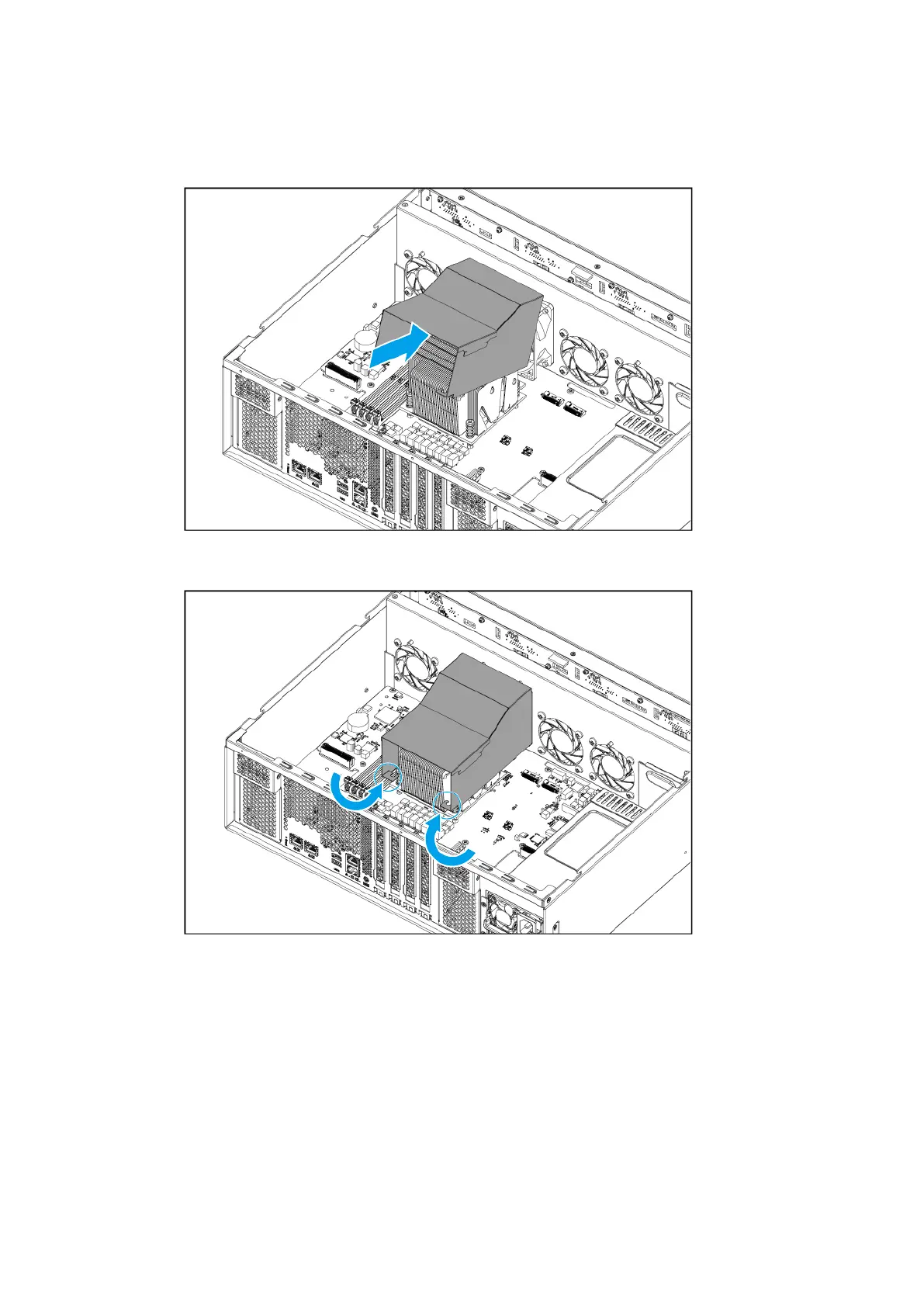

a. Attach the CPU fan duct to the CPU fan.
b. Attach the bottom hooks of the CPU fan duct to the CPU heatsink screws.
9. Optional: Install memory modules.
a. Align the notch with the ridge in the slot.
b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
| NAS Repair Manual
Category E NAS Models 166

QNAP TS-453E Specifications

General

GPU	Intel UHD Graphics
Flash Memory	4 GB (Dual boot OS protection)
Drive Bays	4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable	Yes
M.2 SSD Slot	2 x M.2 2280 PCIe Gen3 x1
SSD Cache Acceleration Support	Yes
Network Interface	2 x 2.5GbE RJ45
Form Factor	Tower
LED Indicators	Status, LAN, USB, HDD 1-4
Kensington Security Slot	Yes
Operating System	QTS 5.0
Processor	Intel Celeron J6412
CPU Architecture	64-bit x86
Memory	8 GB DDR4 (4 GB x 2)
Memory Slot	2 x SO-DIMM
Drive Compatibility	3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Maximum Internal Raw Capacity	64 TB (16 TB drive x 4)
Buttons	Power, Reset
Power Supply Unit	100-240V
Fan	1 x 120mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5% to 95% RH
