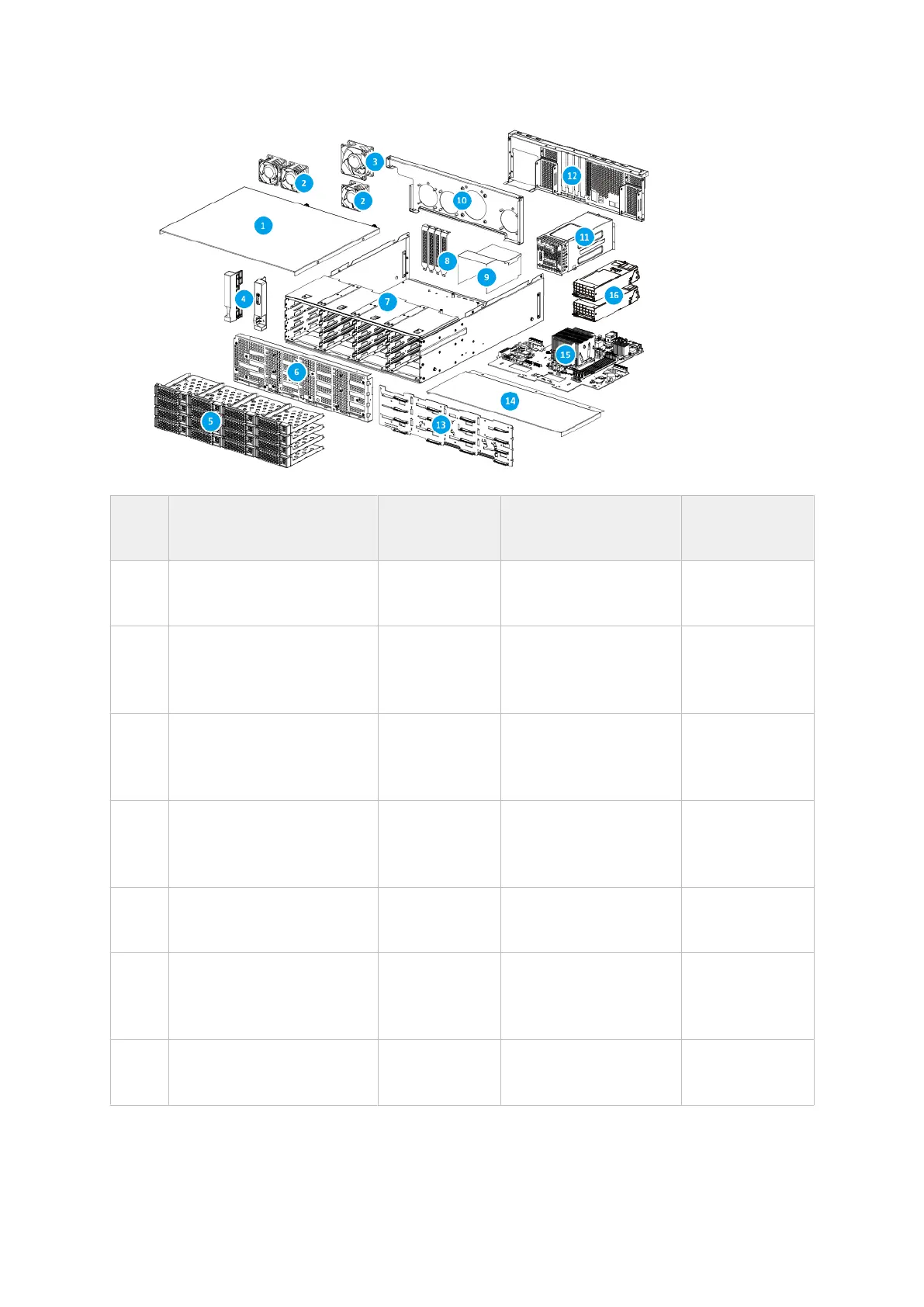

No. Component
(Quantity)
Screw Type
(Quantity)
Screwdriver
(Torque)
Attached To
1 Rear top cover
(1)
Thumb screw - Chassis
2 System fan
(3)
Self-tapping
D5x10
(4)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Fan tray
3 CPU fan
(1)
Self-tapping
D5x10
(4)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Fan tray
4 Handles
(2)
Flat head
M3x5
(2 x 3 = 6)
Phillips #2
(7 kgf.cm / 6.08 lbf.in)
Chassis
5 Drive tray (3.5-inch)
(4)
- - -
6 Backplane tray
(1)
Flat head
M3x4
(9)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Chassis
7 Chassis
(1)
- - -
| NAS Repair Manual
Category E NAS Models 171
