QNAP TS-453E Repair Manual

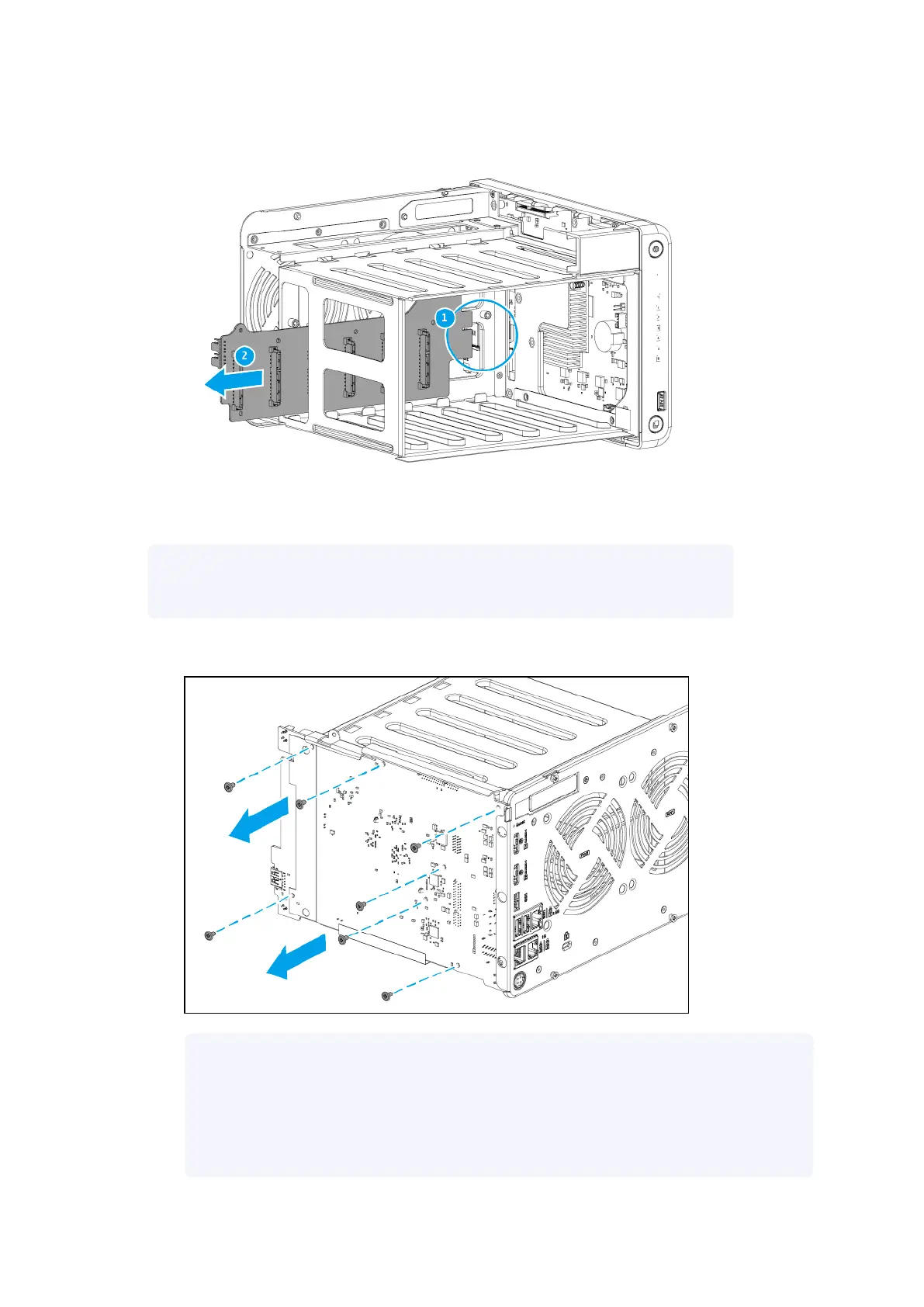

c. Carefully remove the backplane from the drive cage.
10. Remove the system board.
Note
The system board tray and the rear panel are connected as a single component.
a. Remove the screws that secure the tray to the chassis base.
Note
• The pan head self-tapping M3x5 screws require a Phillips #2 screwdriver.
• A torque of 5 kgf.cm (4.34 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
| NAS Repair Manual
Category B NAS Models 46

QNAP TS-453E Specifications

General

GPU	Intel UHD Graphics
Flash Memory	4 GB (Dual boot OS protection)
Drive Bays	4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable	Yes
M.2 SSD Slot	2 x M.2 2280 PCIe Gen3 x1
SSD Cache Acceleration Support	Yes
Network Interface	2 x 2.5GbE RJ45
Form Factor	Tower
LED Indicators	Status, LAN, USB, HDD 1-4
Kensington Security Slot	Yes
Operating System	QTS 5.0
Processor	Intel Celeron J6412
CPU Architecture	64-bit x86
Memory	8 GB DDR4 (4 GB x 2)
Memory Slot	2 x SO-DIMM
Drive Compatibility	3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Maximum Internal Raw Capacity	64 TB (16 TB drive x 4)
Buttons	Power, Reset
Power Supply Unit	100-240V
Fan	1 x 120mm
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5% to 95% RH
