QOMO Hite Vision Interactive Whiteboard User Manual
© Copyright 2012 QOMO HiteVision, LLC. All Rights Reserved
6
How to Install
The following instructions apply to the installation for all whiteboard products from our company. The
user can refer to corresponding instructions according to the products purchased. Please contact the
local distributor for more details.
How to Install Hardware
I．Whiteboard installation for A series

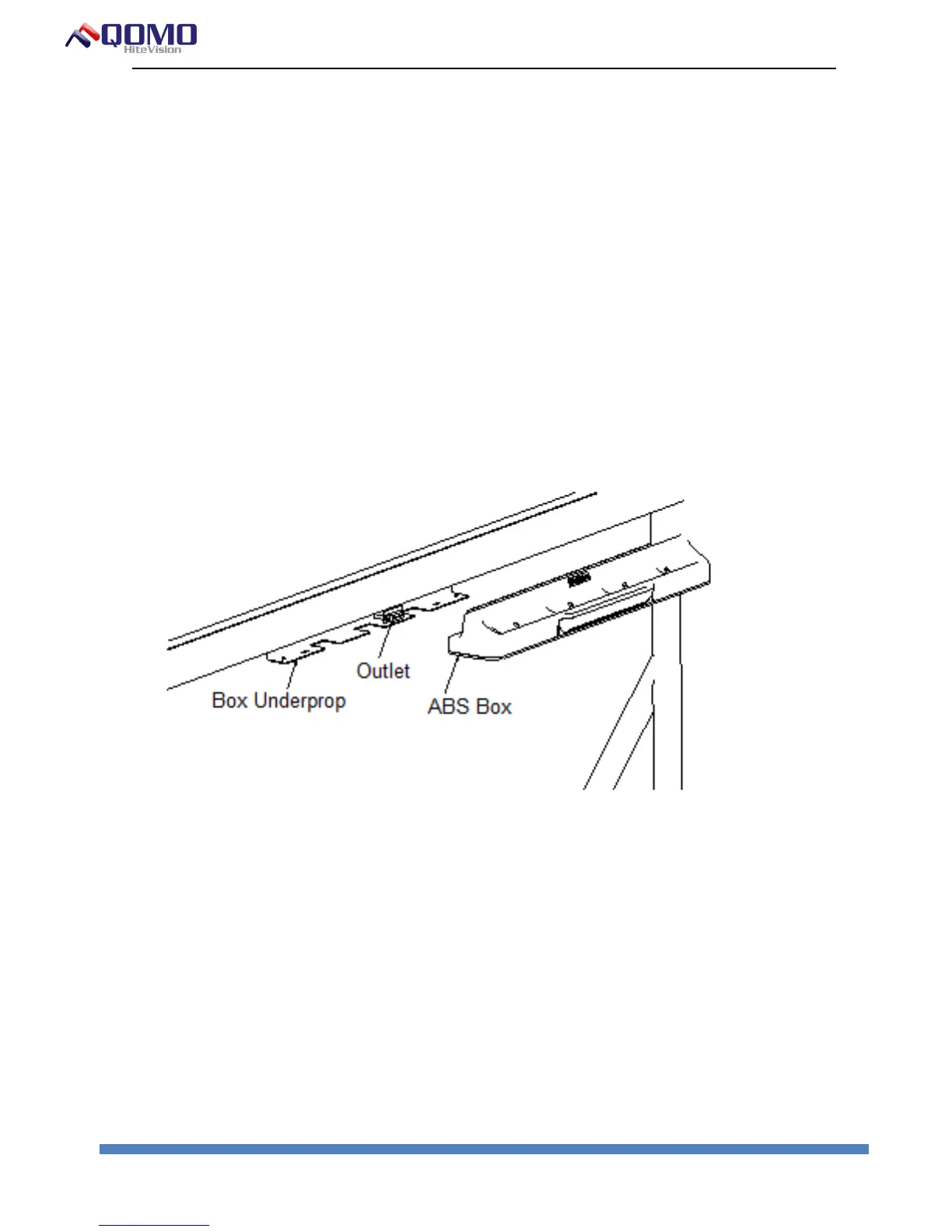

1. First install the smart pen tray of the interactive whiteboard：Insert the box
underprop into the pen tray. The PCB in the pen tray should be exactly in
the outlet of the underprop and the pen tray joints should be exactly in the
box underprop slot. Screw in two M3 screws from the bottom of the
pen tray. See the following diagram:
