QRP Labs QCX-mini CW - Page 116

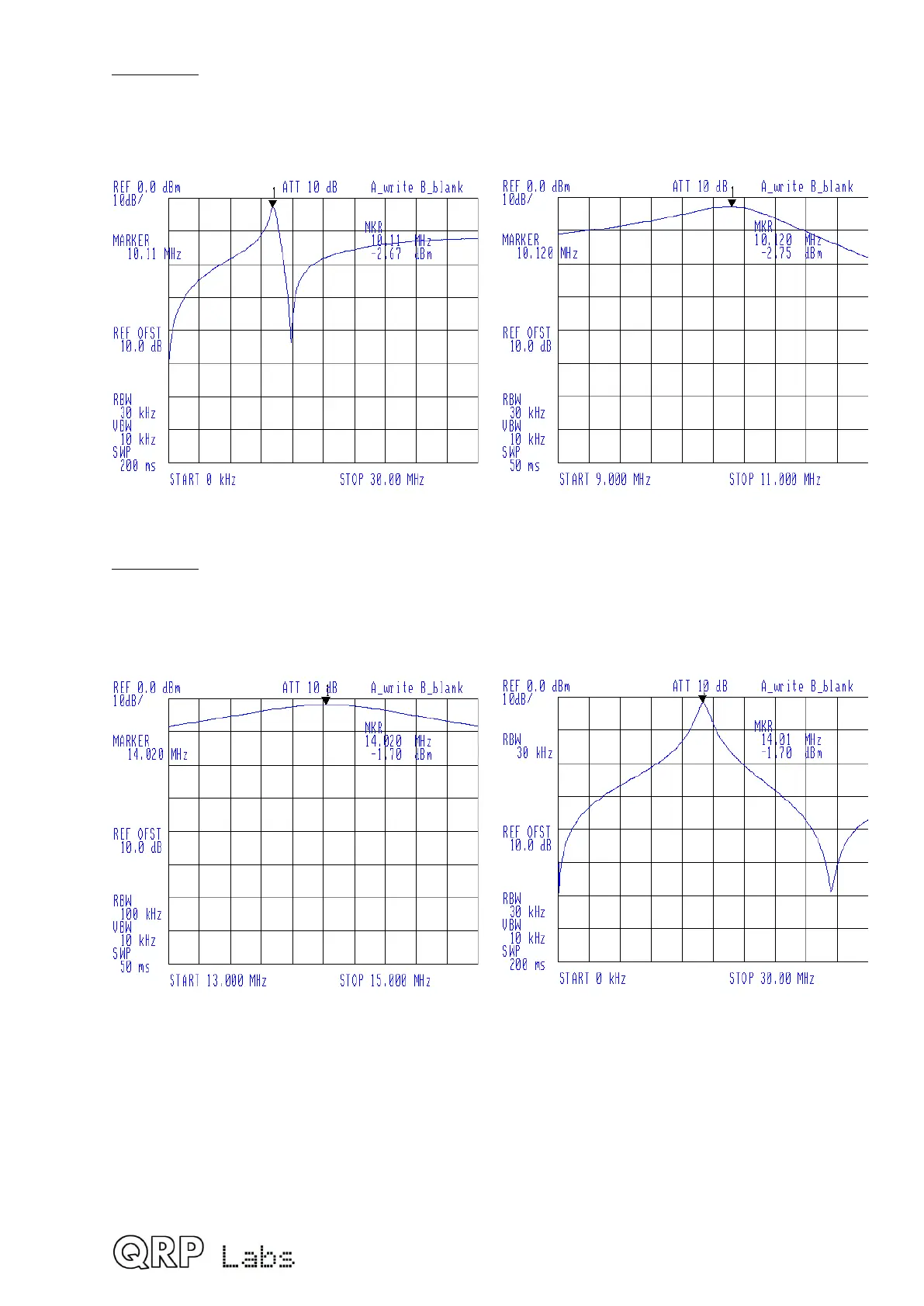

30m band
3dB bandwidth: 645kHz
Insertion loss: 2.67dB at 10.120MHz center
Tuning range: 7.93MHz to 12.47MHz
20m band
3dB bandwidth: 1,083kHz
Insertion loss: 1.30dB at 14.020MHz center
Tuning range: 9.69MHz to 22.54MHz
 116
