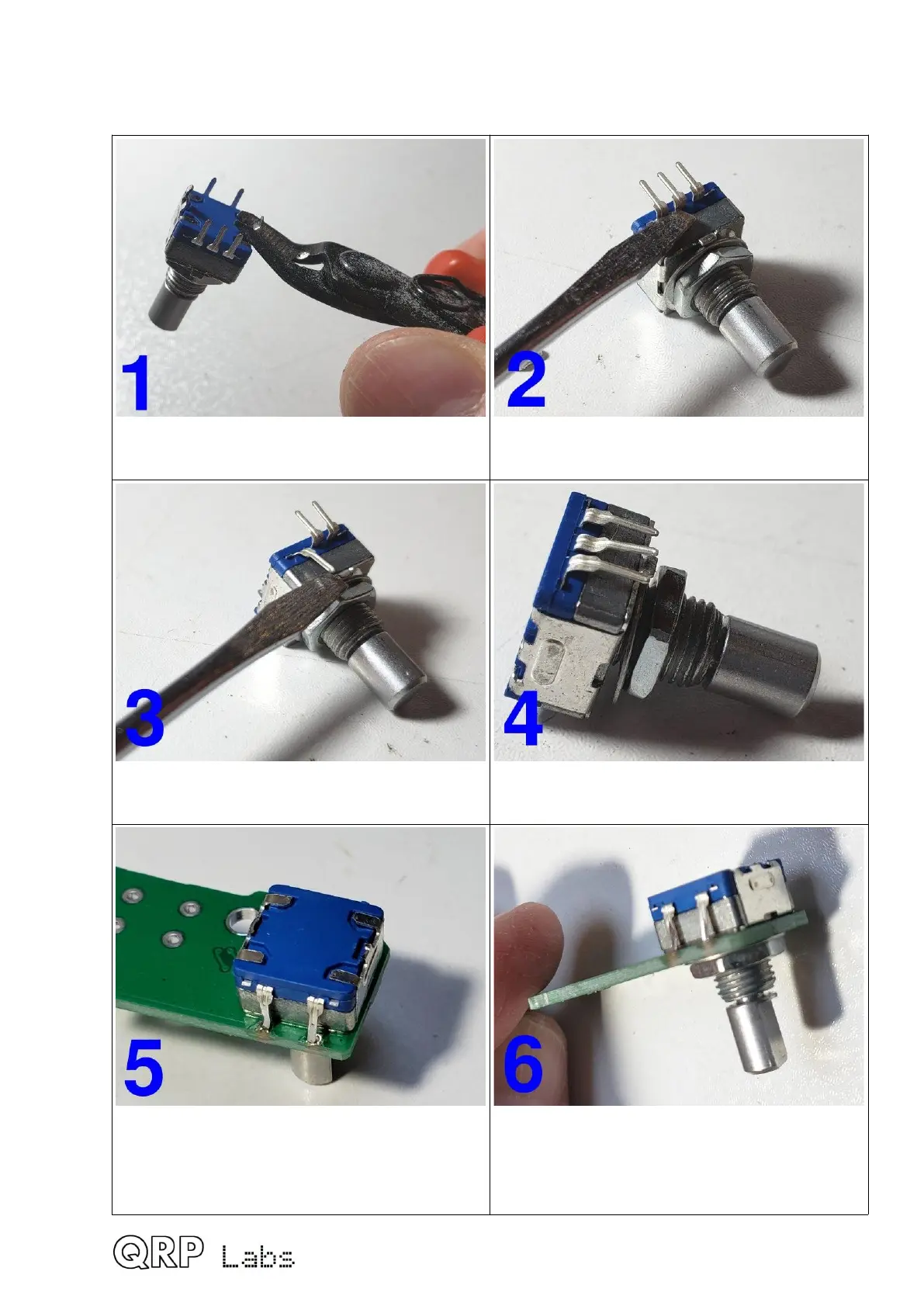

3.36 Install rotary encoder
The rotary encoder is installed in the large hole labeled SW1 on the controls PCB.
First cut off two large PCB-mounting lugs as
shown using wire-cutters. Do NOT cut pins.
Position a flat-headed screwdriver above
one of the five switch pins.
Bend over the pin through 180-degrees so
that it points to the front of the control.
Repeat the same procedure for the four
remaining pins.
Install the rotary encoder, first line up pins so
that they fit in corresponding PCB holes. The
rotary encoder has a locating tab which fits
into a matching hole on the PCB.
Make sure the washer and nut are both on
the “top” (silkscreen-printed) side of the
PCB.
Tighten the nut.
