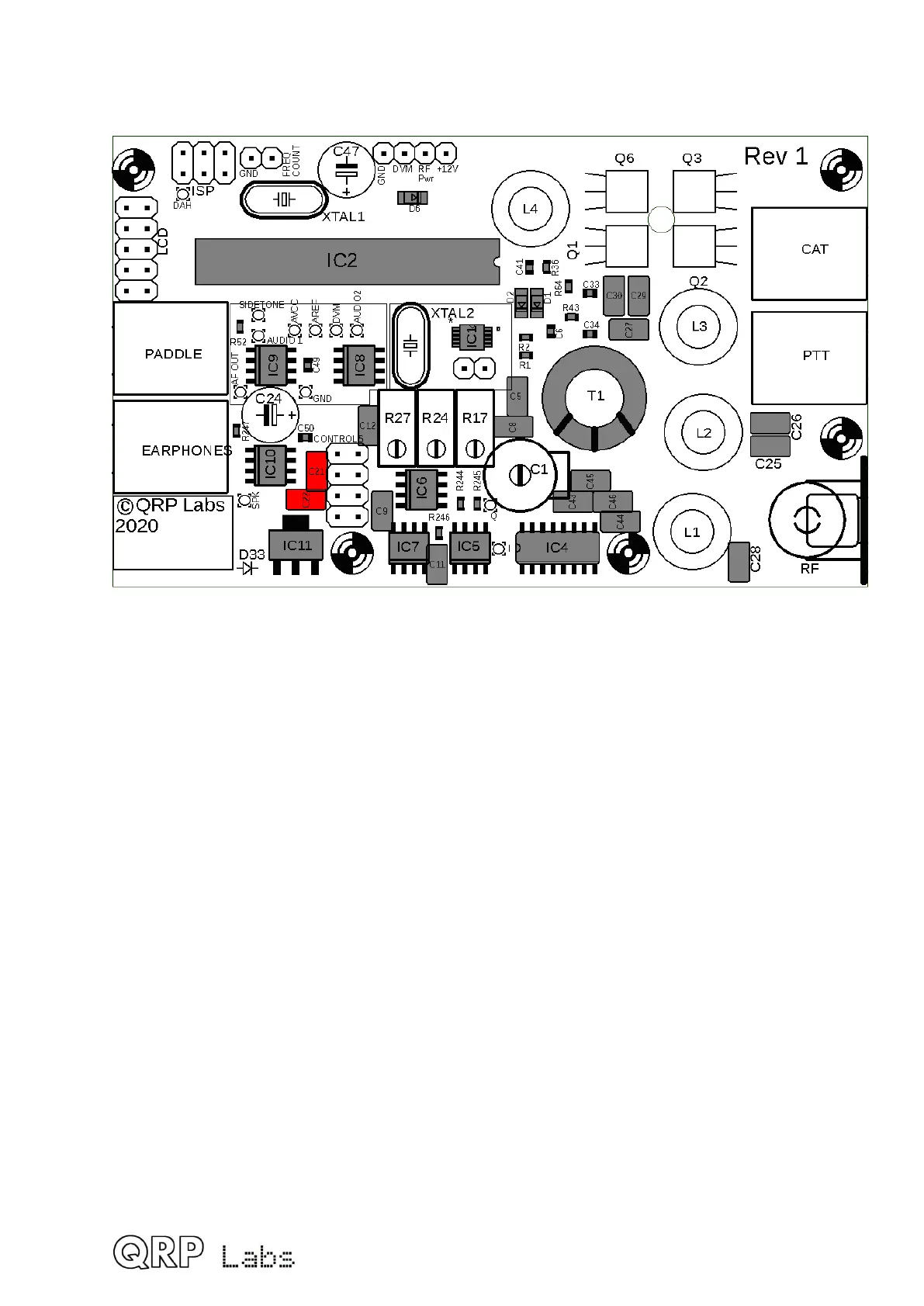

3.11 Install 1uF, “105” capacitors C21, and C22
There are two 1uF capacitors labeled “105”, which are C21 and C22.
 37
