QSC AD-S282H - Beamwidth and Off-Axis Response; Horizontal and Vertical Beamwidth Data; Off-Axis Frequency Response Analysis

12
Frequency (Hertz)
Frequency (Hertz)
Horizontal
Vertical
Beamwidth (degrees)
On Axis
15° Off Axis
30° Off Axis

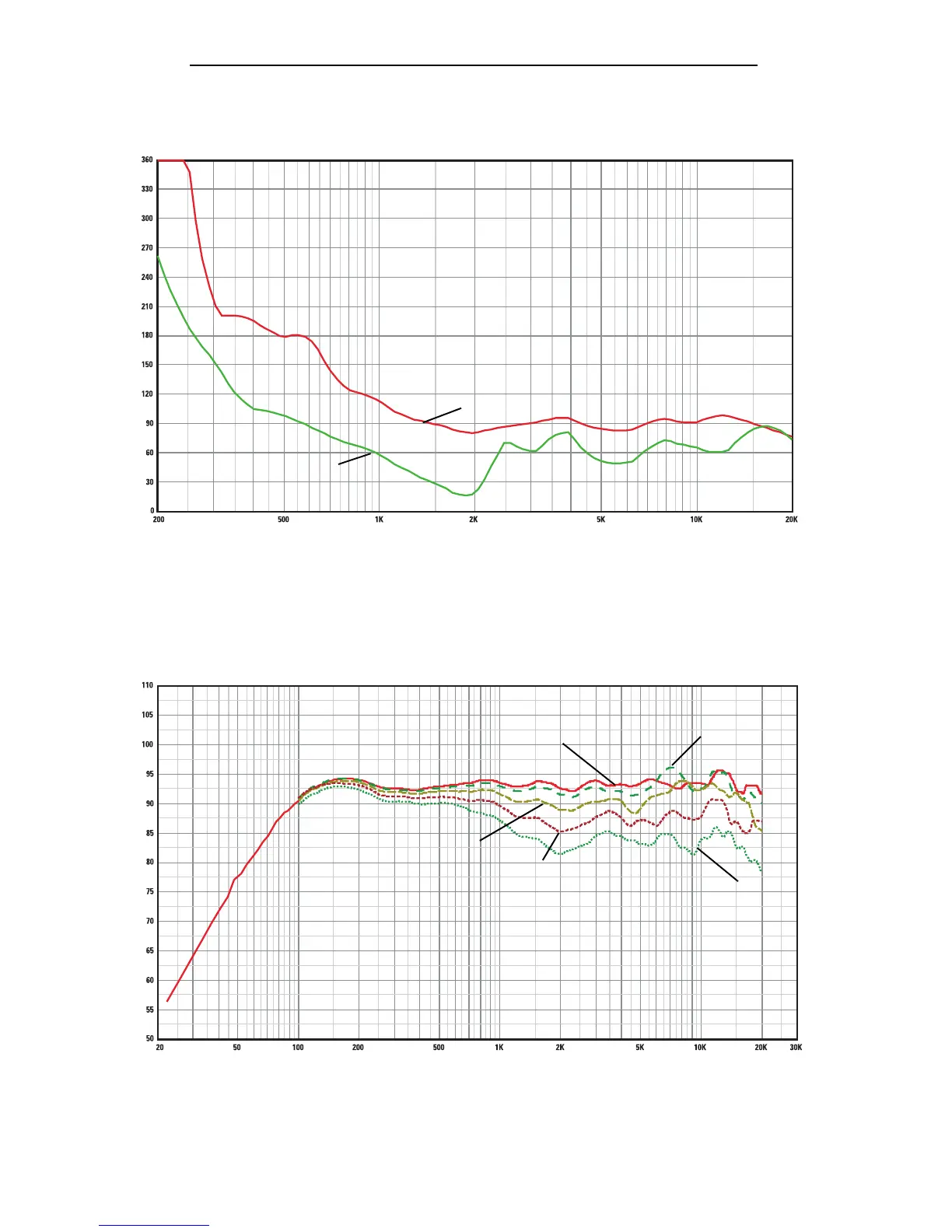

Response On-Axis, 15°, 30°,45°, and 60° Off-Axis Vs. Frequency
Horizontal and Vertical Beamwidth Vs. Frequency
I-282H, AD-S282H, and AD-S282HT Beamwidth and On/Off Axis Response Curves
Specifications are subject to change without notice.
SPL (dB)
45° Off Axis
60° Off Axis
