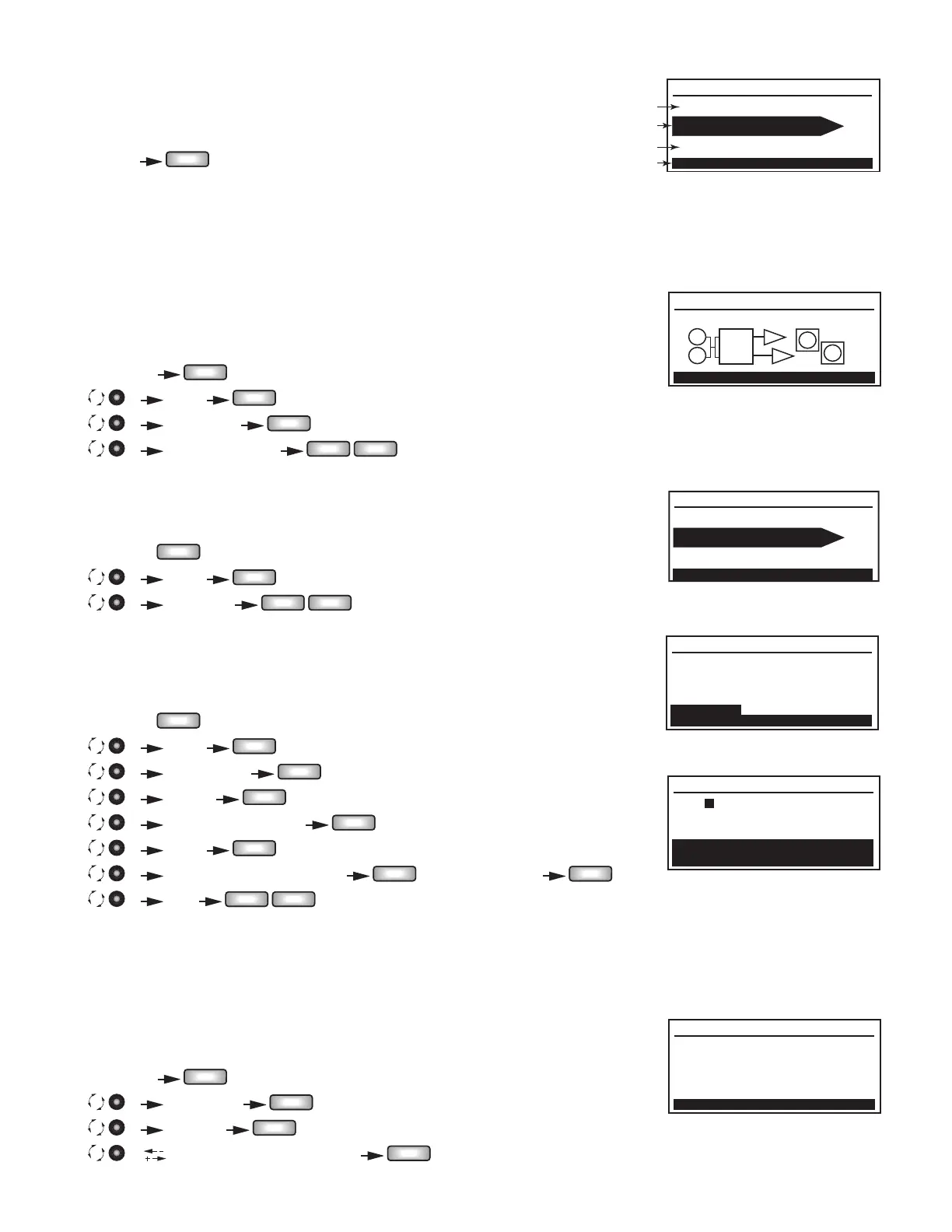

Presets
A preset confi gures the inputs and outputs, along with setting the DSP.
There are 20 Presets. See Figure 9.
From Home
ENTER
1. Previous selection
2. Currently selected
3. Next selection
4. Instructions
Recall a Preset
Recall a preset to confi gure the amplifi er to meet the requirements of your loudspeakers and installation.
There are 20 Presets. See Figure 10.
1. From Home
ENTER
2. B Preset,
ENTER
3. B Preset Recall,
ENTER
4. B the preset you want,
ENTER ENTER
Save Preset
Saves the active preset with any DSP changes. See Figure 11.
1. From Home
ENTER
2. B Preset,
ENTER
3. B Preset Save,
ENTER ENTER
Save Preset As
Select the Location and/or change the Name to save changes you make to the DSP.
See Figure 12 and Figure 13.
1. From Home
ENTER
2. B Preset,
ENTER
.
3. B Preset Save As,
ENTER
.
4. B Location
ENTER
5. B the Location (p1 to p20),
ENTER
.
6. B Name,
ENTER
.
7. B letter, number, hyphen, or space
ENTER
repeat. When fi nished
EXIT
.
8. B Save,
ENTER ENTER
.
Stereo DSP (Digital Signal Processing)
The DSP is set for both channels equally, at the same time. Any changes you make are made in real time – you hear the change as it is being made.
Sensitivity
See Figure 15 through Figure 17.
1. From Home
ENTER
2. B STEREO DSP,
ENTER
.
3.
B Sensitivity,
ENTER
.
4.
B 1.2 V (+4 dBu) or 3.9 V (+14 dBu),
ENTER
.
— Figure 13 —
P1: ST SAT FULL RANGE
ENTER TO SELECT
1
2
STEREO DSP
PRESETS
UTILITIES
3
4
— Figure 14 —
PRESET > RECALL
ENTER TO SELECT
p20: MONO SUBS 100 HZ
2
ST
DSP
B
1
A
— Figure 15 —
P1: ST SAT FULL RANGE
ENTER TO SELECT
PRESET SAVE
PRESET RECALL
PRESET SAVE AS
— Figure 16 —
PRESET > SAVE AS
ENTER TO SELECT
P20: MONO SUBS 100 HZ
LOCATION
NAME SAVE
— Figure 17 —
PRESET > SAVE AS
ENTER: PRESS TO ADVANCE
P20: MONO SUBS 100 HZ
HOLD TO ACCEPT
— Figure 18 —
DSP > SENSITIVITY
SENSITIVITY: 3.9V (+14dBu)
SENSITIVITY: 3.9V (+14dBu)
