QSC GXD Series - Stereo DSP Settings; Crossover and Polarity Settings; Equalizer (EQ) Settings; Delay Settings

5
TD-000449-00-A

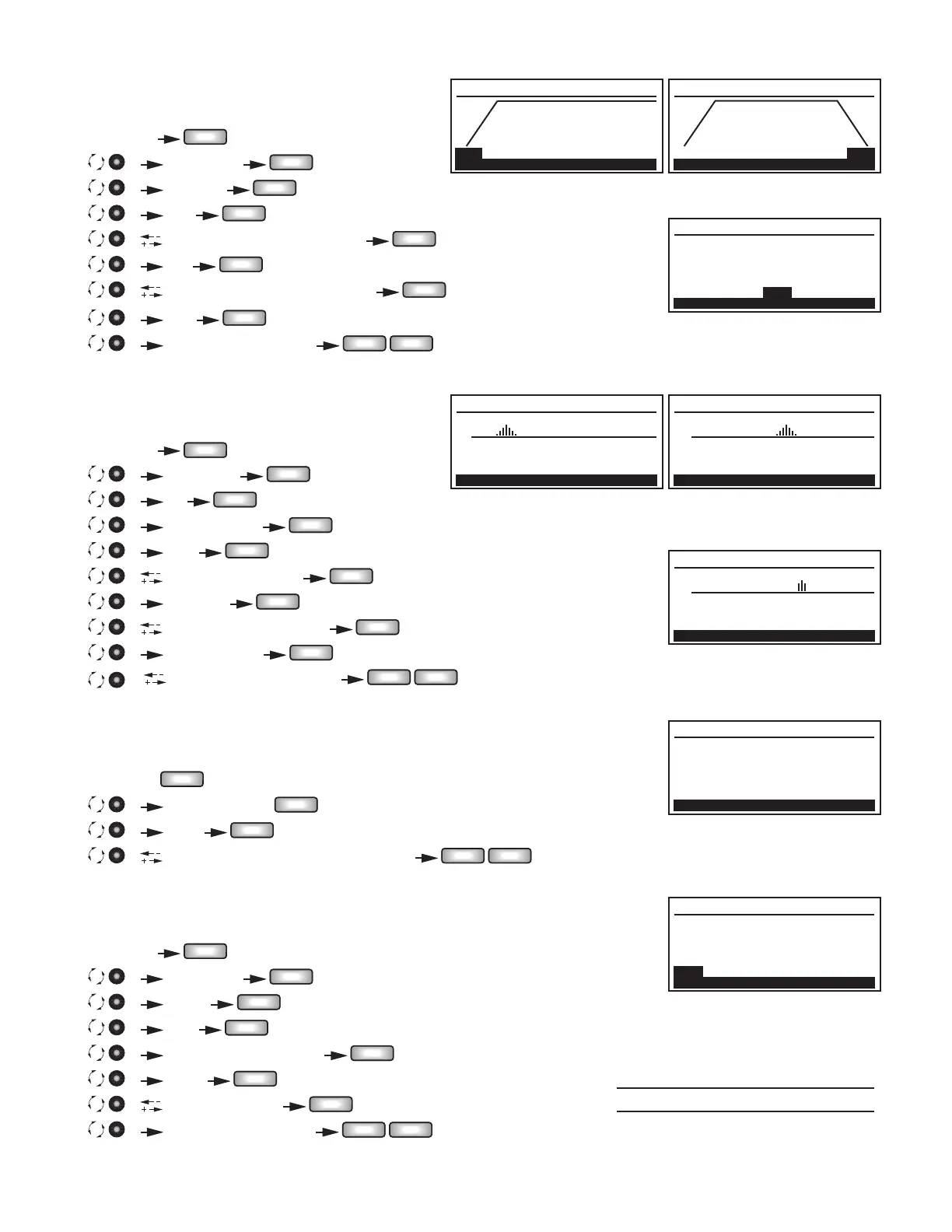

Crossover and Polarity
See Figure 15 through Figure 17.
1. From Home
ENTER
2. B STEREO DSP,
ENTER
.
3.
B Crossover,
ENTER
.
4.
B HPF,
ENTER
5. B Frequency (Bypass, 20 Hz to 4 kHz),
ENTER
6. B LPF,
ENTER
7. B Frequency (Bypass, 59.8 Hz to 4 kHz),
ENTER
8. B POL,
ENTER
9. B positive (+) or negative (-),
ENTER HOME
EQ
See Figure 18 through Figure 20.
1. From Home
ENTER
2. B STEREO DSP
ENTER
3. B EQ
ENTER
4. B Band 1, 2, 3, or 4
ENTER
5. B Gain,
ENTER
6. B Gain (-12 dB to +12 dB),
ENTER
7. B Frequency,
ENTER
8. B Frequency (20 Hz to 20 kHz),
ENTER
9. B BW (bandwidth),
ENTER
10. B BW (0.1 Octave to 3.0 Octave),
ENTER HOME
Delay
See Figure 21
1. From Home
ENTER
from the Home screen.
2. B STEREO DSP, press
ENTER
.
3. B Delay,
ENTER
.
4. B Delay (0.00 to 56.30 ft, or 17.16 m, or 50 ms),
ENTER HOME
.
Limiter
See Figure 22
1. From Home
ENTER
2. B STEREO DSP,
ENTER
.
3. B Limiter,
ENTER
.
4. B Type,
ENTER
.
5. B Mild, Medium, or Aggressive
ENTER
.
6. B Power,
ENTER
.
7. B Power (see Table 2),
ENTER
.
8. B Impedance (4 or 8 Ohms),
ENTER HOME
.
— Figure 19 —
XOVER > HIGHPASS
FREQUENCY: 60 Hz
HPF
POL LPF
0
-6
— Figure 20 —
XOVER > LOWPASS
FREQUENCY: 2000 Hz
0
HPF
POL LPF
-6
— Figure 21 —
XOVER > POARITY
POLARITY: +
HPF
POL
LPF
+
— Figure 22 —
BAND 1 > GAIN
GAIN: 8.0 dB
12
0
-12
— Figure 23 —
BAND 1 > FREQ
FREQUENCY: 1200 Hz
12
0
-12
— Figure 24 —
BAND 1 > BW
BANDWIDTH: 0.4 OCT
12
0
-12
— Figure 25 —
DSP > DELAY
DELAY: 8.48 MS
DELAY: 7.27 Ft
DELAY: 2.22 M
DELAY: 8.48 ms
— Figure 26 —
DSP > LIMITER
TYPE: MEDIUM
TYPE
POWER IMP
TYPE:MEDIUM
POWER:400W
IMPEDANCE:8
Model 4Ω 8Ω
GXD4
5 W – 600 W 5 W – 400 W
GXD8
5 W – 1200 W 5 W – 800 W
— Table 2 —
