QSC K8.2 Mounting Quick Start Guide

EN
3
TD-000524-00-A

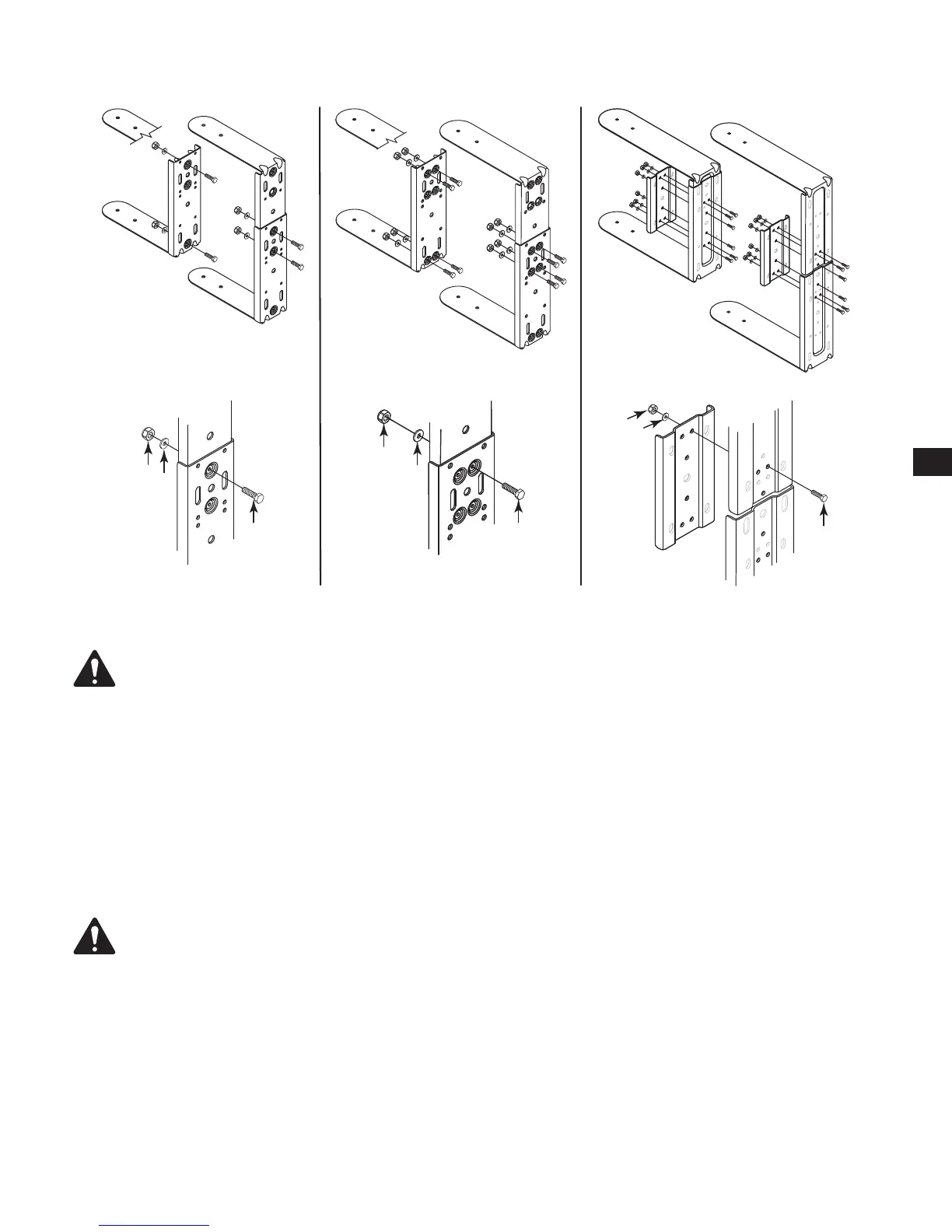

Assemble the Yoke
— Figure 2 —
K8.2 – M5x16 mm K10.2 – M5x16 mm K12.2 – M6x20 mm
1
2
3
1
2
3
1
3
2
Side to side
Top to bottom
Side to side
Top to bottom
Side to side
Top to bottom
NOTE: Use the connecting plate for both the standard and expanded configurations of model K12.2. The
plate provides strength and it's really hard to lose when it's bolted to the wall!
Refer to Figure 2
1. Insert the bolts (1) through both yoke brackets from the back.
2. Install the flat washers (2) onto the bolts.
3. Thread the nuts (3) onto the bolts, then tighten.
4. Make sure that all bolts are tightened. (K8.2 - 2 bolts, K10.2 - 4 bolts, K 12.2 - 6 bolts)
Install the Yoke
WARNING!: Make sure that the installation adheres to all applicable code and regulations. Consult a licensed,
professional engineer when any doubt or questions arise regarding a physical equipment installation.
Install the yoke assembly on the desired surface. Attaching hardware is not included.

QSC K8.2 Specifications

General

Amplifier class	D
Recommended amplifier power (max)	1800 W
Recommended amplifier power (min)	225 W
Amplifier/receiver input interface type	3.5 mm jack, XLR
Certification	CE, WEEE, UL, China RoHS, RoHS II, FCC B
Product color	Black
LED indicators	Yes
RMS rated power	- W
Housing material	Acrylonitrile butadiene styrene (ABS)
Recommended usage	Universal
Audio output channels	1.0 channels
Multi-Room Streaming (MRS) support	-
Speaker type	2-way
Number of drivers	2
Speaker placement	Floor
AirPlay	No
Display	1.75\
Transducer material	Titan
Frequency range	55 - 20000 Hz
Connectivity technology	Wired
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package weight	14400 g
Speaker interface type	XLR

Weight and Dimensions

Depth	269 mm
Width	280 mm
Height	449 mm
Weight	12200 g
