QSC KS Series User Manual

12
TD-001536-01-B
Pole-Mounting Loudspeakers over a Subwoofer
NOTE: Figures 13 and 14 depict the KS212C
but the KS112 has similar pole-mounting
features. See the tables below for individual
requirements.
The KS112 and KS212C Subwoofers are equipped with
two M20 threaded sockets: one on the top, and one on the
side. The KS118 has a single M20 threaded socket.

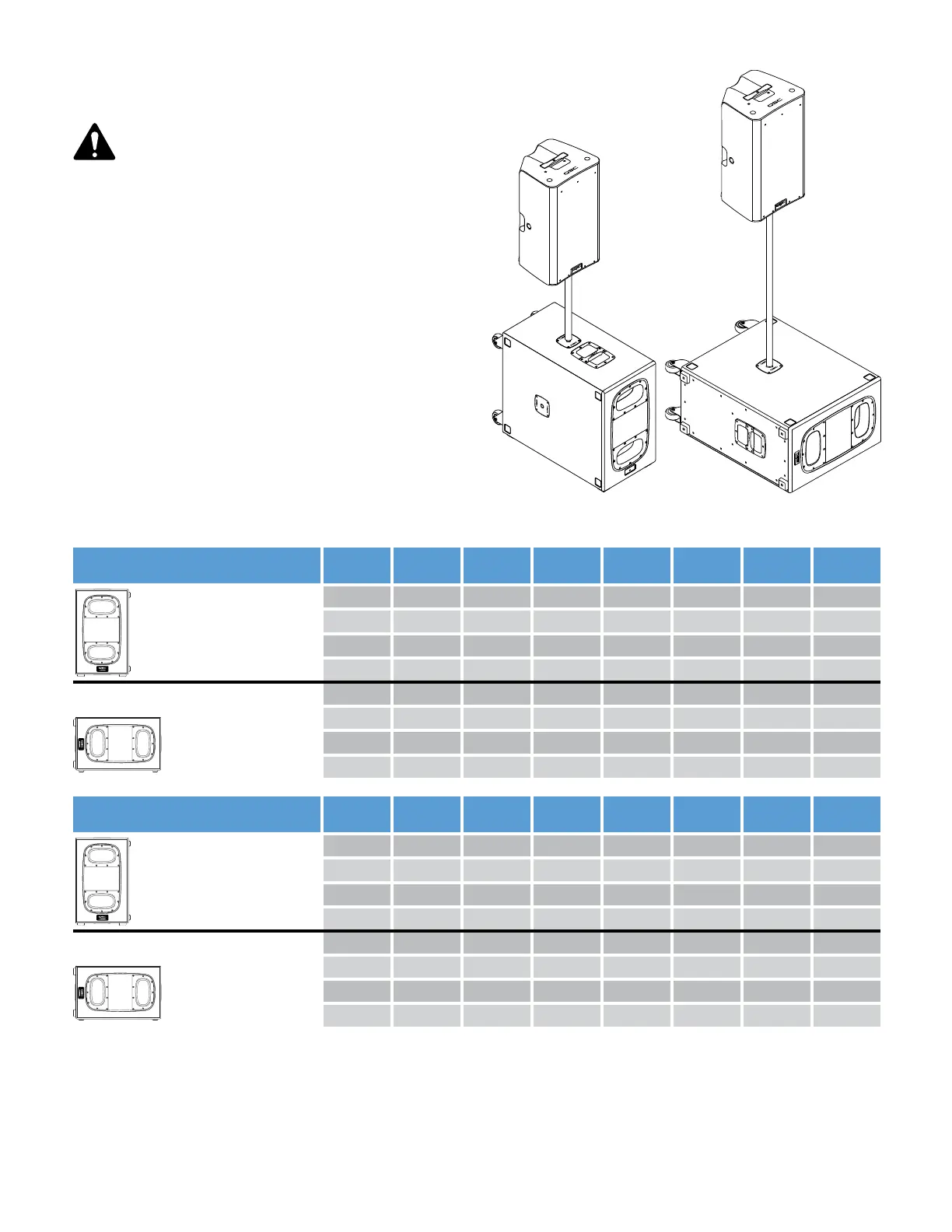

Figure 13 shows a KS Series Subwoofer in a vertical
orientation with a K.2 Series loudspeaker mountedabove.
Figure 14 shows a KS Series Subwoofer in a horizontal
orientation with a K.2 Series loudspeaker mountedabove.
Use the tables below to determine which poles are safe
to use with the various CP, KW, KLA, K.2, and K Series
loudspeakers and your KS Series Subwoofer in a horizontal
or vertical orientation.
4 = OK to use
6 = Not recommended (see note on next page)
– Figure 13 – – Figure 14 –
KS212C
K8.2/
CP8
K10.2/
CP12
K12.2 KW122 KW152 KW153
KLA12
× 1
KLA12
× 2
SP-16X Ext. Pole
4 4 4 4 4 4 4 6
SP-26 Pole
4 4 4 4 4 6 4 6
SP-36 Pole
4 4 6 4 6 6 6 6
SP-16X + SP-26 Poles
4 4 6 4 6 6 6 6
SP-16X Ext. Pole
4 4 4 4 4 4 4 4
SP-26 Pole
4 4 4 4 4 4 4 4
SP-36 Pole
4 4 4 4 4 4 4 4
SP-16X + SP-26 Poles
4 4 6 4 6 6 4 6
KS112
K8.2/
CP8
K10.2/
CP12
K12.2 KW122 KW152 KW153
KLA12
× 1
KLA12
× 2
SP-16X Ext. Pole
4 4 4 6 6 6 6 6
SP-26 Pole
4 4 6 6 6 6 6 6
SP-36 Pole
4 6 6 6 6 6 6 6
SP-16X + SP-26 Poles
4 6 6 6 6 6 6 6
SP-16X Ext. Pole
4 4 4 4 4 4 4 4
SP-26 Pole
4 4 4 4 4 4 4 4
SP-36 Pole
4 4 4 4 4 4 4 6
SP-16X + SP-26 Poles
4 4 6 4 6 6 4 6
