WARNING!: When the AC Power is on, there is a potential of having dangerous voltage at the output terminals on the rear of
the amplifier. Use caution not to touch these contacts. Turn off the AC Mains disconnect switch prior to making any connections.
IMPORTANT: QSC recommends that you connect jumpers where the terminals are the same points electrically. Refer to Figure 14
thru Figure 22.
1. Turn the AC Mains power switch to on. The amplifier starts in the Run mode, or the last mode it was in before power was turned off.
2. Press and release the front-panel power button. The button flashes red, the amplifier is in Mute All mode.
3. Select the configuration appropriate for your loudspeakers, using either Preset Recall, or the Preset Wizard.
The following is a list of configurations for 1-, 2-, 3-, and 4-channel outputs. This is not an exhaustive list, but is intended to give you an idea of what is
available and how the outputs would be wired.

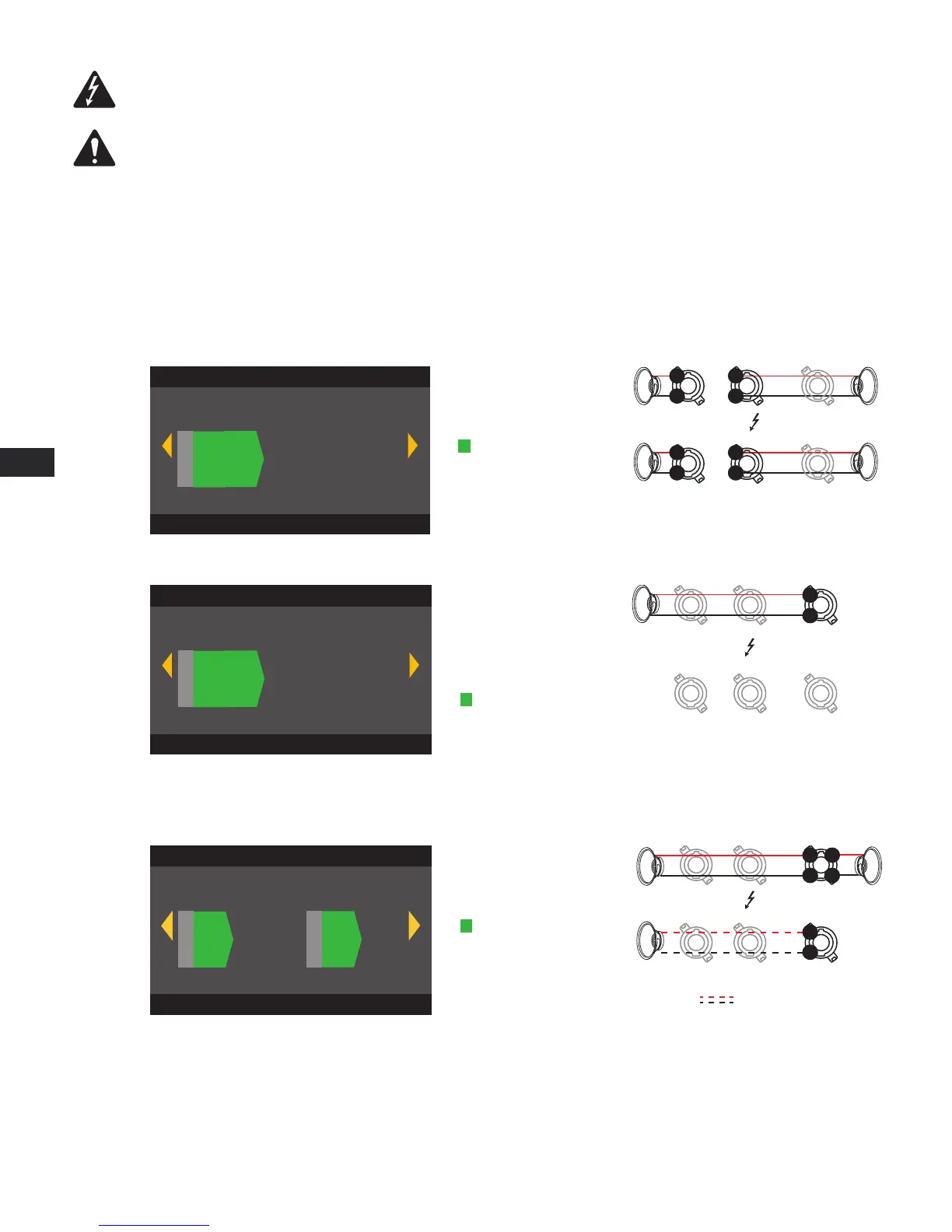

One-Channel Configurations
— Figure 14 —
F9: ABCD
F9: ABCD
ABCD Parallel
1
ABCD
A
C
B
D
X
Y
1-
1+
1-
1+
1+
1-
1-
1+
The following are electrically
the same point
A. B, C, and D, (1+)
A, B, C, and D, (1-)
You can use any, or all of the
connectors A, B, C, and/or D.
= Subwoofer
— Figure 15 —
F8: AB+CD
F8: AB+CD
AB in Parallel
Bridged with
CD in Parallel
1
AB+CD
B XA
C D Y
= Subwoofer
1+
1-
Two-Channel Configurations
— Figure 16 —
F6: A+B C+D
F6: A+B C+D
A+B Bridged
C+D Bridged
The following are electrically
the same point
X (2+) and Y (1+)
X (2-) and Y (1-)
Optional
1
A+B
3
C+D
A B X
= Subwoofer
C D Y
1+
1-
2+
2-
1+
1-
