QSC PLD4/2 User Manual

16
EN EN
TD-000368-00-A

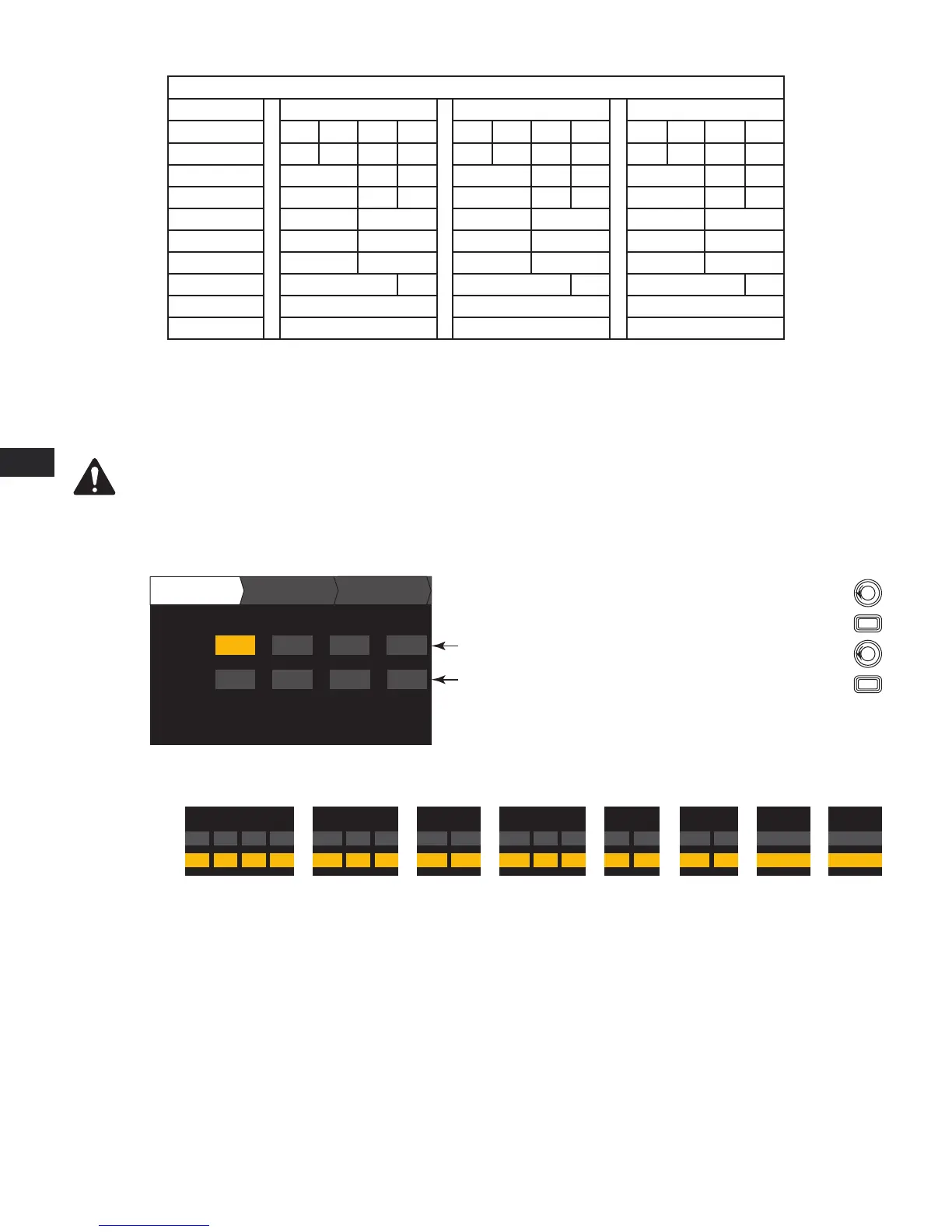

PLD 4.5 — Total Power: 5000W
8Ω Load 4Ω Load 2Ω Load
Configuration
A B C D A B C D A B C D
4 CH (A B C D) 1150 1150 1150 1150 1250 1250 1250 1250 625 625 625 625
3 CH (AB C D) 1200 1150 1150 2250 1250 1250 2100 625 625
3 CH (A+B C D) 2250 1150 1150 1150 1250 1250 625 625 625
2 CH (AB CD) 1200 1200 2250 2250 2100 2100
2 CH (AB C+D) 1200 2250 2250 1150 2100 625
2 CH (A+B C+D) 2250 2250 1150 1150 625 625
2 CH Alt (ABC D) 1150 1150 2400 1250 4100 625
1 CH (ABCD) 1150 2300 4200
1 CH (AB+CD) 4200 4250 2250
— Table 3 —
Preset Wizard
NOTE: The power levels shown in this procedure are taken from the PLD4.3 unless indicated otherwise. PLD4.2 will show less power
and PLD4.5 will show greater power.
HOME > PRESETS > PRESET WIZARD > ENTER
Step 1 — Adjust Impedance and Power
OUTPUTS SPEAKERS SAVE
A B C D
Output:
8.0 - - - - - -
Imped:
625 - - - - - -
Power:
Remaining Power Available: 1875 W
Enter Load Profile (Impedance and Power)
Default = 8 Ω
Default = min. for amp
Adjust Impedance based on
the total loudspeaker load
connected to the channel.
Scroll to select (Imped or Power)
To edit, press
ENTER
Repeat for remaining
output channels
To confirm, press
ENTER
Turn to adjust parameter
Impedance and Power
are dynamically linked
for adjustments.
— Figure 25 —
Possible Output Mode Combinations using the Preset Wizard
Modes: A B = Separate Channels / A+B = Bridge Mode / AB = Parallel Mode
* Precentages are used to represent the power for different amplifier models.
- - -
B
25%
A
- - -
25%
D
- - -
25%
C
- - -
25%
AB
- - -
50%
D
- - -
25%
C
- - -
25%
CD
- - -
50%
AB
- - -
50%
A+B
- - -
50%
D
- - -
25%
C
- - -
25%
D
- - -
25%
ABC
- - -
75%
ABCD
- - -
100%
AB + CD
- - -
100%
A+B
- - -
50%
C+D
- - -
50%
*
