2
TD-000351-00-E
EN
Inputs

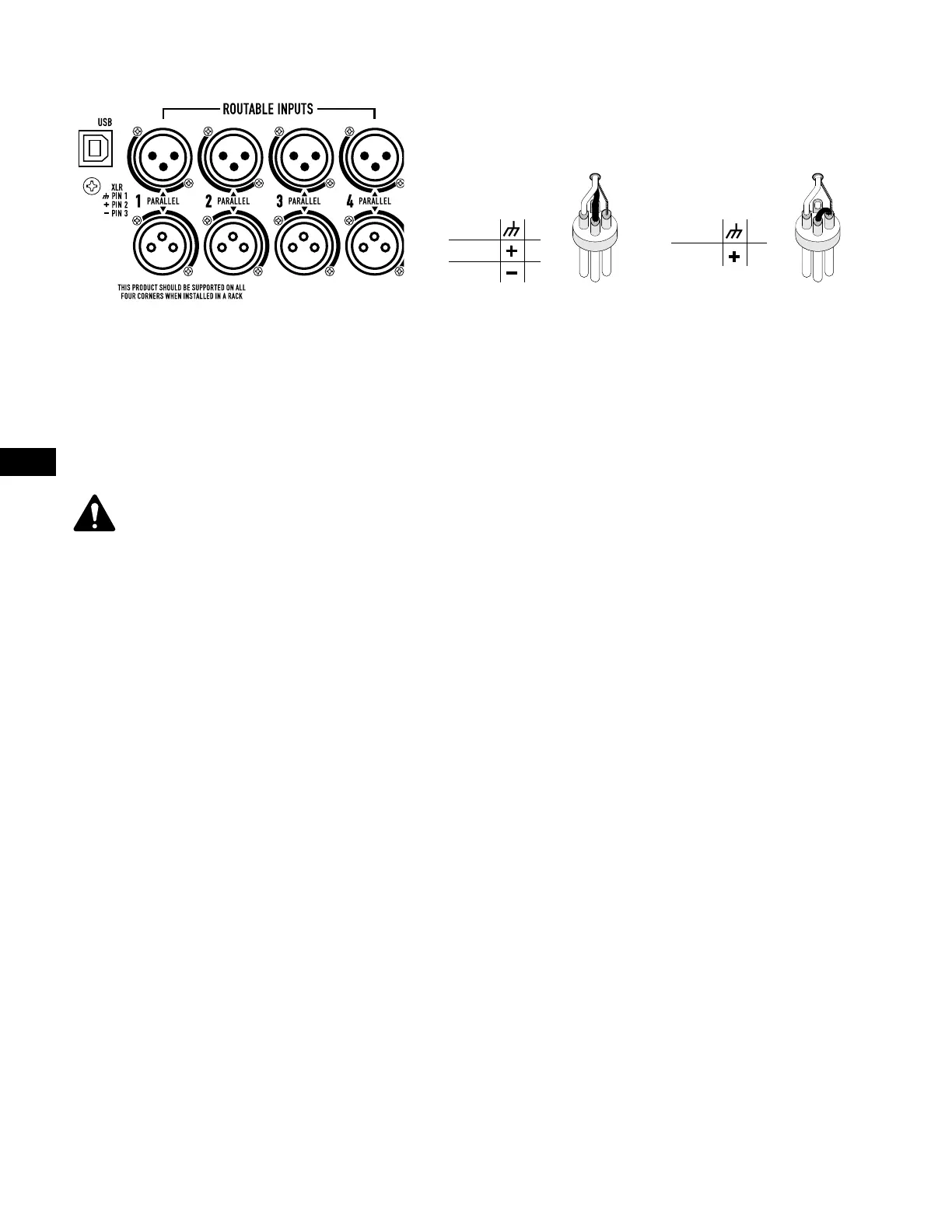

— Figure 2 —
— Figure
1
3
2
Balanced
Inputs
1
Ground
3
Negative
2
Positive
3 — — Figure
Unbalanced
Inputs
1+3
Ground
2
Positive
1
3
2
4 —
The audio inputs are four female XLR connectors labeled 1 through 4; any one can be routed to one or more outputs. The inputs have an impedance
of 10 kΩ balanced or unbalanced, and a selectable sensitivity of either +4 or +14 dBu (1.23 V rms or 3.9 V rms). The four male XLR connectors are in
parallel with the female connectors for daisy chaining signals to the inputs of other amplifiers.
1. Make sure your audio source devices are turned off.
2. Connect the audio sources to the female XLR connectors. (Figure 2)
NOTE:
On the PLD Series amplifies, each input's signal is routable to any of the the output channels. Make sure that your input
connections match your configuration of the amplifier.
