Outputs

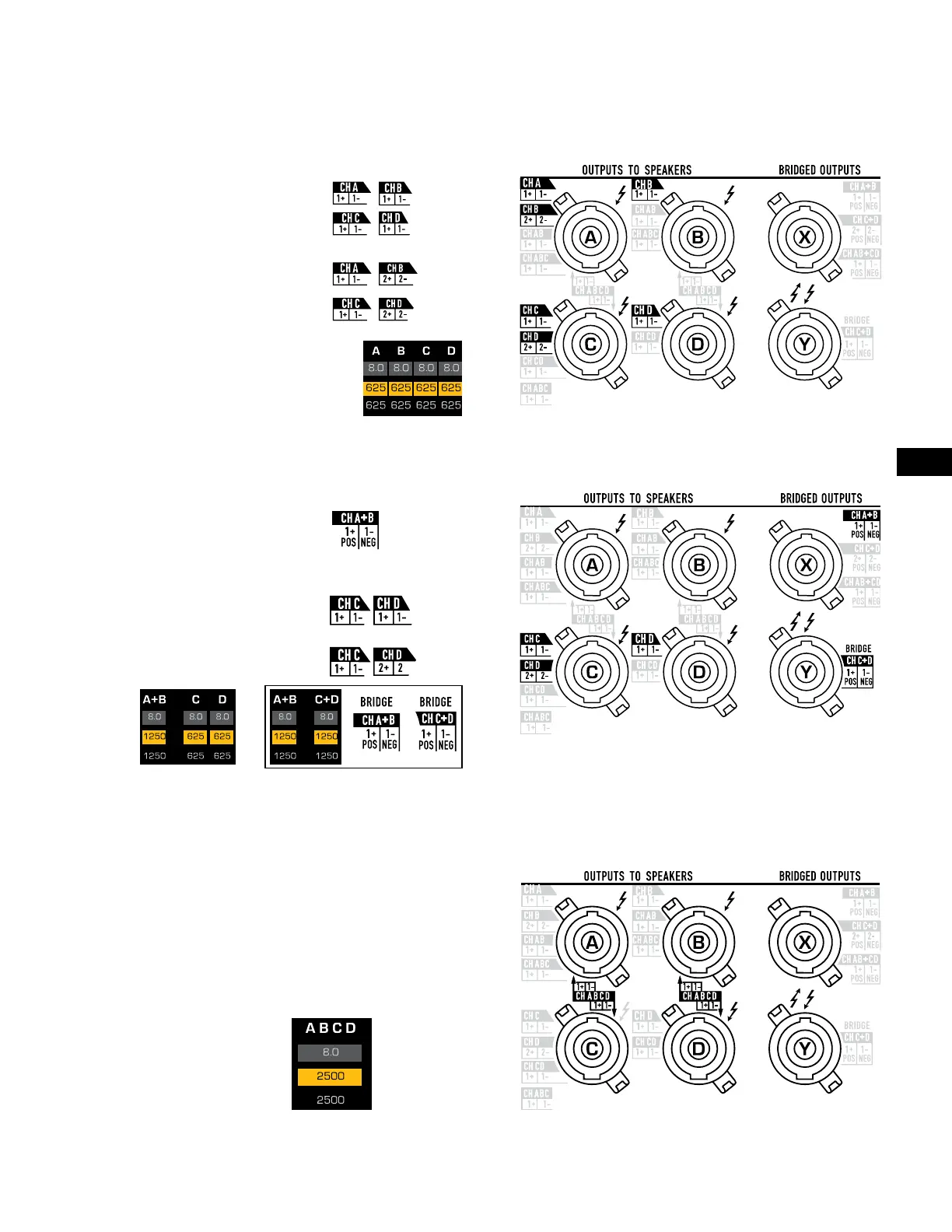

The PLD amplifiers have four configurable outputs. You can set power, combine outputs (bridged and parallel), and adjust the DSP for each one. The
output connections are enabled by relays, and they follow the configuration selected by the user. Use Figures 5 through 7 as references for wiring the
loudspeakers.
— Figure 5 —
— Figure 6 —
— Figure 7 —
Separate Channels (A B C D)
Up to four separate loudspeaker loads
Use up to four two-wire cables; connect to
• 1+/1- on outputs A through D as needed
Bi-amp operation
Use four-wire cables; connect to
• 1+/1- (CH A) and 2+/2- (CH B) on
output A
• 1+/1- (CH C) and 2+/2- (CH D) on
output C
Bridged (A+B) and Separate (C D) Channels
Bridged (A+B)
Use two-wire cable; connect to
• 1+/1- on output X
Separate C & D
Use two-wire cables; connect to
• 1+/1- (CH C) on output C
• 1+/1- (CH D) on output D
Bi-amp C and D
Use four-wire cable; connect to
• 1+/1- (CH C) and 2+/2- (CH D) on
output C
Parallel Channels (ABCD)
Multiple parallel loudspeaker loads
Use up to four two-wire cables; connect to
• 1+/1- on outputs A through D as needed
Single loudspeaker load
Use two-wire cable; connect to
• 1+/1- on output A, B, C, or D
