Rack Mounting
Use four screws and washers to mount the amplifier to the
equipment rack rails. To use the amplifier outside a rack,
attach the self-adhesive rubber feet to the bottom.
For portable, mobile, or other applications where the rack
assembly may be moved, we strongly recommend support-
ing the rear of the amplifier. A rear rack ear kit is available
from QSC’s Technical Services Group.
The cast front panel includes finger grips at each end, mak-
ing lifting and setting into the rack more comfortable.

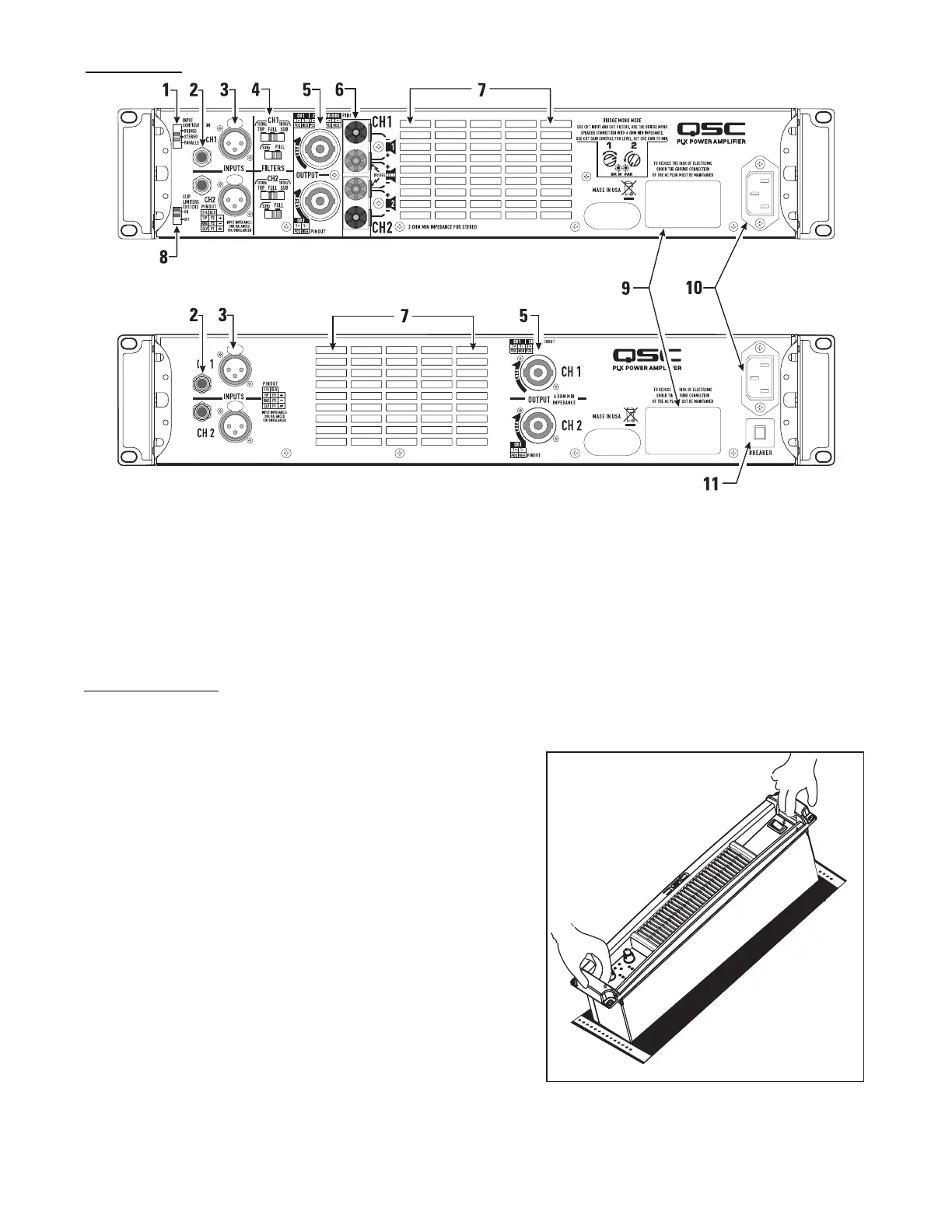

1- Input Configuration switch
2- 1/4-inch TRS input connectors
3- XLR female input connectors
4- Low Frequency Filter switches
5- Speakon output connectors
6- Binding post output connectors
7- Cooling air inlet vents
8- Clip Limiter switch
9- Serial number plate
10- IEC-type AC mains inlet
11- Circuit breaker, resettable
Rear Panel
The front panel casting includes features for
finger-lifting and gripping at each end.
