Front Panel – Core 110f

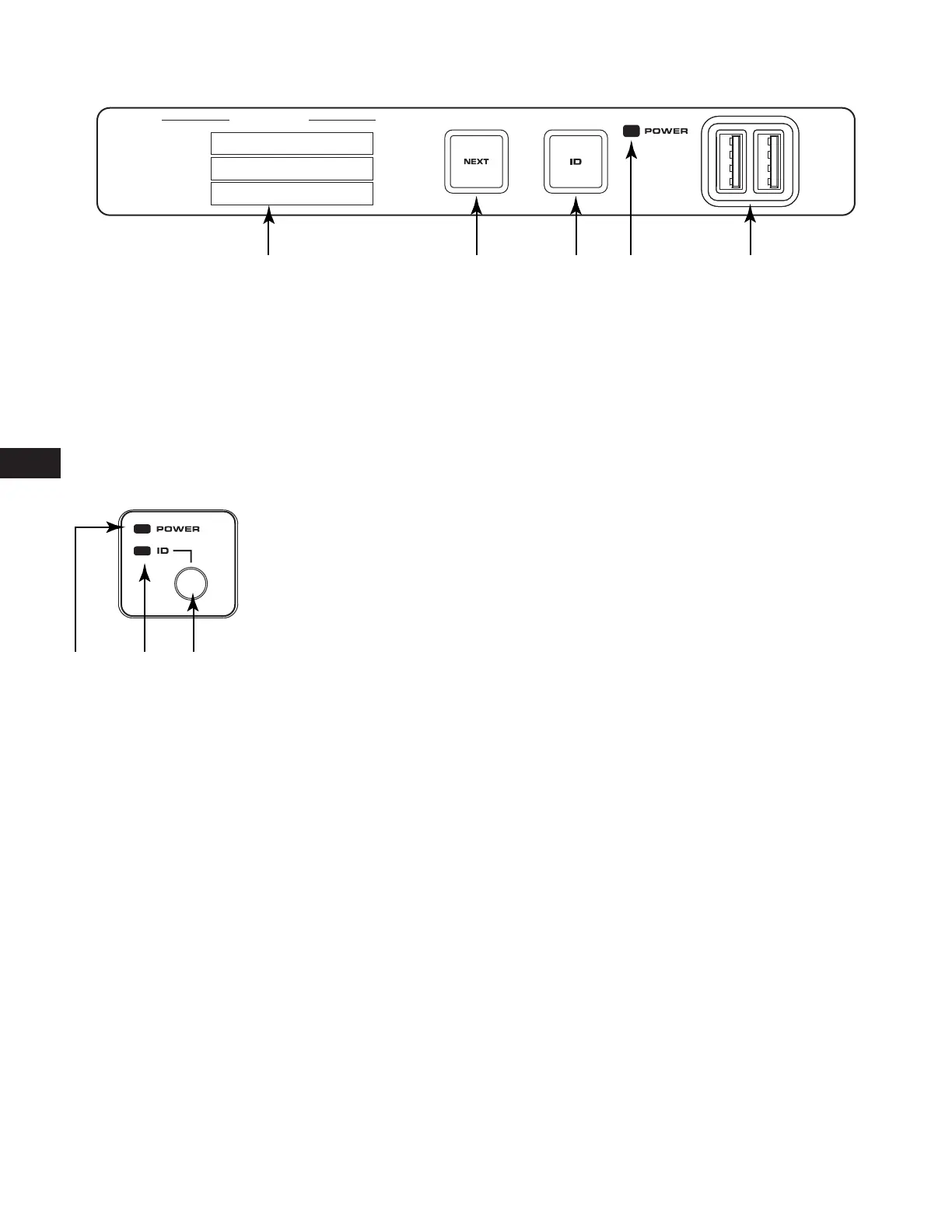

— Figure 1 —
1 2 3 54
DEVICE:
DESIGN:
STATUS:
DESIGN STATUS
<Core Name>
<Design Name>
<Status>
1. OLED Display – displays information about the core's settings
andstatus.
2. Next button – cycles through the information pages
3. ID button – locates the Core in Q-SYS Designer GUI and
Configurator
4. Power LED – illuminates blue when the Core is on
5. USB Type A Host connectors (2)
Front Panel – Core 110f v2
1 2 3
— Figure 2 —
1. Power LED – Illuminates blue when the Q-SYS Core 110 Series processor is powered on
2. ID LED – LED blinks when placed into ID Mode via ID Button or Q-SYS Designer Software
3. ID Button – Locates the Q-SYS Core 110 Series processor in Q-SYS Designer Software
