There is a total of 8 slots that can accomodate any combination of Q-SYS I/O Cards that are Type 2 format. The status
for these cards are shown on the front panel by pressing the NEXT button shown in Figure 3.
Mic/Line In H.P. card Status (CIML4-HP)
Refer to Figure 6 (Mic/Line In H.P. card screen shown.)
The Mic/Line In H.P. card status screen shows the Mute
state, Signal presence, Clip indication and +48V state of each
of the 4 input channels.
• Mute – Displays a "muted loudspeaker" when the channel
is muted.
• Signal – Displays a solid circle when there is a signal
present on the associated channel.
• Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.
• +48V - Displays a sold circle when phantom power is active on the associated channel.
Mic/Line In Std. card Status (CIML4)
Refer to Figure 7 (Mic/Line In Standard card screen shown.)
The Mic/Line In Standard card status screen shows the Mute
state, Signal presence, Clip indication and +48V state of each
of the 4 input channels.
• Mute – Displays a "muted loudspeaker" when the channel
is muted.
• Signal – Displays a solid circle when there is a signal
present on the associated channel.
• Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.
• +48V - Displays a solid circle when phantom power is active on the associated channel.
Line Out card Status (COL4)
Refer to Figure 8 (Line Out card screen shown.)
The Line Out card status screen shows the Mute state, Signal
presence, and Clip status of each of the 4 output channels.
• Mute – Displays a "muted loudspeaker" when the channel
is muted.
• Signal – Displays a solid circle when there is a signal
present on the associated channel.
• Clip – Displays a solid circle under the channel having an output signal over driving the associated channel output.

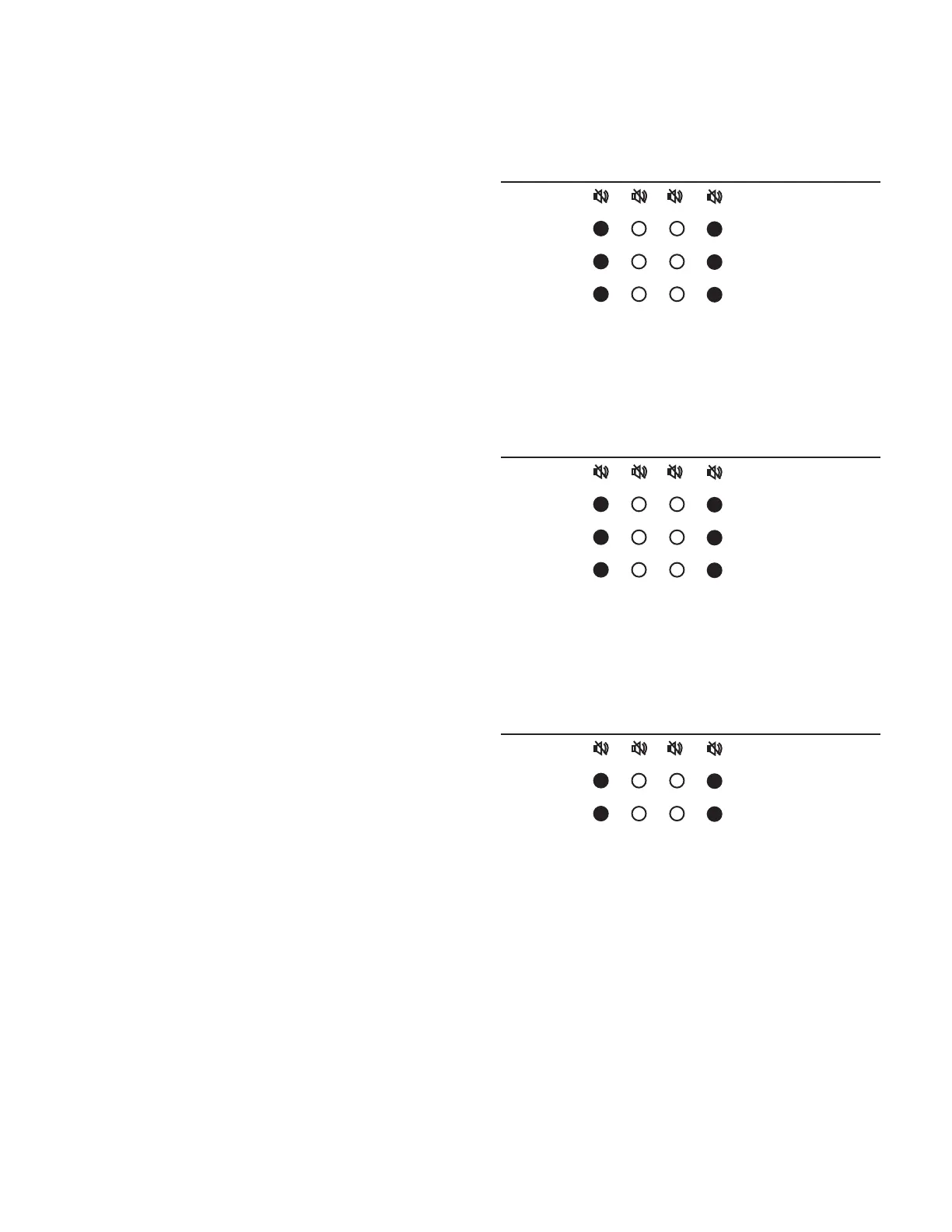

— Figure 6 —
Mic/Line In - H.P.
Mute
Signal
+48V
1
2 3 4
Slot
Clip
— Figure 7 —
Mic/Line In - Std
Mute
Signal
+48V
1
2 3 4
Slot
Clip
— Figure 8 —
Line Out
Mute
Signal
1
2 3 4
Slot
Clip
