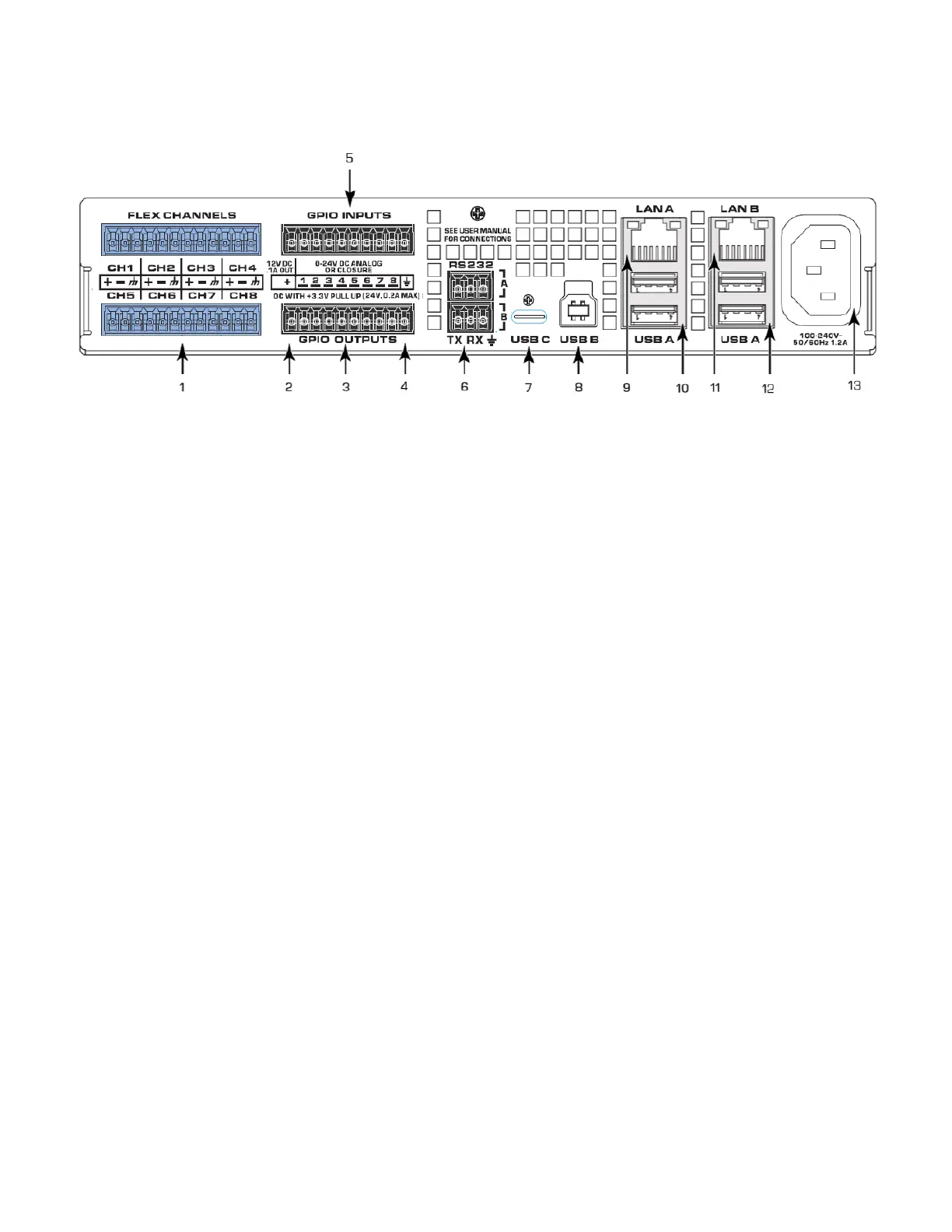

Rear Panel
(Note: Q-SYS Core 8 FLEX shown. Q-SYS Core NANO does not include FLEX channels or GPIO)
— Figure 1 —
1. FLEX Channels – eight user-configurable analog audio
input/output channels, phantom power on inputs.
2. +12 VDC – up to 0.1A source. Connector pins "+".
3. GPIO Outputs – 8 outputs, open collector (24V, 0.2A max.)
with p/u to +3.3V (lower pins 1 – 8).
4. GND – earth ground. Connector pins with ground symbol.
5. GPIO Inputs – 8 inputs, 0-24V analog input or contact closure
(upper pins 1 – 8).
6. RS232 – COM x2. 3-position, 3.5mm connector.
7. USB Type C – USB 3.1, Host port or Device port (Device port
functionally available when USB Type B not in use).
8. USB Type B – USB 3.0, dedicated Device port.
9. LAN A – RJ45, 1000 Mbps, primary, Q-LAN, AES67, Dante,
VoIP, WAN streaming, control.
10. USB Type A – USB 3.0 x2, Host ports.
11. LAN B – RJ45, 1000 Mbps, backup, Q-LAN, AES67, Dante, VoIP,
WAN streaming, control.
12. USB Type A – USB 3.0 x2, Host ports.
13. AC mains – IEC 60320, C14 receptacle, universal power in
(100V – 240V, 50/60 Hz).
