Using Q-SYS with Dolby® Atmos

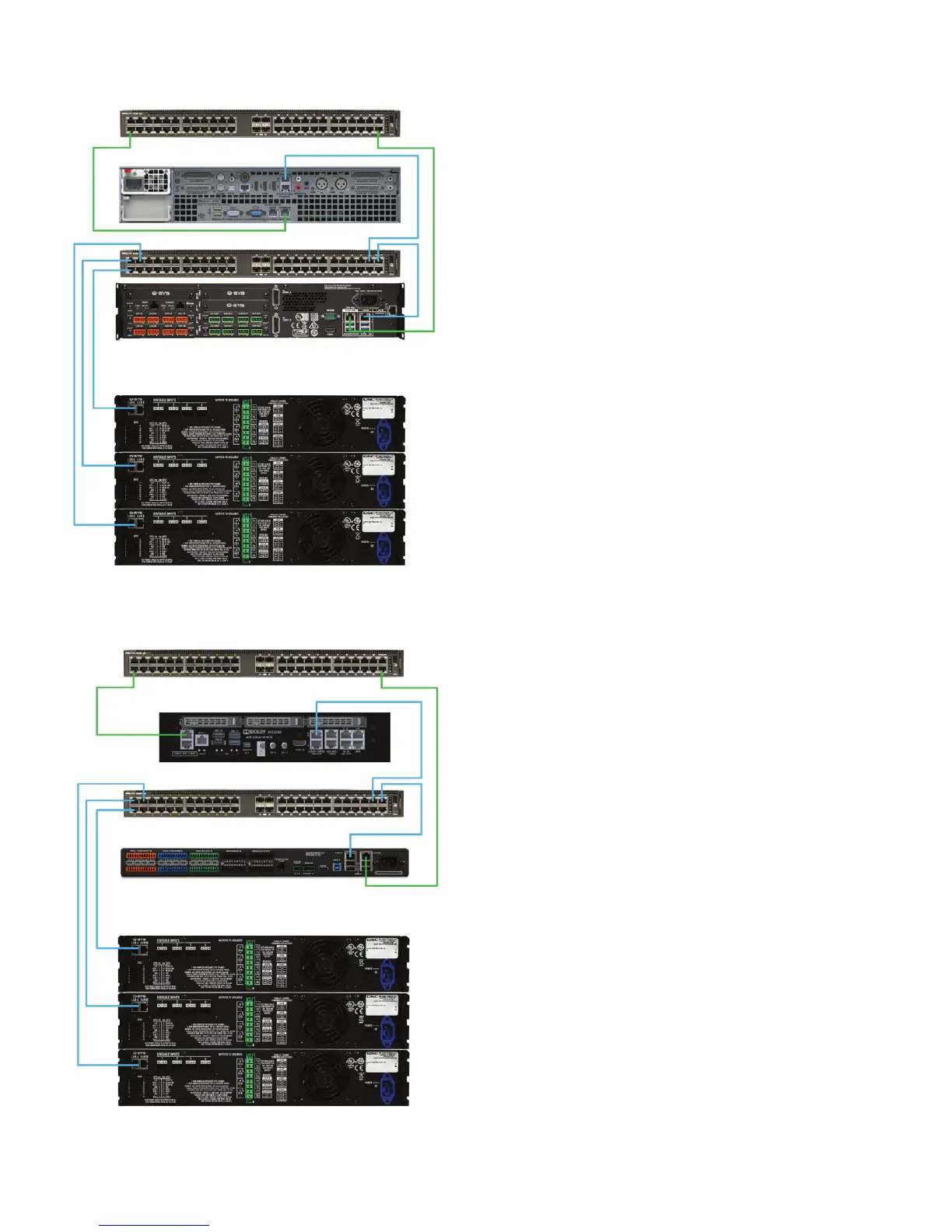

Atmos setup case 1.b
This is similar to Case 1.a, but with a Core 510c instead of a
Core 110c. It comprises these components:
• Dolby CP850 processor
• Q-SYS Core 510c
• QSC DPA-Q power amplifiers
• Managed switches separating Q-SYS and management
into separate VLANs. Use separate switches for each
LAN if you do not have the IT support resources available
to set up VLANs on managed switches.
Blue—Q-SYS network
Green—Management network
Atmos setup case 1.c
Here, the Dolby CP850 is integrated into the Dolby IMS3000
media server, with AES67 streaming configured within
the Dolby web interface. The system comprises these
components:
• Dolby IMS3000 media server
• Q-SYS Core 110c or Core 510c
• QSC DPA-Q power amplifiers
• Managed switches separating Q-SYS and management
into separate VLANs. Use separate switches for each
LAN if you do not have the IT support resources available
to set up VLANs on managed switches.
Blue—Q-SYS network
Green—Management network
