28 29

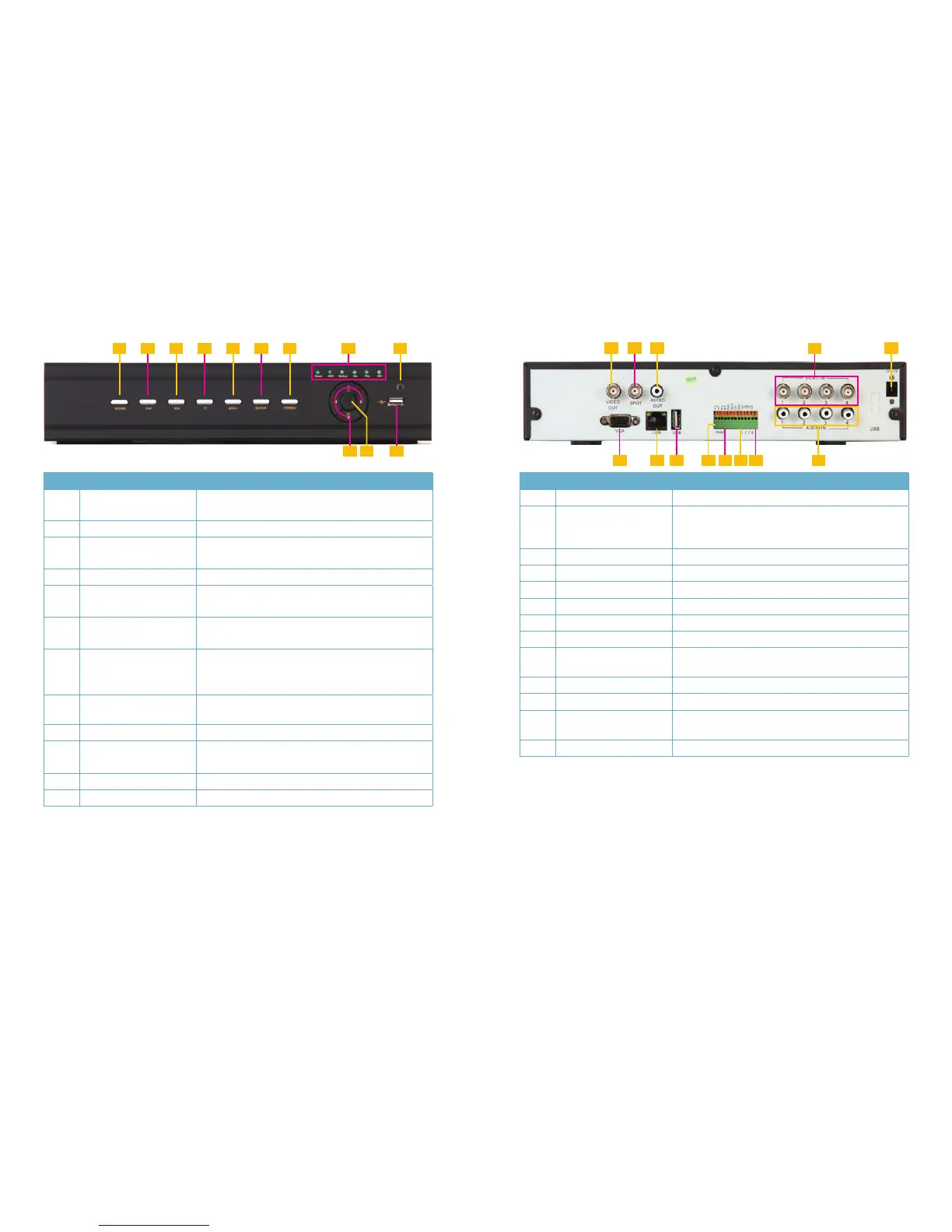

QT504
FRONT PANEL
BACK PANEL
ITEM NAME FUNCTION
1
RECORD
Begins manual recording
Controls Focus in PTZ mode
2
PLAY
Begins playback
3
REWIND
Rewinds video
Controls camera speed in PTZ mode
4
FAST FORWARD
Advances playback speed
5
MENU/+ Opens the Main Menu
Increases the value in Setup mode
6
BACKUP/-
Opens Backup Menu
Decreases the value in Setup mode
7
STOP/ESC
Ends video playback.
Exits current interface or status
Switches video output mode.
8
INDICATOR LIGHTS Shows status of the DVR Functions and the Hard
Drive
9 IR RECEIVER Receives signals from remote control
10 DIRECTION Selects multi-screen viewing mode
Navigates through selections in menus
11 RETURN Confirms selection
12 USB PORT Used for external USB backup devices.
ITEM NAME FUNCTION
1 VIDEO OUT BNC connector for TV or monitor
2 SPOT OUT Connect to another monitor as an auxiliary output
channel. This monitor will only display video and will
have no menu access.
3 AUDIO OUT Audio output for amplified speaker
4 VIDEO IN BNC connectors for up to 4 cameras
5 DC IN Power input for 12V DC power supply
6 VGA PORT VGA output for 19” or larger monitor
7 NET Network (ethernet) port
8 USB PORT For the USB mouse
9 PTZ Connections for Pan-Tilt-Zoom speed dome cameras.
Y = “+” Z = “-”
10 K/B Connector for a PTZ keyboard
11 +5V and GND +5V and grounding
12 ALARM IN/OUT 4 Channel input and output for external sensors and
alarms
13 AUDIO IN 4 channels of audio input
1 2 3 4 5 6 7 8 9
10 1211
2 3 5
4
1
6 7 8 9 10 11 12 13
