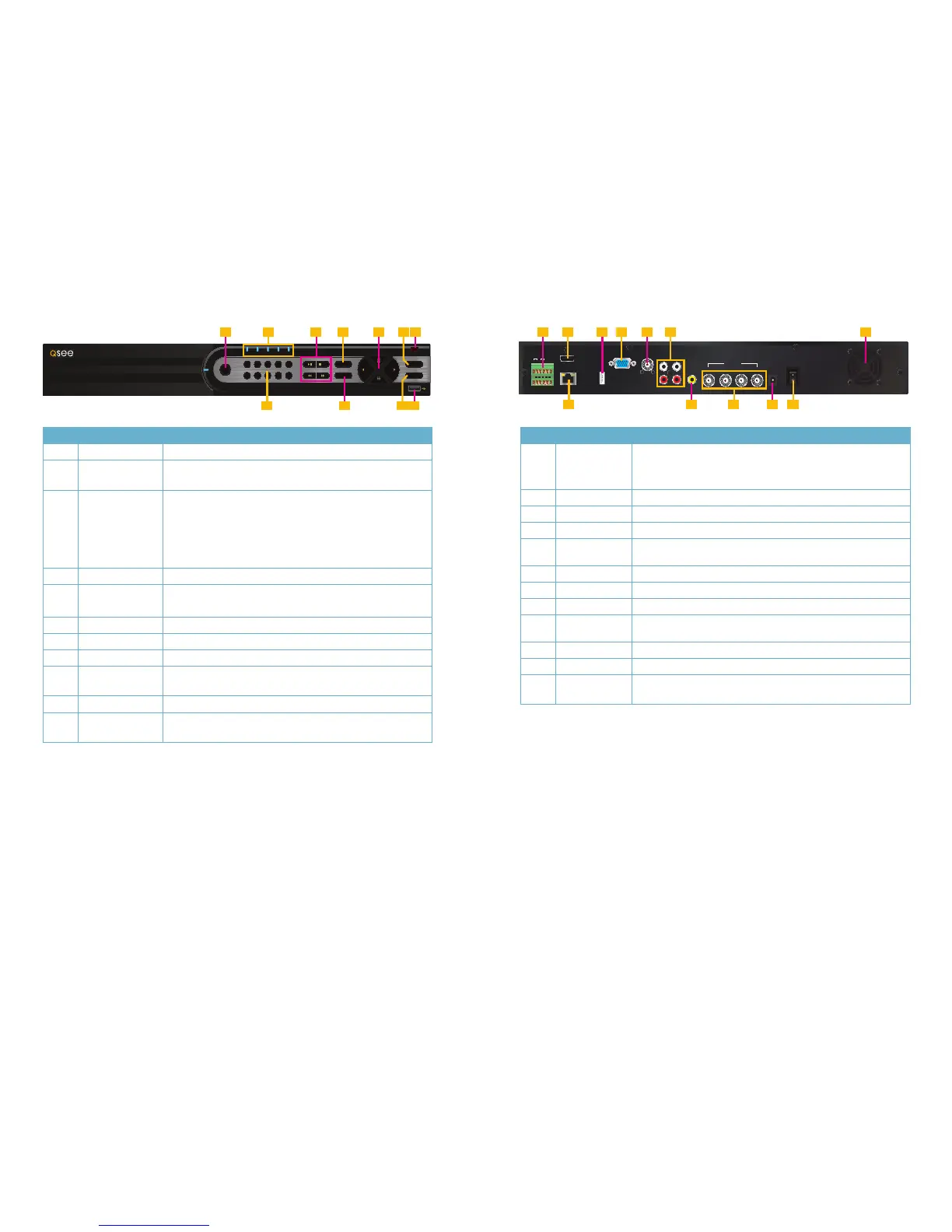

FRONT PANEL
REAR PANEL
QT704 QT714
ITEM NAME FUNCTION
1 RECORD Manually begins recording
2 LED
INDICATORS
Show status of power, HDD, record, etc.
3 VIDEO
PLAYBACK
CONTROLS
PLAY/PAUSE - Launches PLAYBACK window, Starts and
pauses video.
STOP/ESC - Quits PLAYBACK mode. Exits current window
Switches video output mode (press and hold 10 seconds)
REWIND - Reverses playback direction
FAST FORWARD - Changes playback speed.
4 MENU/+ Increase the value in SETUP/Enter menu in LIVE VIEW
5 DIRECTION/
MULTISCREEN
1. Navigate through on-screen options
2. Change screen display mode between 1, and 4 channels
6 ENTER Confirm selection
7 IR RECEIVER Receives signals from remote control
8
NUMBER PAD Enter channel numbers.
9 -/BACKUP Decrease the value in SETUP/Enter backup mode in LIVE
VIEW
10 SEARCH Enters Search Mode
11 USB USB port to connect USB flash or external hard drives to
update firmware or back up recordings
ITEM NAME FUNCTION
1 PTZ & ALARM
INTERFACE
Connections for Pan-Tilt-Zoom speed dome cameras. Y = “+” Z
= “-”
Input ports for 4 alarms. One output port for external alarm
2 HDMI HDMI video output
3 USB PORT Connect USB mouse
4 VGA PORT Video output for connecting to monitor at least 19” in size
5 CVBS (Video
Out)
Video output for connecting to TV (BNC) or monitor
6 AUDIO IN 4-Channel audio input for cameras equipped with audio
7 FAN Cooling fan exhaust port. This should not be blocked.
8 LAN Network (ethernet) port
9 AUDIO
OUTPUT
Connection for audio output – connect to an amplified speaker
10 VIDEO IN Video input from up to 4 HD SDI cameras
11 DC +12V Power input
12 POWER
SWITCH
Use to turn on the DVR as well as to turn off after powering
down from within the GUI
