B. Cup Horns
After the legs are attached, rotate the enclosure 180
0
so it is standing on the legs.
Insert the converter cable up through the hole in the bottom of the box before attaching it to
the converter and cup horn. Slowly lower the assembly into the holder making sure the cable
is not crimped.
There is a capped port on either side of the enclosure for cold water circulation during
sonication. See Section 14 for Cup Horn instructions.

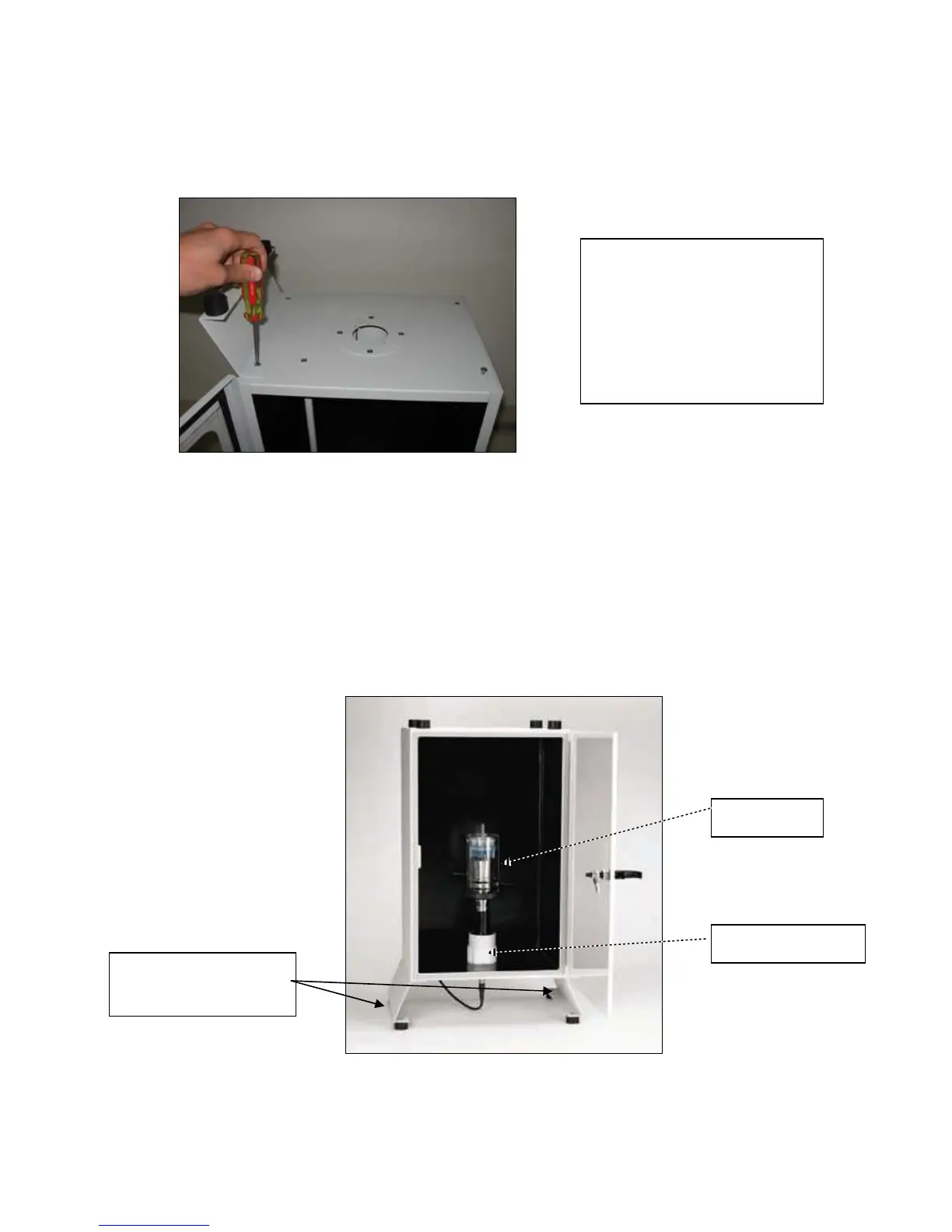

Proper set up of Cup Horn
corner of the top of sound
enclosure.
Attach the 2 legs that were
shipped inside the enclosure
with the rubber feet facing
upwards.
Legs
Cup Horn
To Next Page
