Quadra-Fire 3100-I User Manual

3100-I ACT WOOD INSERT
Page 4 September 1, 2008
R
250-6381D

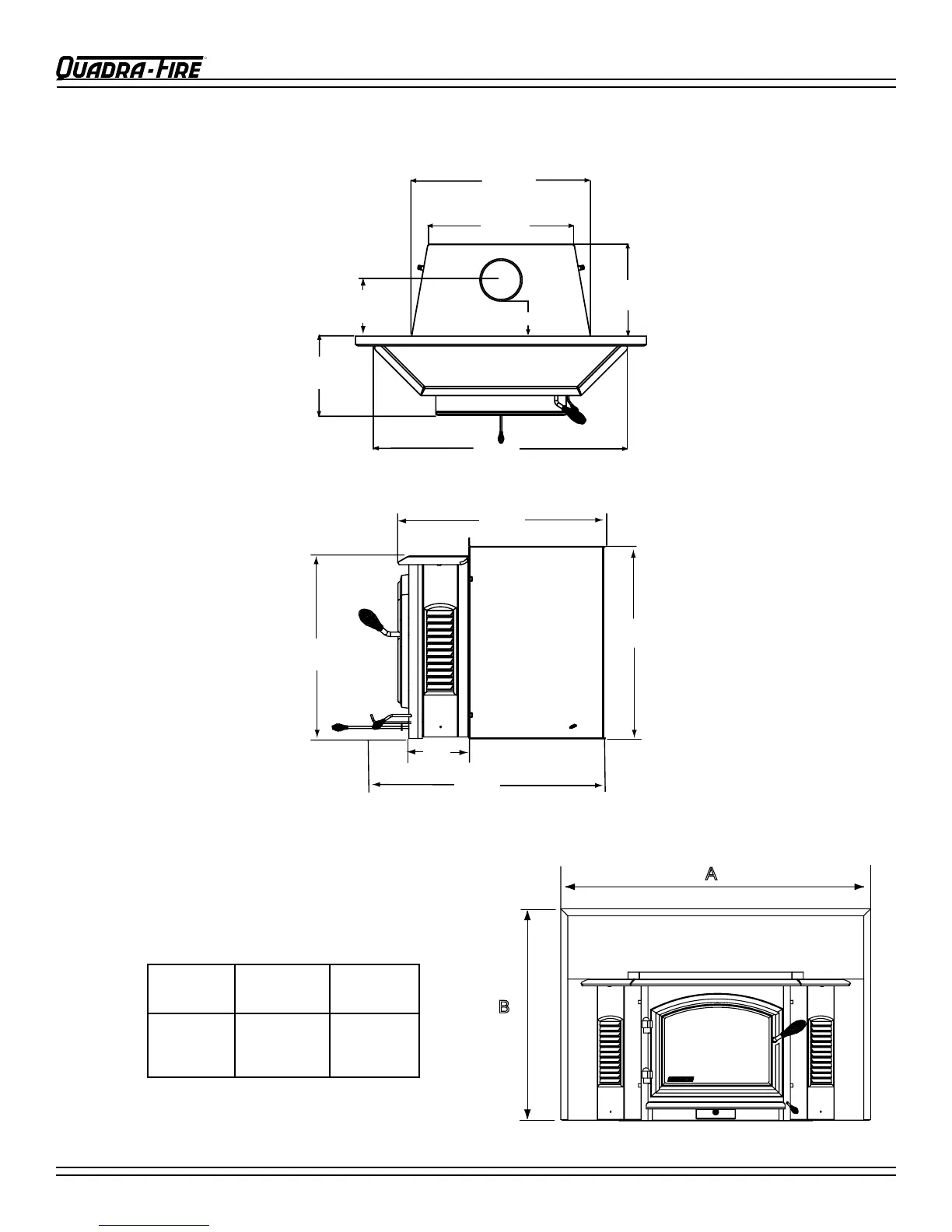

INSERT DIMENSIONS
TOP VIEW
SIDE VIEW
FRONT VIEW
A
B
C
L
27-7/16"
(697mm)
14-1/8"
(359mm)
38-7/8"
(987mm)
12-3/16"
(310mm)
8-5/8"
(219mm)
5-3/8" (137mm)
22-7/16"
(570mm)
23-1/8"
(587mm)
21-1/2"
(546mm)
20-3/8"
(518mm)
26-1/4"
(667mm)
7-7//8"
(200mm)
STD 44-5/8” 30-1/2”
Large 50-1/2” 34-1/2”
Panel
Size
A
B

Quadra-Fire 3100-I Specifications
